Customized 0.3-0.8mm Galvanized Color Steel Metal Roof Panel 762mm Thin Corrugated Roll Forming Machine For Africa
G550 762mm Thin Corrugated Roll Forming Machine is specifically designed for the production of thin corrugated metal sheets with a width of 762mm, using G550-grade steel. This machine is particularly suitable for applications in Africa where thin corrugated sheets are commonly used for roofing and cladding purposes.
Common Corrugated roofing sheet rolling thickness from 0.15-0.4 mm, material use G550 GI ( Galvanized Steel ) material
We sell lots of such Corrugated roofing roll forming machine to Guyana, South Africa, Tanzania, Nigeria, India etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size
| NO | Type | Barrel machine | Roll forming machine | |
|
1 |
Raw material | Type | PPGI or GI (G550) | Same |
| Feeding width | 2m / 2.6m / 3m / 4m | Any length | ||
| Thickness | 0.14-0.4 mm | Same | ||
|
2 |
Decoiler | Operation | Automatic | Same |
| Weight apacity | 5 Tons | Same | ||
| 3 | Cutting machine | Need cut to length | No need | |
| 4 | Main body | Working speed | 6-14 times/min | 10-20 m/min |
| Need labour | 4 person | 1 person | ||
| Machine work | Manually | Automatically | ||
| Whole line price | High price | Cheap price | ||

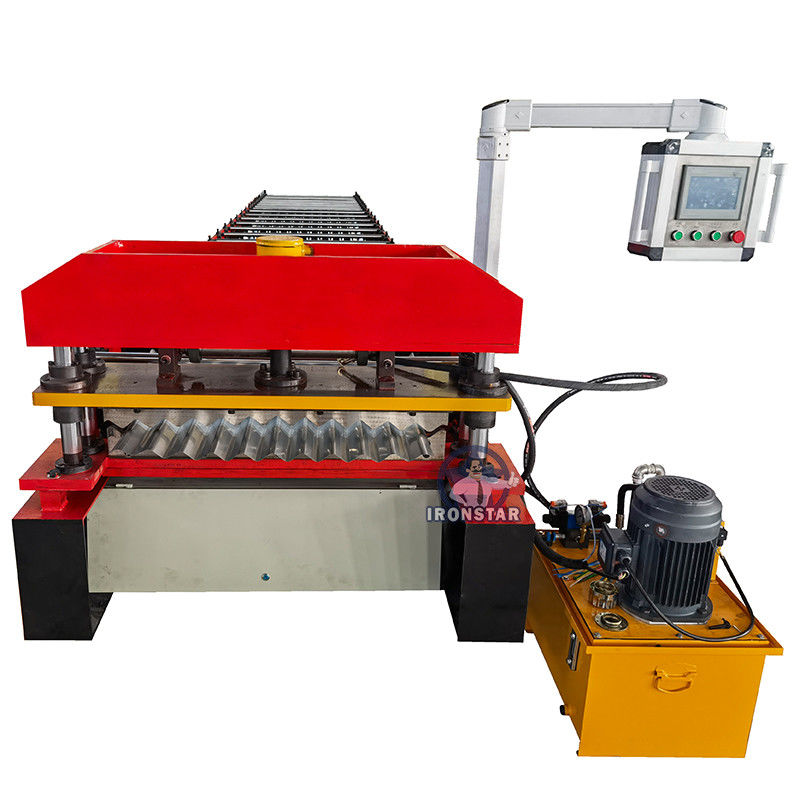

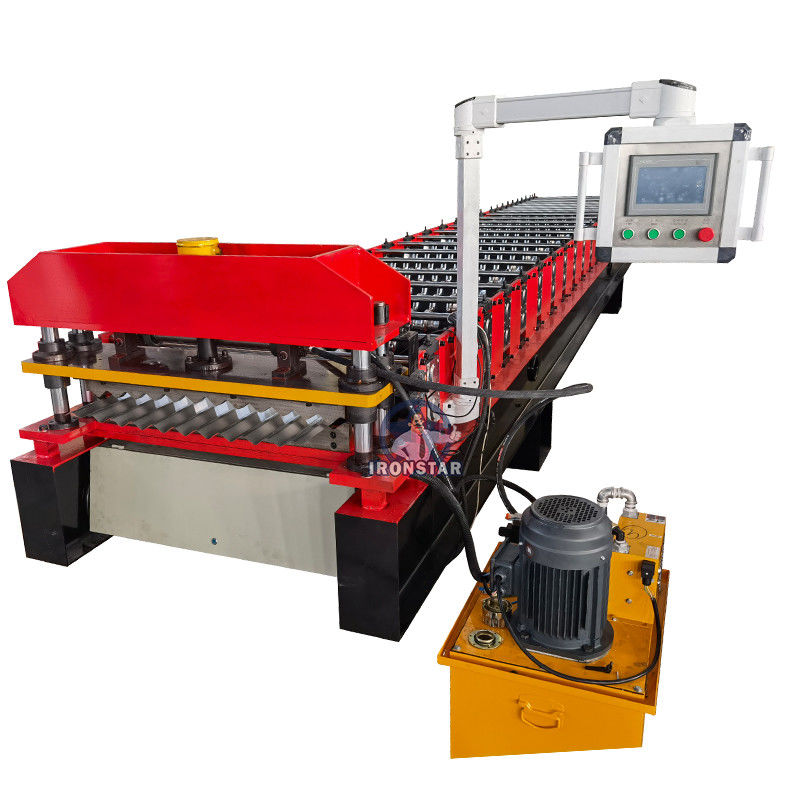

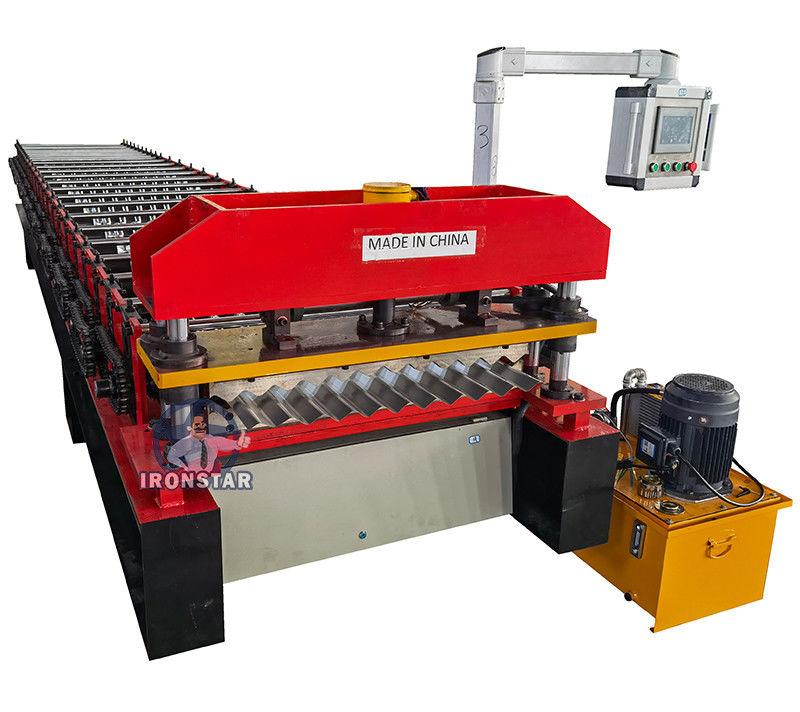

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |
Main body | Roller station | 23 rows |
| Diameter of shaft | 70 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | 360mm C-beam | ||
| Frame thickness | 16 mm | ||
| Machine size | About 10*1*1.5 m | ||
| Machine weight | About 5.5 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 8-20 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 5.5 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 5 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

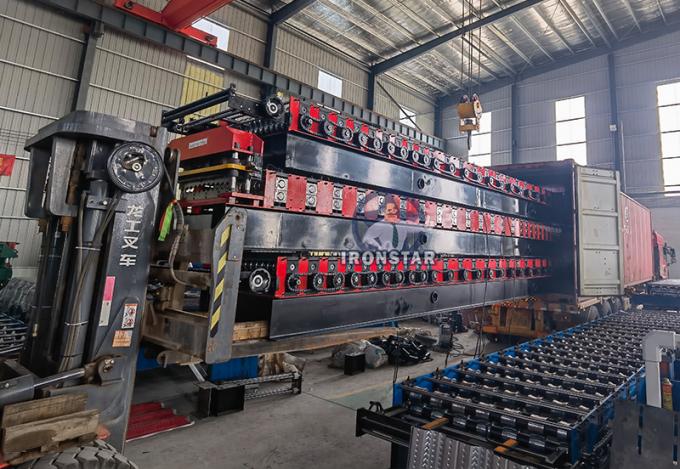

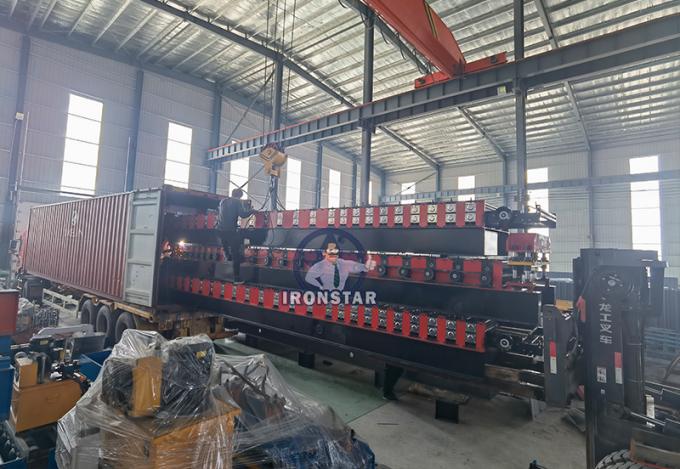

6 sets machine ship in 2 container
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
The G550 762mm Thin Corrugated Roll Forming Machine has various applications in the construction industry, particularly in Africa, where thin corrugated sheets are commonly used for roofing and cladding purposes. Here are some key applications of this machine:
Roofing: The machine produces thin corrugated metal sheets that are ideal for roofing applications in residential, commercial, and industrial buildings. The corrugated profile provides strength, durability, and efficient water drainage, making it suitable for different types of roofs.
Cladding: The thin corrugated sheets produced by this machine are also used for wall cladding purposes. They offer an attractive and durable exterior finish for buildings, providing protection against weather elements while enhancing the aesthetics.
Agricultural Structures: The machine's output of thin corrugated sheets is well-suited for agricultural structures such as barns, sheds, and storage facilities. These sheets offer a cost-effective and reliable solution for protecting agricultural equipment, livestock, and crops from the elements.
Temporary Structures: Thin corrugated sheets are often used in the construction of temporary structures like site offices, storage containers, and portable cabins. They provide a quick and efficient solution that is easy to assemble, transport, and disassemble as needed.
Industrial Applications: The machine's production of thin corrugated sheets finds applications in various industrial settings. These sheets can be used for cladding industrial buildings, manufacturing facilities, and warehouses, providing a durable and low-maintenance solution.
DIY Projects: The availability of thin corrugated sheets produced by this machine can also cater to do-it-yourself (DIY) enthusiasts and small-scale construction projects. The sheets can be utilized for projects such as garden sheds, carports, and fencing.
The G550 762mm Thin Corrugated Roll Forming Machine offers versatility and efficiency in producing thin corrugated sheets that are widely used in roofing, cladding, and other construction applications. Its output meets the specific requirements of the African market, where such profiles are commonly employed in various building projects.
