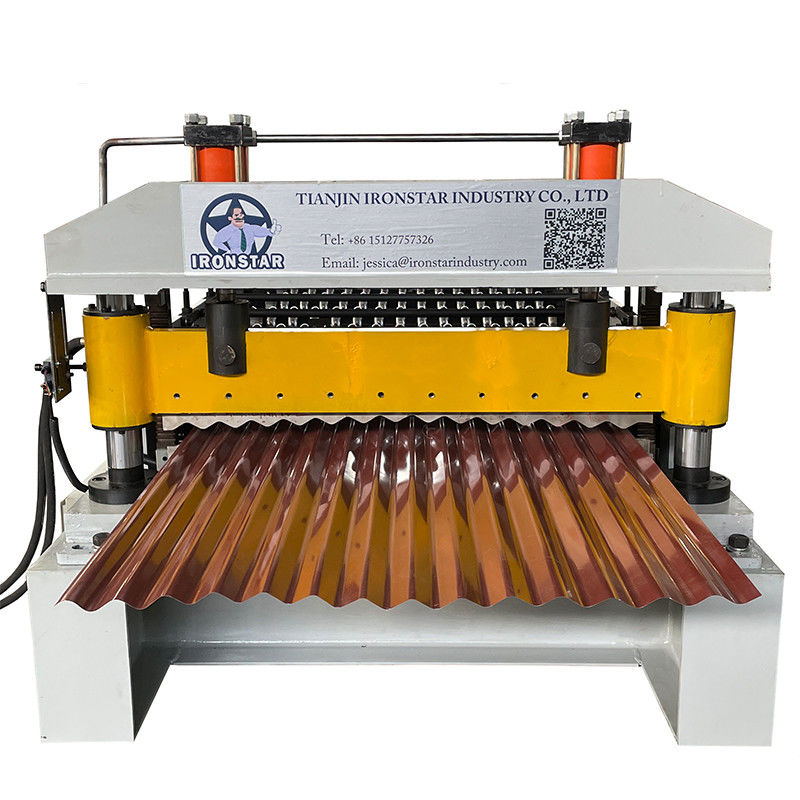

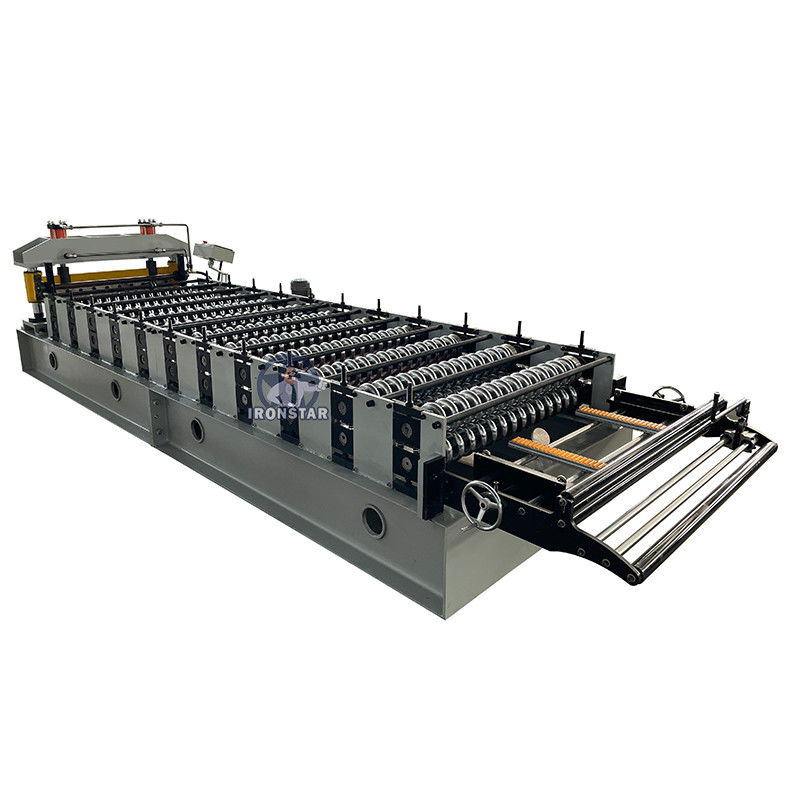

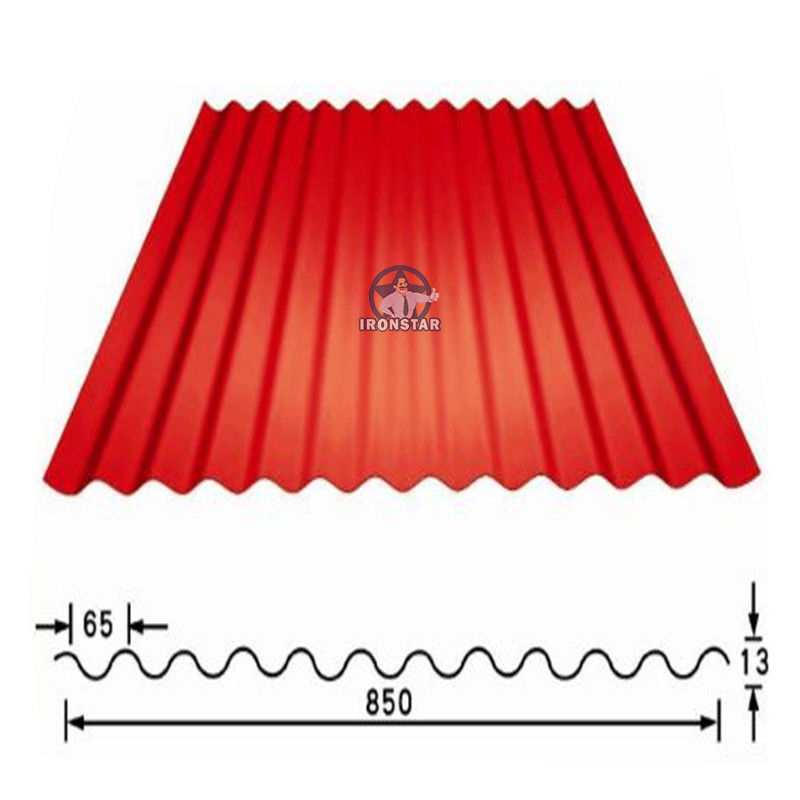

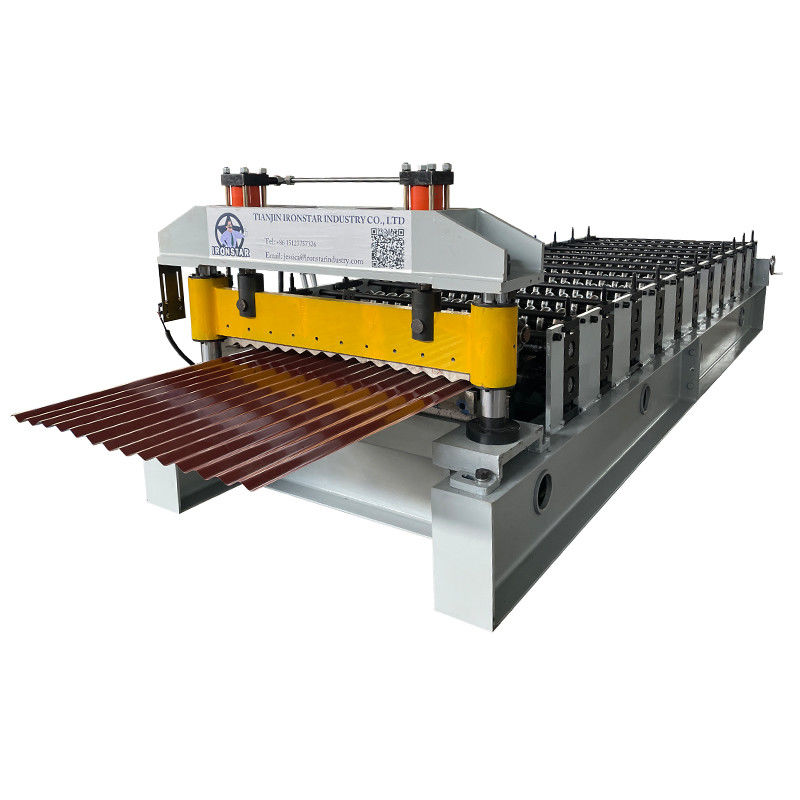

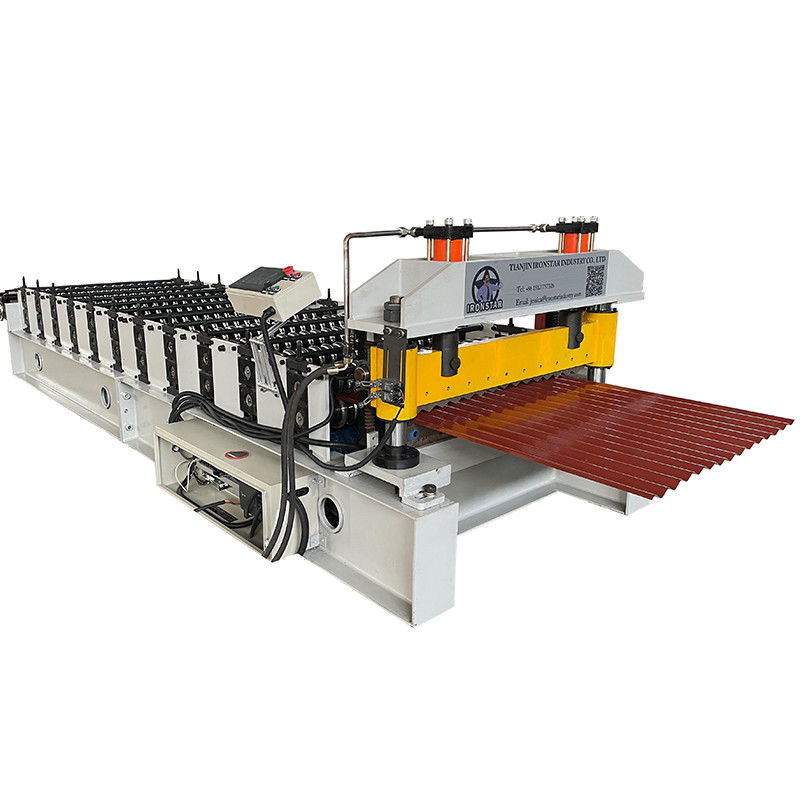

Customized 0.3-0.8mm Galvanized Color Steel Sheet 850mm Metal Roof panel Roll Forming Machine For Chile
Corrugated roofing roll forming machine is a specialized industrial machine used to manufacture corrugated metal roofing sheets. It is designed to efficiently and accurately shape metal coils or sheets into the distinctive corrugated profile commonly used in roofing applications.
Common Corrugated roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material
We sell lots of such Corrugated roofing roll forming machine to Guyana, South Africa, Tanzania, Nigeria, India etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |
Main body | Roller station | 11-13 rows |
| Diameter of shaft | 70 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | 360mm C-beam | ||
| Frame thickness | 16 mm | ||
| Machine size | About 5.8*1*1.5 m | ||
| Machine weight | About 4 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 8-20 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 5 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
Corrugated roll forming machines have various applications in the manufacturing and construction industries. Here are some common applications of corrugated roll forming machines:
Roofing Sheets: Corrugated metal roofing sheets are one of the primary applications of corrugated roll forming machines. These sheets are widely used in residential, commercial, and industrial buildings for their durability, weather resistance, and aesthetic appeal.
Wall Cladding: Corrugated metal sheets are also used as wall cladding in buildings. They provide structural support, insulation, and protection against external elements, while adding a decorative and industrial look to the building's exterior.
Agricultural Buildings: Corrugated metal sheets produced by roll forming machines are commonly used in agricultural buildings such as barns, sheds, and storage facilities. These sheets provide a cost-effective and durable solution for protecting livestock, equipment, and crops.
Fencing and Enclosures: Corrugated metal panels are utilized in fencing systems and enclosures to create secure boundaries for residential, commercial, and industrial properties. They offer strength, longevity, and a visually appealing appearance.
Industrial Applications: Corrugated metal sheets are used in various industrial applications such as warehouses, factories, and manufacturing facilities. They can be used for cladding, partition walls, roofing, and as structural components.
Transportation Industry: Corrugated metal sheets can be used in the transportation industry for manufacturing trailers, shipping containers, and truck bodies. They provide strength, durability, and protection for cargo.
Decorative Applications: Corrugated metal panels are also used in interior design and architectural applications for their unique visual appeal. They can be used for accent walls, ceilings, and artistic installations.
