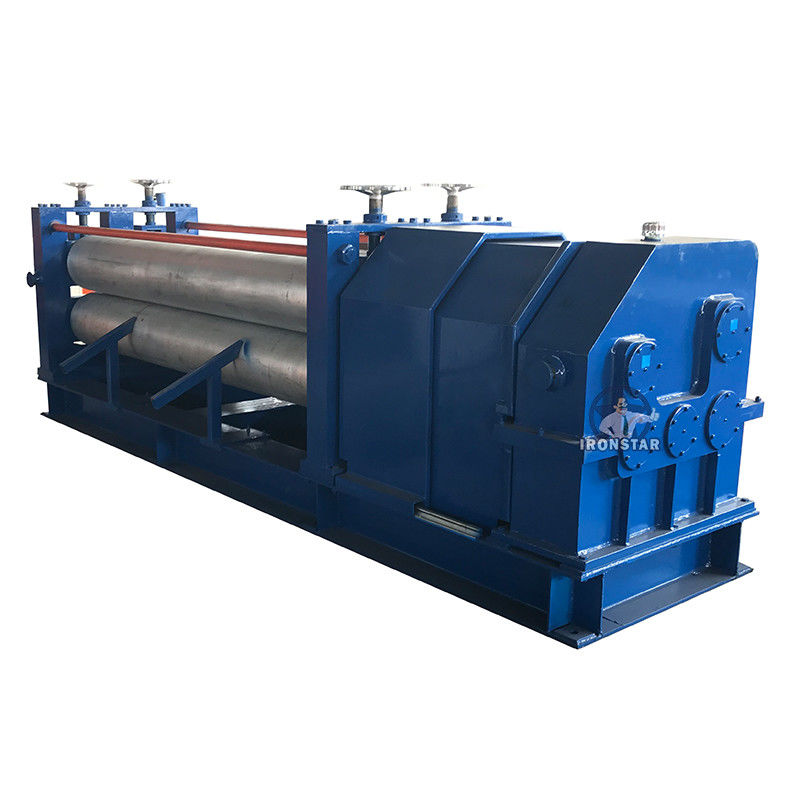

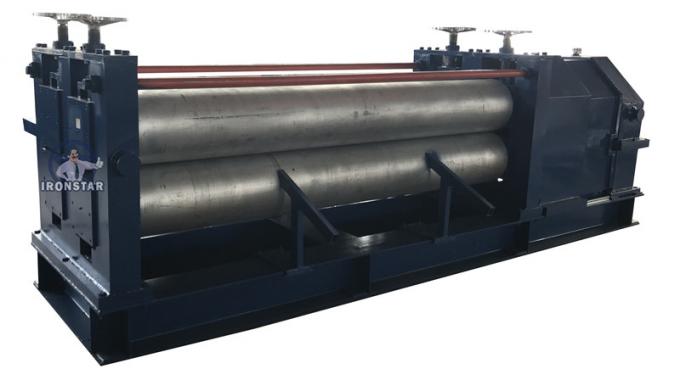

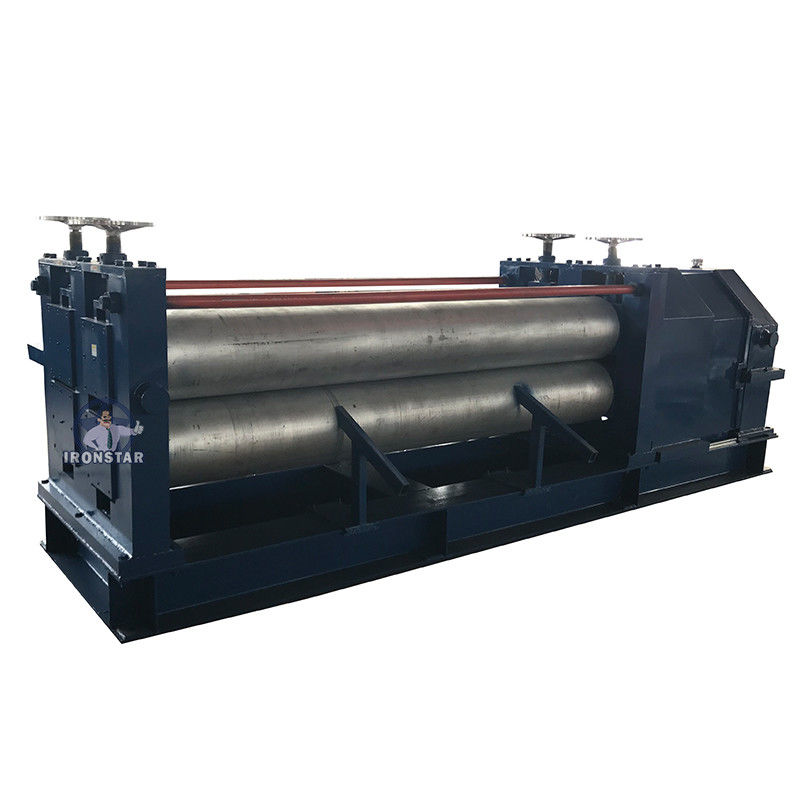

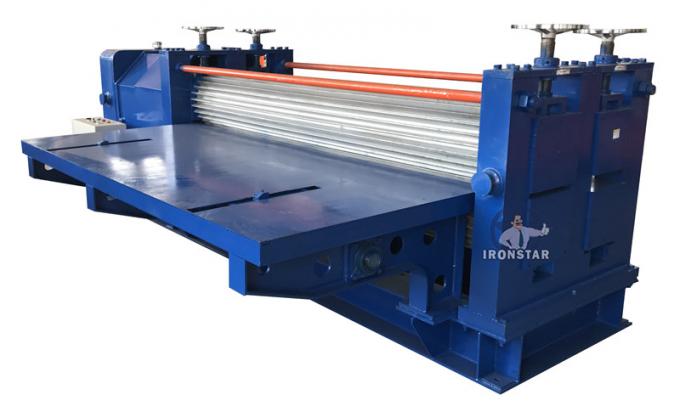

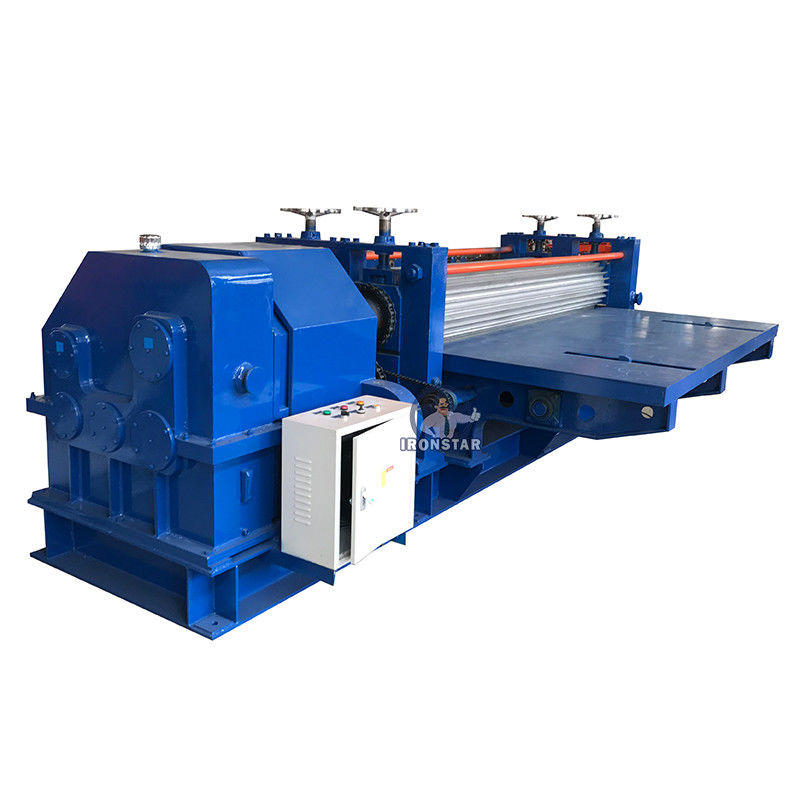

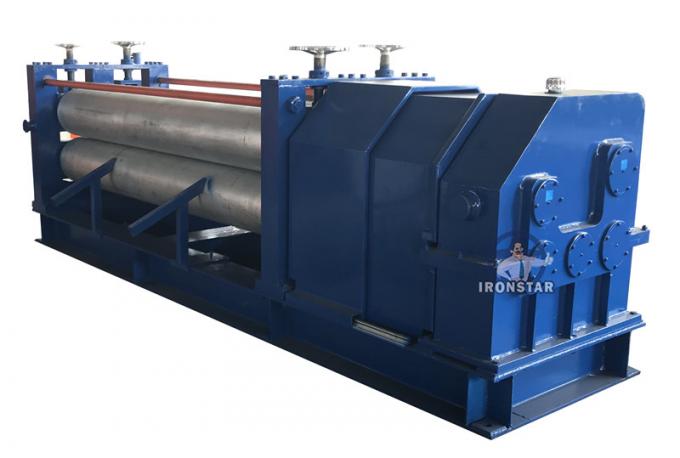

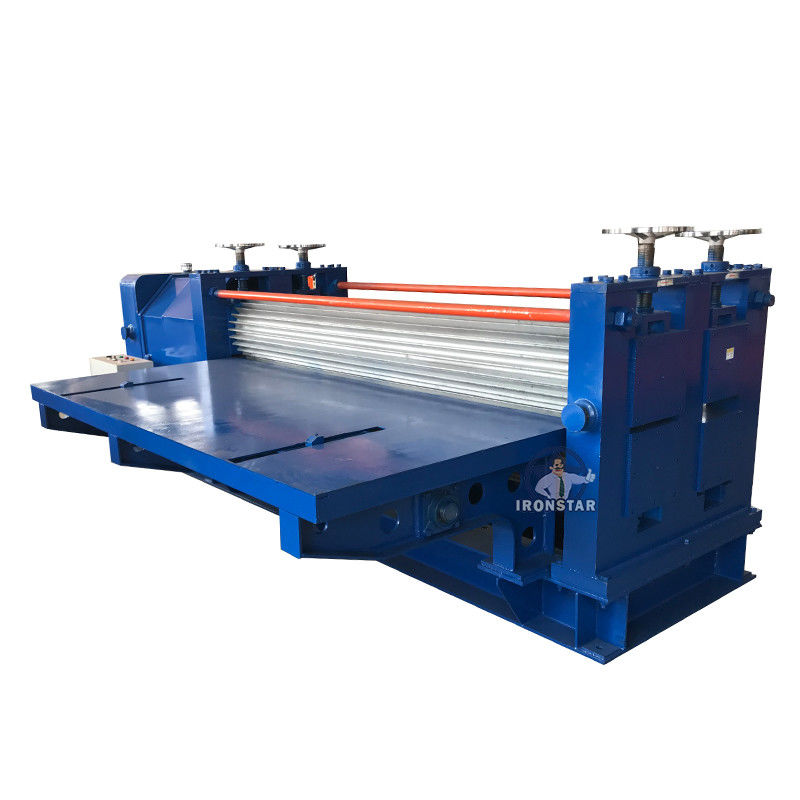

Customized 0.13-0.8mm Galvanized Color Steel 2m length Thin Barrel Sheet Roll Forming Machine For Africa
Thin barrel roller machine popular sell in many countries, common Corrugated roofing sheet rolling thickness from 0.14-0.4 mm, material use PPGI (Pre-Painted Galvanized Steel ) or GI material
We sell lots of such Thin barrel roller machine to South Africa, Tanzania, Nigeria, India Guinea etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size
When thickness from 0.3-0.6 mm, corrugated roofing sheet roll forming machine is suggested
When thickness from 0.14-0.4 mm, Thin barrel roller machine is suggested, common customer use cutting machine cut to need length, than use roller machine roll corrugated sheets
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Thickness | 0.14-0.4 mm | ||
|
2 |
Products | Material width | 2m |
| Pitch | 76mm(±2mm) | ||
| Depth | 18mm(±1.5mm) | ||
|
3 |
Main body | Solid shaft material | Manganese steel |
| Machine frame | Steel plate welding | ||
| Machine size | About 3*2.5*1.5 m | ||
| Machine weight | About 6 tons | ||
| Machine color | As customer need | ||
| Working speed | 6-14 times/min | ||
| 4 | Power | Motor | SIEMEN |
| Main motor | 7.5 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
5 |
Control system | Labour | Four people |
| Language | Chinese and English or as customer' request | ||
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 12 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
Our products are sold all over the world, you can rest assured.
