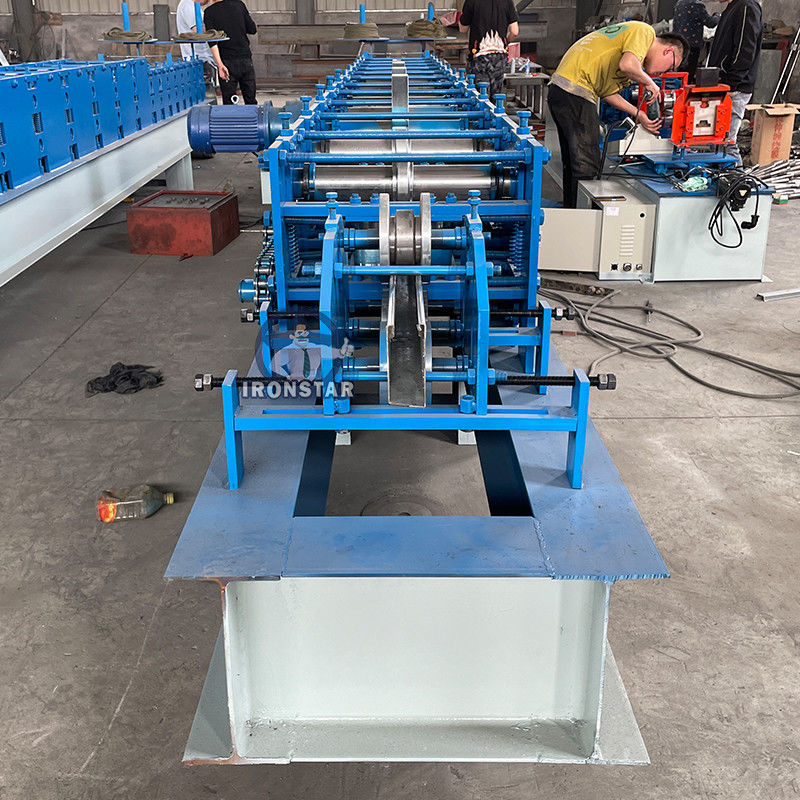

Customized Use In Garage Store And Factory 1.3-2mm Metal Channel C Guide Rail Roll Forming Machine

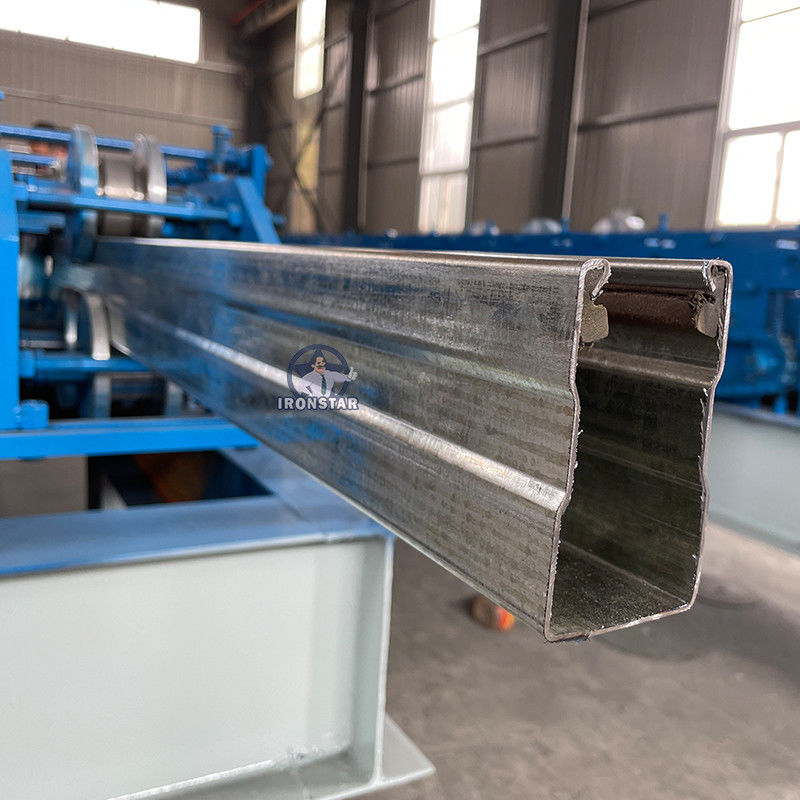

C guide rail rolling thickness from 1-3 mm, material use Galvanized steel material
We sell lots of such machine to India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
NO |
Type |
Specification | |
1 |
Raw material | Type | Galvanized steel |
Feeding width | As customer' drawing | ||
Thickness | 1.5 mm | ||
2 |
Decoiler | Operation | Manual |
Weight apacity | 3 Tons | ||
3 |

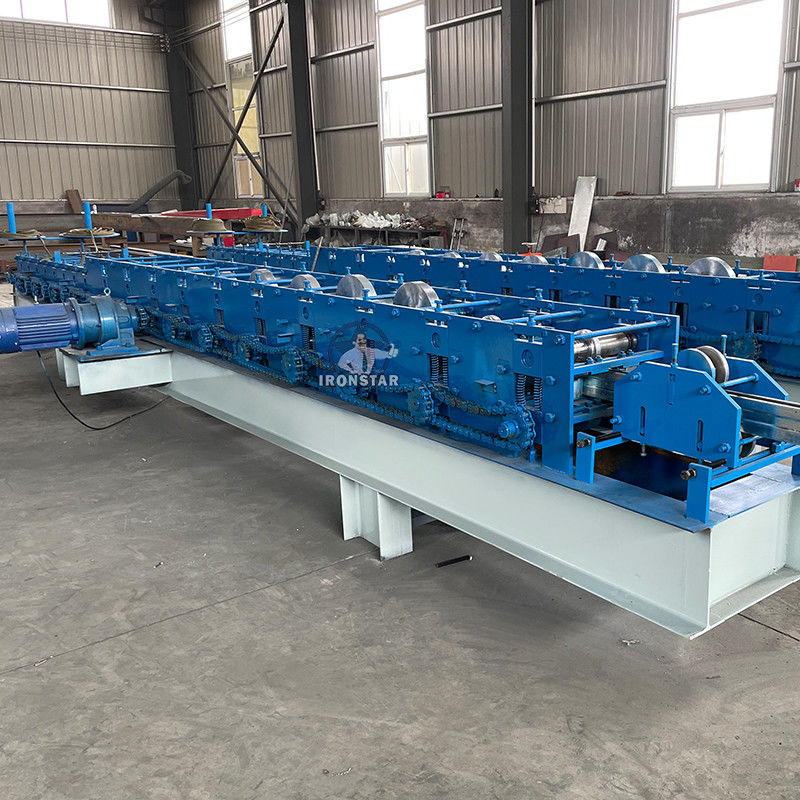

Main body | Roller station | 14-20 rows |
Diameter of shaft | 55 mm | ||
Shaft material | 45# with 0.05mm chrome | ||
Roller material | 45# with 0.05mm chrome | ||
Frame | Steel plate welding | ||
Frame thickness | 16 mm | ||
Machine size | About 6.5*0.8*1 m | ||
Machine weight | About 3.2 tons | ||
Machine color | As customer need | ||
Operation | Hydraulic automatic | ||
Working speed | Common speed 8-20 m/min | ||
4 | Cutter | Hardness | 50-65 HRC |
Cutting tolerance | ± 1mm | ||
Operate | Fly saw cutting | ||
5 | Power | Driving way | Chain 1 inch |
Main motor | 5.5 KW | ||
Pump motor for cutter | 4 KW | ||
Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
6 |
Control box | Electric box | PLC control system, inventer |
Screen | Touchable screen | ||
PLC brand | Delta made in Taiwan | ||
Inverter brand | Delta made in Taiwan or SAJ | ||
Language | Chinese and English or as customer' request | ||
7 | Stacker | Operation | Manual |
Length | 2-3 m |
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It adopts the fly saw cutting drive and automatic location to decide the dimension and cut the target products.
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
The shutter door guide rail roll forming machine finds application in various industries and sectors where shutter doors are used. Some of the applications include:
Industrial Facilities: The machine is used to produce guide rails for shutter doors in industrial settings such as warehouses, factories, distribution centers, and logistics facilities. These guide rails ensure smooth and reliable operation of industrial shutter doors, providing security and ease of access to large openings.
Commercial Buildings: The roll forming machine is utilized to manufacture guide rails for shutter doors in commercial buildings, including retail stores, shopping malls, parking garages, and office complexes. These guide rails contribute to the security and functionality of the shutter doors used in these establishments.
Residential Buildings: Shutter doors are increasingly being used in residential applications for various purposes, such as garage doors, patio enclosures, and security shutters. The guide rail roll forming machine is employed to produce guide rails specifically designed for residential shutter doors, ensuring their proper functioning and durability.
Storage Facilities: Facilities such as self-storage units, warehouses, and secure storage areas often employ shutter doors for security and convenience. The roll forming machine is used to manufacture guide rails that enable the smooth operation and reliable locking of these shutter doors.
Retail and Commercial Roll-up Doors: Roll-up doors commonly found in retail stores, shopping centers, and commercial establishments require guide rails for proper operation. The roll forming machine is used to produce guide rails tailored to the specific requirements of roll-up doors, ensuring smooth opening and closing.
Security Applications: The shutter door guide rail roll forming machine is also utilized in security applications such as banks, vaults, and high-security areas. The guide rails produced by the machine contribute to the robustness and reliability of security shutter systems.
