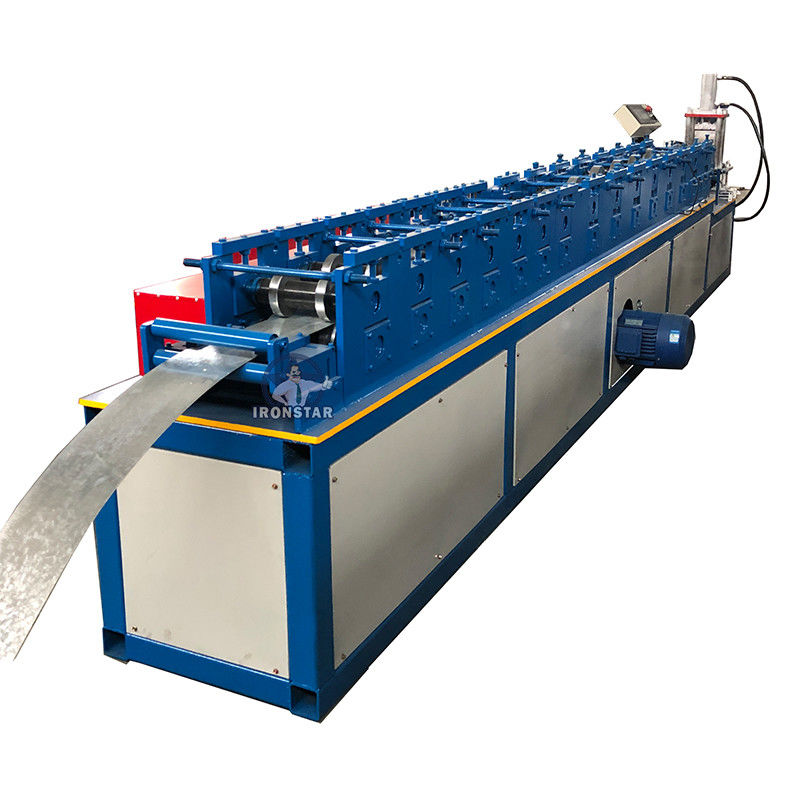

Customized Use In Garage Store And Factory 1.3-2mm Metal Channel Door Guide Rail Roll Forming Machine For Colombia

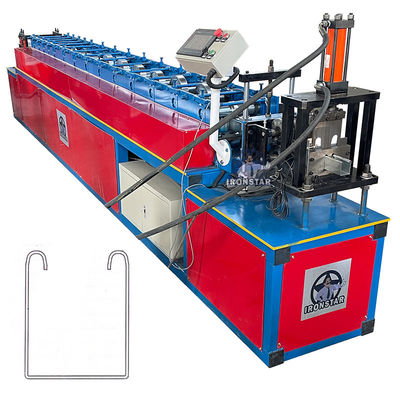

C guide rail roll forming machine popular sell in many countries, common C guide rail rolling thickness from 0.7-2 mm, material use Galvanized steel material
We sell lots of such machine to Colombia, Brazil, India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel |
| Feeding width | As customer' drawing | ||
| Thickness | 1.5 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 3 Tons | ||
|
3 |
Main body | Roller station | 14-20 rows |
| Diameter of shaft | 55 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | Steel plate welding | ||
| Frame thickness | 16 mm | ||
| Machine size | About 6.5*0.8*1 m | ||
| Machine weight | About 3.2 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 8-20 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 5.5 KW | ||
| Pump motor for cutter | 4 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

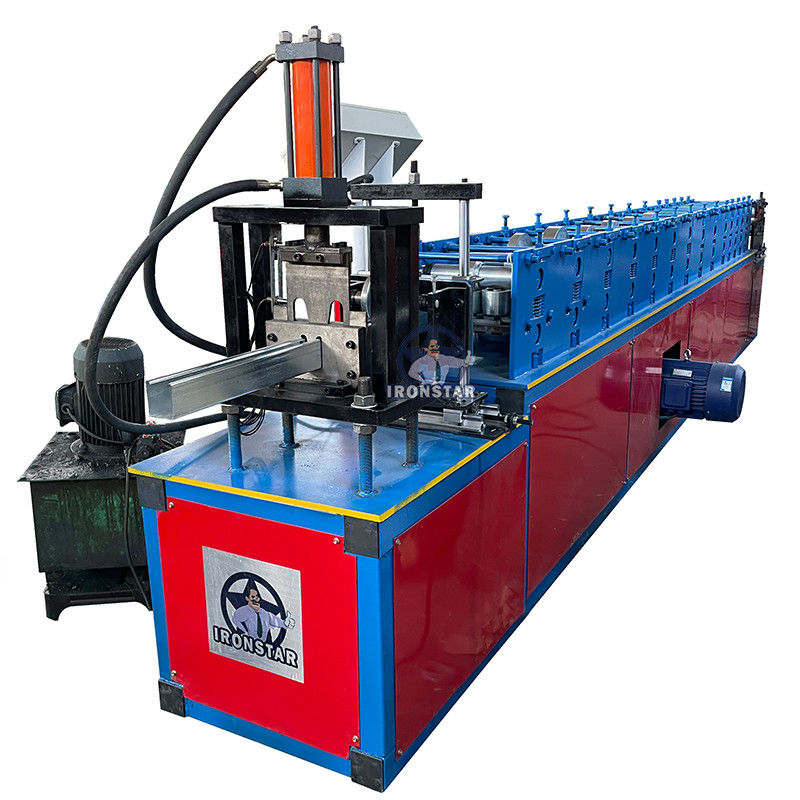

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment

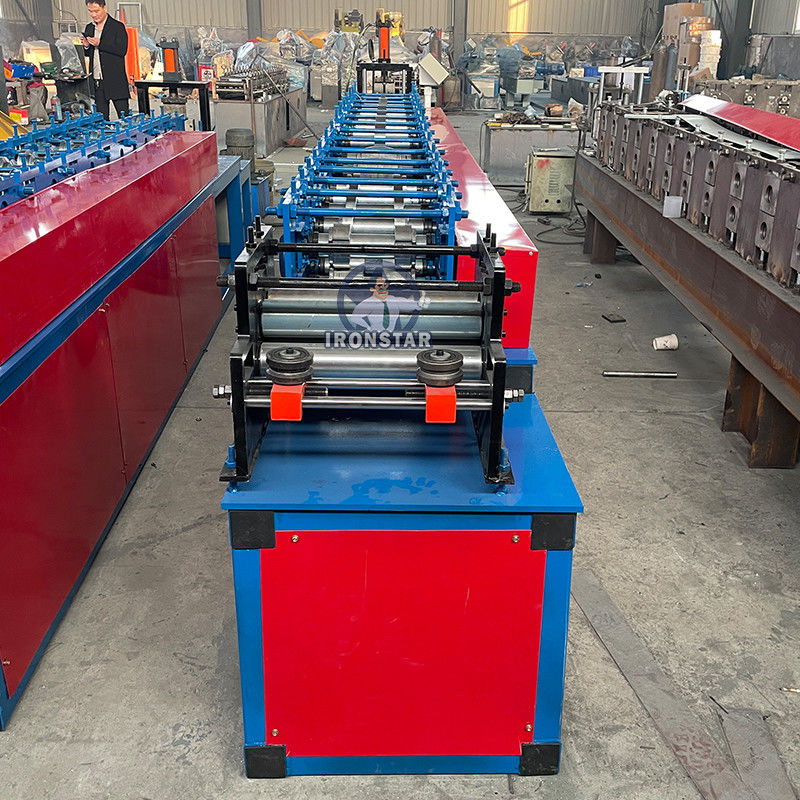

Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
shutter door track machine has specific applications in the manufacturing and construction industries. Here are some common applications of these machines:
Shutter Door Manufacturing: The primary application of a shutter door track machine is in the production of track profiles for shutter doors. These track profiles provide the necessary support and guidance for the movement of the shutter door panels. Shutter door manufacturers use track machines to efficiently produce track components that meet the specific requirements of different shutter door systems.
Construction Industry: Shutter door track machines play a crucial role in the construction industry, where shutter doors are commonly installed. The machine enables the efficient manufacturing of track profiles that are used in various construction projects such as commercial buildings, warehouses, factories, and residential properties. The track profiles ensure smooth and reliable operation of the shutter doors, allowing for secure access control and enhanced security.
Industrial Door Systems: Industrial doors, such as high-speed doors and overhead doors, often require track profiles for proper functioning. Shutter door track machines can manufacture track components specifically designed for industrial door systems. These track profiles are engineered to withstand heavy usage, provide smooth movement, and ensure precise alignment of the doors in industrial environments.
Garage Doors: Roll-up garage doors commonly use track profiles to guide the door panels during opening and closing. Shutter door track machines can manufacture track profiles tailored for garage door systems. These track profiles offer smooth operation, proper alignment, and reliable performance for residential, commercial, and industrial garage doors.
Sliding Doors: Sliding doors, such as patio doors or interior sliding doors, also use track systems. Shutter door track machines can produce track profiles suitable for sliding door applications. These track profiles facilitate smooth and effortless sliding motion, ensuring easy access and optimal functionality.
Shutter door track machines are essential for the efficient and precise manufacturing of track profiles used in shutter doors across various applications. They contribute to the smooth operation, durability, and security of shutter door systems in the construction, industrial, and residential sectors.
Our products are sold all over the world, you can rest assured.
