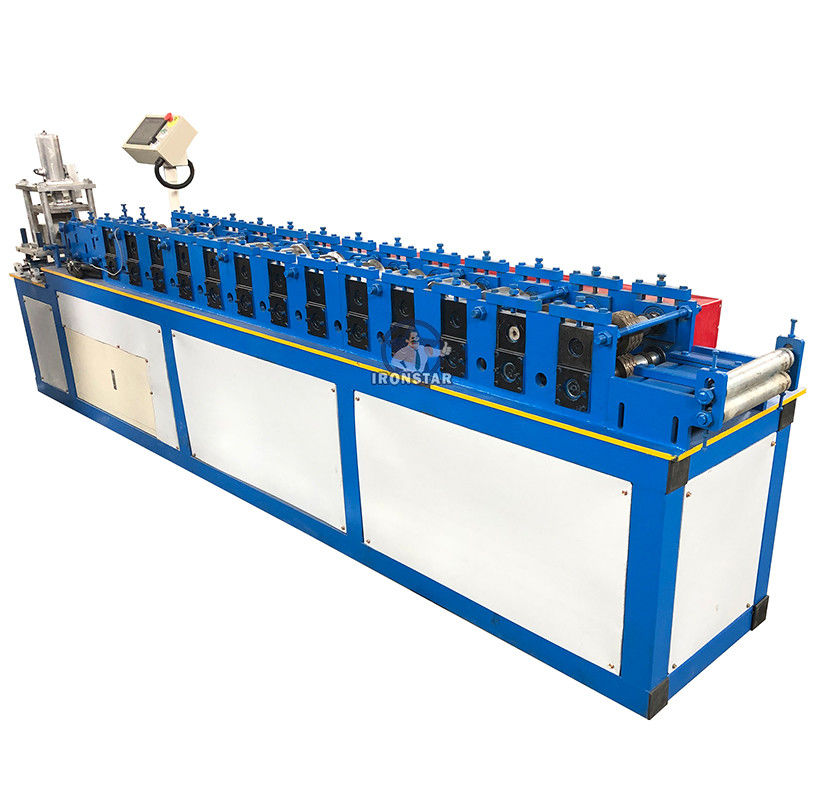

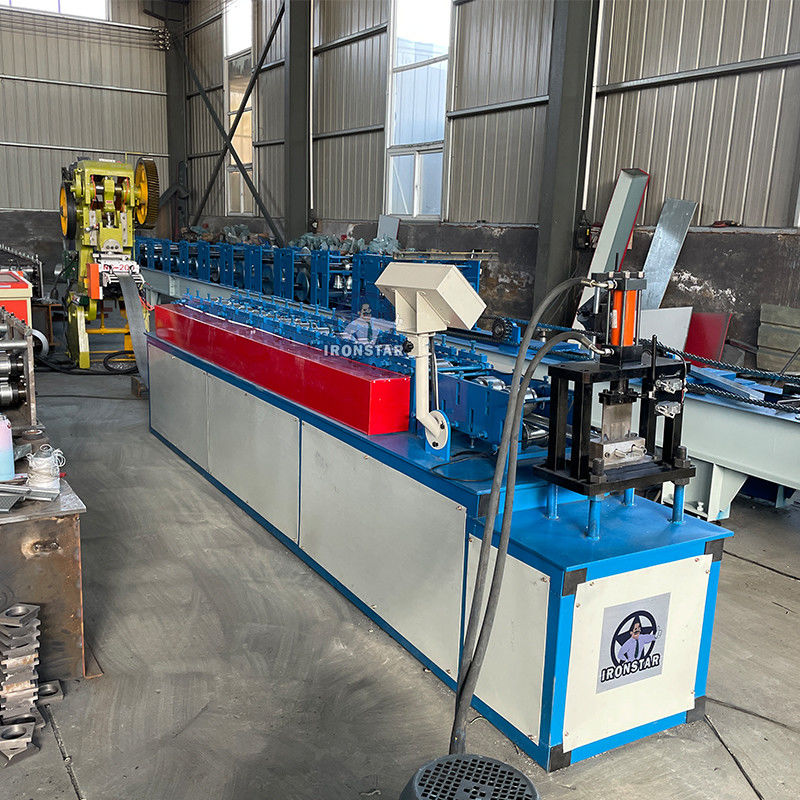

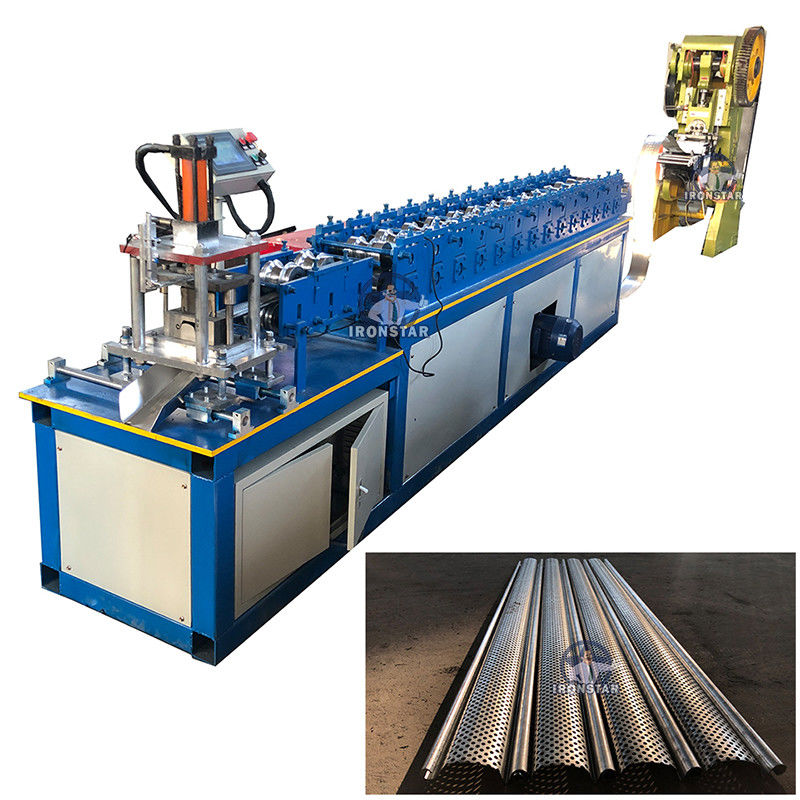

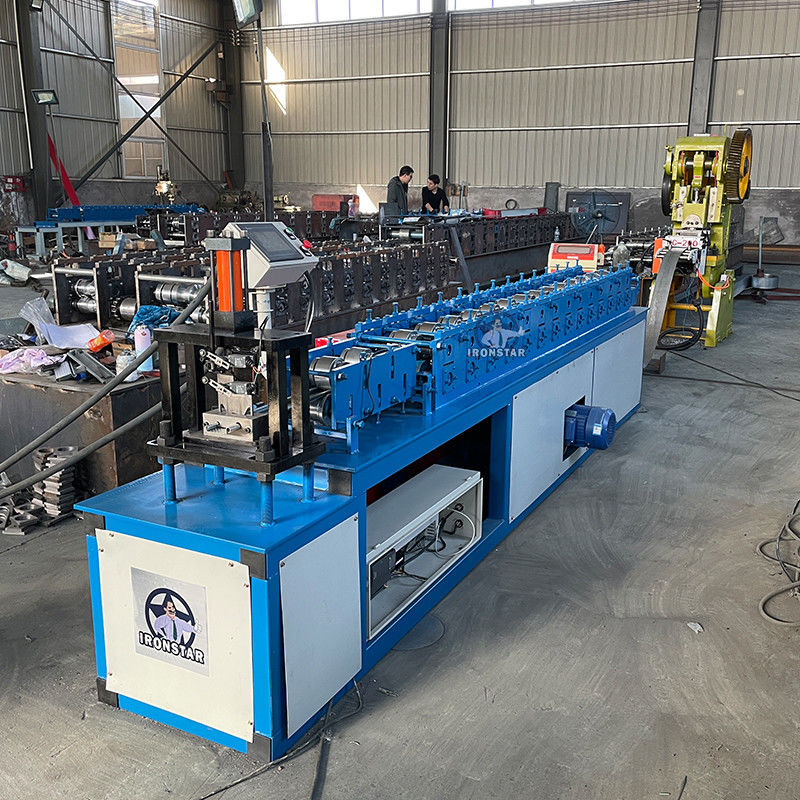

Customized Use In Garage Store And Factory 0.8-1.2mm Metal Roller Punching Hole Shutter Door Forming Line For Brazil
Shutter door roll forming machine popular sell in many countries, common shutter door rolling thickness from 0.7-1.2 mm, material use PPGI or Galvanized steel material
We sell lots of such machine to India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size

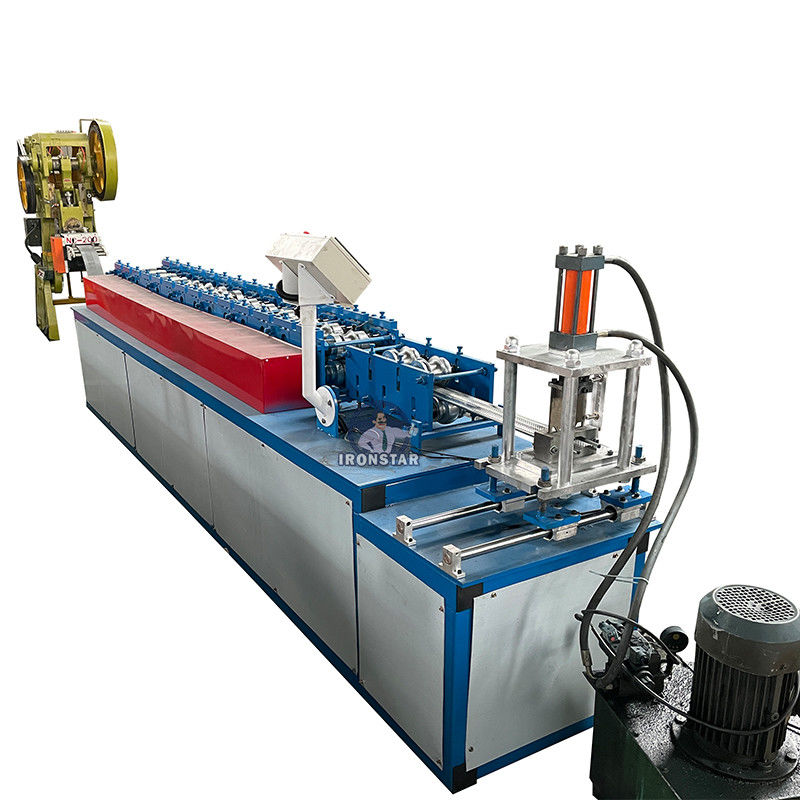

Decoiler-Puncher offline-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel |
| Feeding width | As customer' drawing | ||
| Thickness | 0.7-1 mm | ||

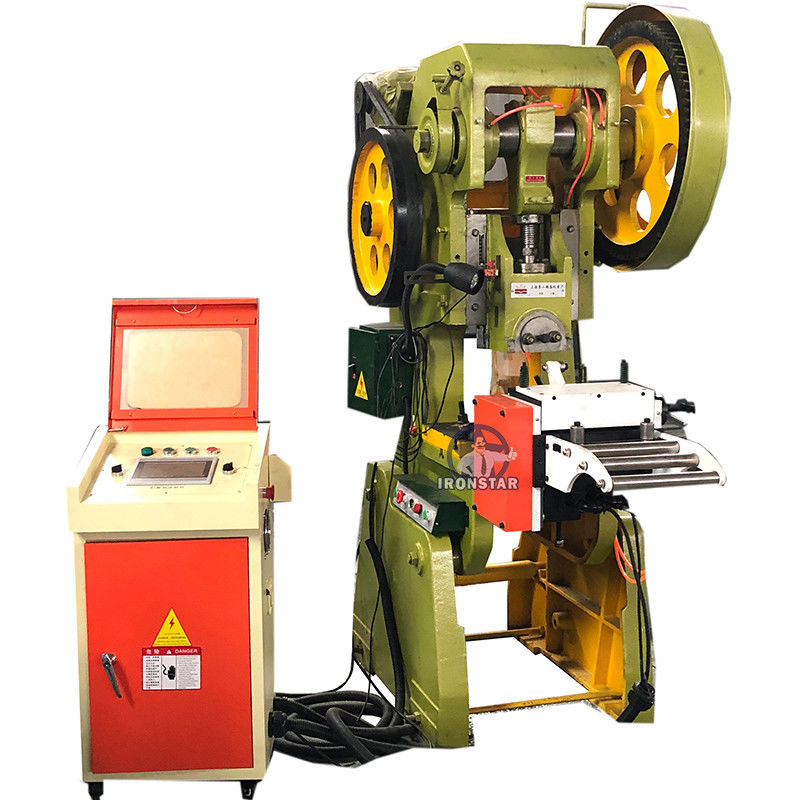

| 2 | Puncher offline | Capacity | 25 tons, automatic |
| Size | 1.5*1*1.5 m | ||
| 3 | Decoiler | Operation | Electric, automatic work |
| Weight apacity | 3 Tons | ||
| 4 | Main body | Roller station | 14 rows |
| Diameter of shaft | 55 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | Steel plate welding | ||
| Frame thickness | 16 mm | ||
| Machine size | About 4.5*0.8*1 m | ||
| Machine weight | About 1.5 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 8-20 m/min | ||
| 5 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 6 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
7 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 8 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

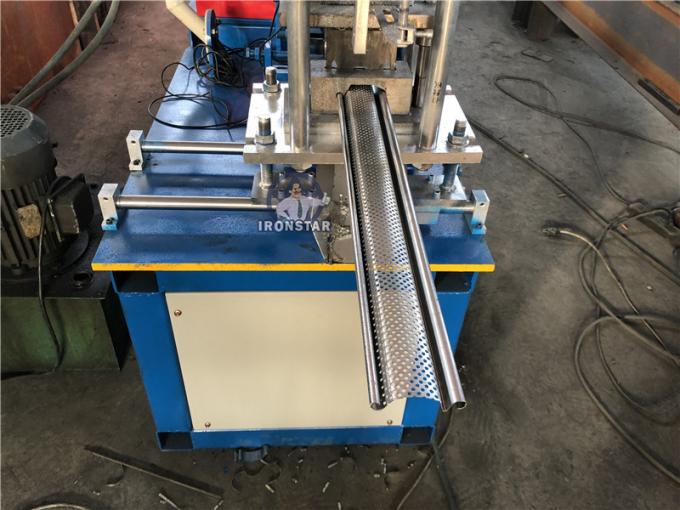

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
Emboss roller embossing spots on the product
It can custom emboss rollers as customer need' flower
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.

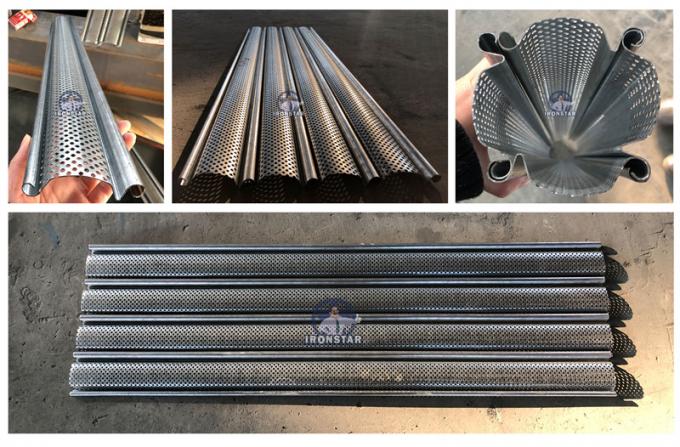

The perforated rolling shutter machine finds application in various industries and sectors where perforated rolling shutters are required. Here are some common applications of perforated rolling shutter machines:
Commercial Buildings: Perforated rolling shutters are often used in commercial buildings such as retail stores, shopping malls, and showrooms. These shutters provide security during non-operational hours while allowing visibility into the premises. They are also suitable for applications where airflow and ventilation are necessary, such as in parking garages or storage facilities.
Industrial Facilities: Industries may utilize perforated rolling shutters in warehouses, factories, and industrial units. These shutters offer security while allowing light and air circulation within the facility. The perforations can be adjusted to control the level of visibility, airflow, and sound transmission as per the specific requirements of the industry.
Hospitality and Entertainment: Perforated rolling shutters find application in the hospitality and entertainment sector, particularly in theaters, cinemas, and event venues. They can be used to create visually appealing facades while providing security when not in use. The perforations can enhance aesthetics by creating artistic patterns or logos on the shutters.
Parking Areas: Perforated rolling shutters are suitable for parking areas, including multi-level parking garages and open parking lots. These shutters allow for natural ventilation within the parking space while ensuring security for vehicles. The perforations enable visibility for surveillance purposes and can assist in maintaining proper airflow and temperature control.
Residential Properties: Perforated rolling shutters can be employed in residential applications, such as homes, apartments, and gated communities. They offer security and privacy while allowing light and air to enter the premises. The perforations can be designed to strike a balance between visibility and privacy, catering to the specific preferences of homeowners.
Exhibition Centers and Museums: Perforated rolling shutters are commonly used in exhibition centers, museums, and galleries to secure valuable exhibits or artworks. These shutters provide security while allowing visitors to have a glimpse of the exhibits even when the facility is closed. The perforated design adds an aesthetic touch to the overall presentation.
These are just a few examples of the applications of perforated rolling shutter machines. The versatility of the machines allows for customization of hole patterns, sizes, and shutter dimensions to meet specific requirements across various industries.
