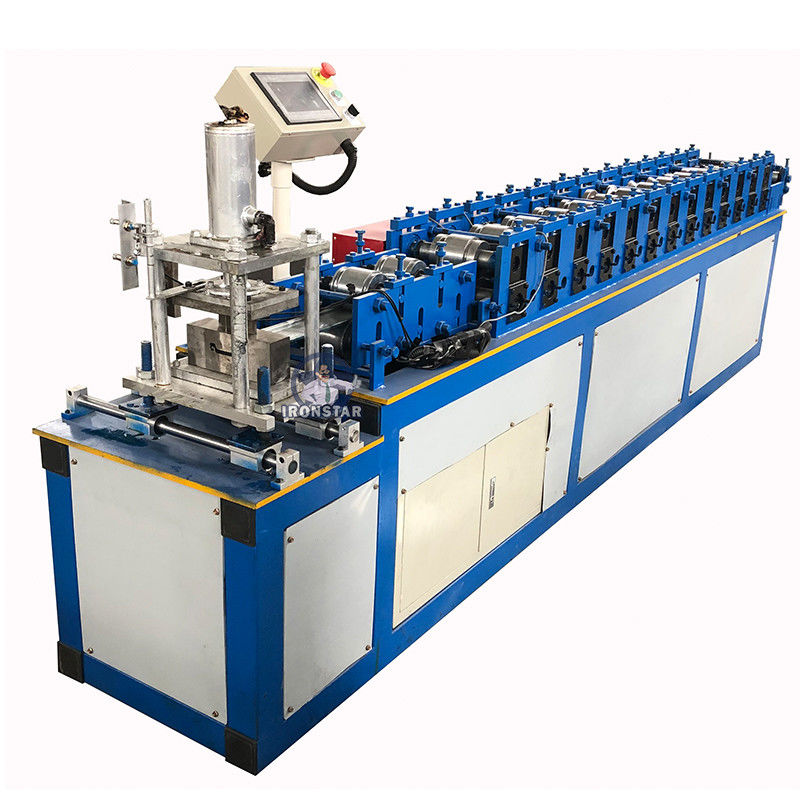

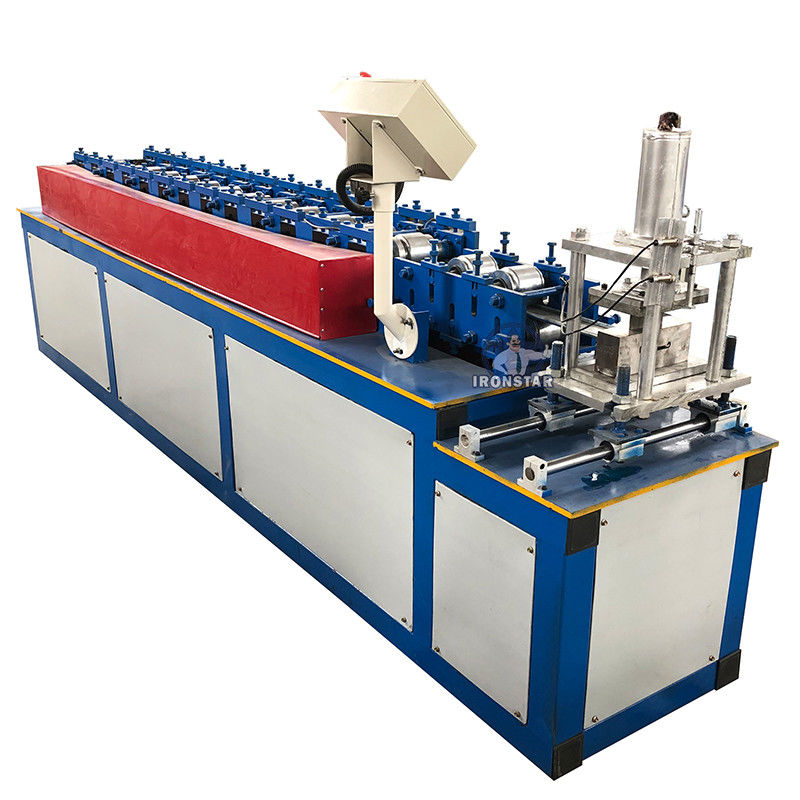

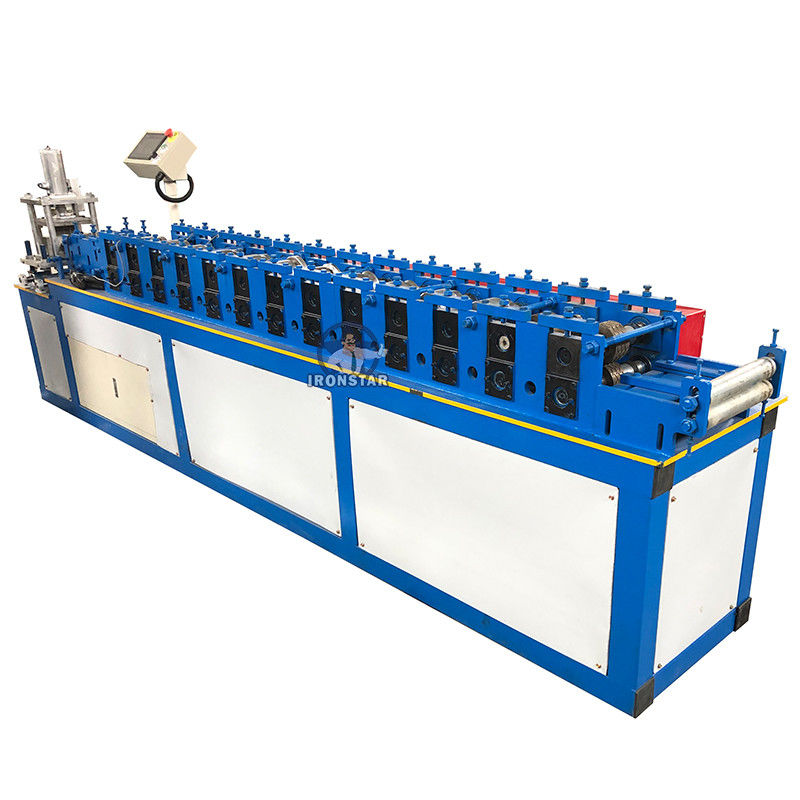

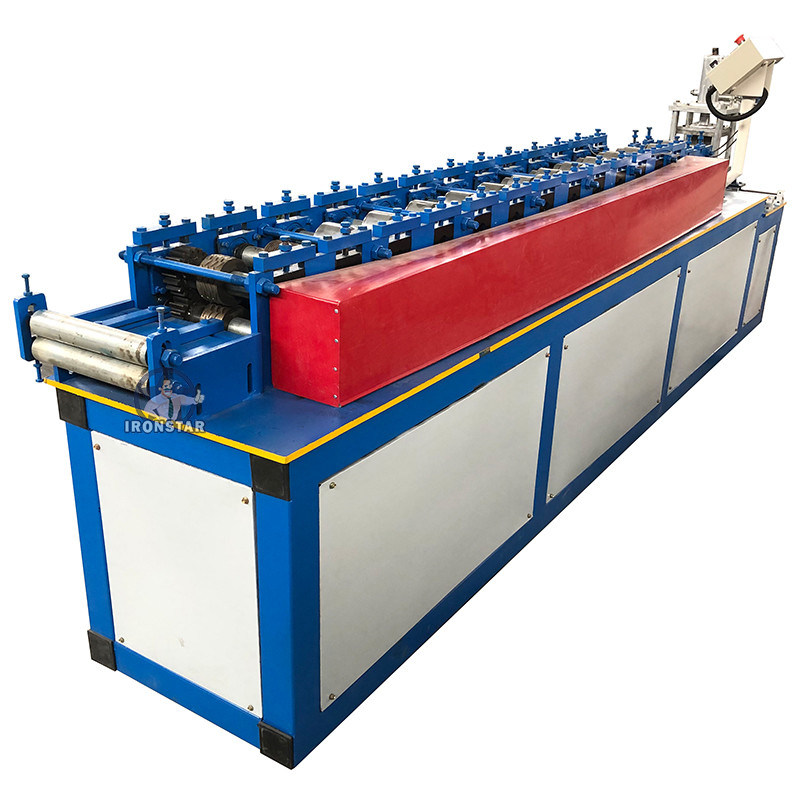

Shutter door roll forming machine popular sell in many countries, common shutter door rolling thickness from 0.7-1.2 mm, material use PPGI or Galvanized steel material
We sell lots of such machine to India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
NO |
Type |
Specification | |
1 |
Raw material | Type | Galvanized steel |
Feeding width | As customer' drawing | ||
Thickness | 0.7-1 mm | ||
2 |
Decoiler | Operation | Manual |
Weight apacity | 3 Tons | ||
3 |
Main body | Roller station | 14 rows |
Diameter of shaft | 55 mm | ||
Shaft material | 45# with 0.05mm chrome | ||
Roller material | 45# with 0.05mm chrome | ||
Frame | Steel plate welding | ||
Frame thickness | 16 mm | ||
Machine size | About 4.5*0.8*1 m | ||
Machine weight | About 1.5 tons | ||
Machine color | As customer need | ||
Operation | Hydraulic automatic | ||
Working speed | Common speed 8-20 m/min | ||
4 | Cutter | Hardness | 50-65 HRC |
Cutting tolerance | ± 1mm | ||
Material | Cr 12 | ||
Operate | Hydraulic cutting | ||
5 | Power | Driving way | Chain 1 inch |
Main motor | 4 KW | ||
Pump motor for cutter | 3 KW | ||
Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
6 |
Control box | Electric box | PLC control system, inventer |
Screen | Touchable screen | ||
PLC brand | Delta made in Taiwan | ||
Inverter brand | Delta made in Taiwan or SAJ | ||
Language | Chinese and English or as customer' request | ||
7 | Stacker | Operation | Manual |
Length | 2-3 m |
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel

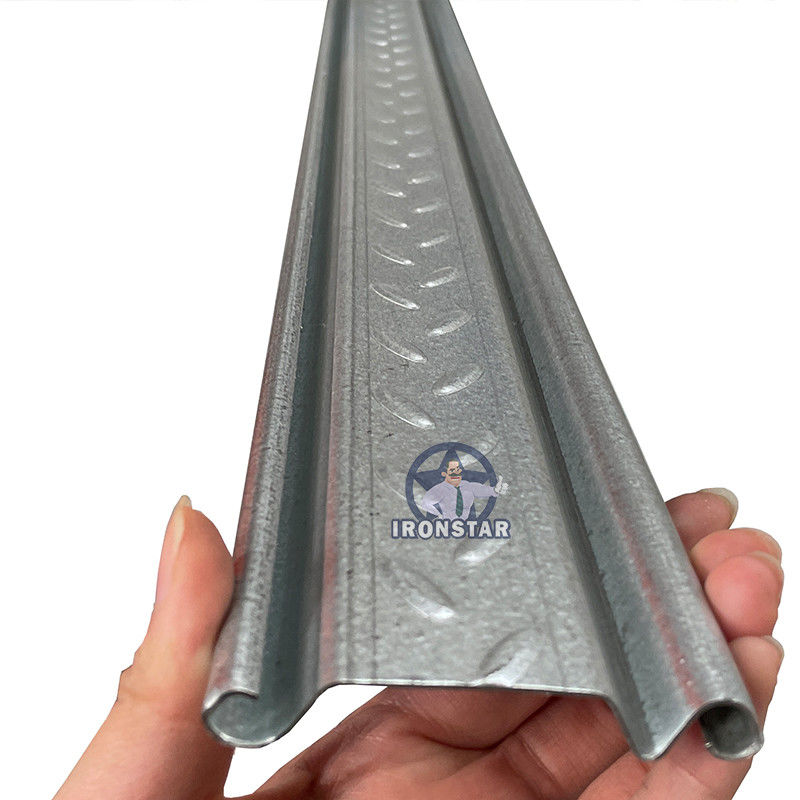

Emboss roller embossing spots on the product
It can custom emboss rollers as customer need' flower
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
Shutter door roll forming machines have versatile applications in the manufacturing and construction industries. Here are some key applications:
Commercial Buildings: Shutter doors produced by roll forming machines are commonly used in commercial buildings, such as warehouses, factories, retail stores, and shopping centers. These doors provide security, ease of operation, and efficient access control.
Industrial Facilities: Industries such as manufacturing plants, logistics centers, and distribution warehouses often require robust and durable shutter doors for security, insulation, and protection against weather elements. Roll forming machines enable the production of high-quality shutter doors suitable for these industrial applications.
Residential Buildings: Shutter doors find applications in residential buildings, particularly for garages, storage rooms, and patio enclosures. They offer convenience, security, and protection from external elements.
Retail Stores and Shopfronts: Roll-up shutter doors are commonly used in retail stores and shopfronts for security during non-business hours. These doors provide a barrier against break-ins and vandalism, ensuring the safety of the premises.
Security and High-Security Areas: Shutter doors manufactured by roll forming machines are employed in areas that require enhanced security measures, such as banks, data centers, jewelry stores, and sensitive facilities. These doors are designed to withstand forced entry attempts and provide maximum security.
Residential and Commercial Garages: Roll-up shutter doors are widely used in garages, both for residential and commercial purposes. They offer easy access, space-saving benefits, and secure closure.
Agricultural Buildings: Shutter doors are utilized in agricultural structures like barns, sheds, and equipment storage buildings. They provide protection against weather conditions, secure storage, and easy access for large machinery and vehicles.
The versatility of shutter door roll forming machines allows for the production of various types of shutter doors, including roll-up doors, rolling shutters, industrial doors, garage doors, and security doors. These machines enable the efficient and precise manufacturing of shutter door profiles, meeting the specific requirements of different applications in the construction industry.
