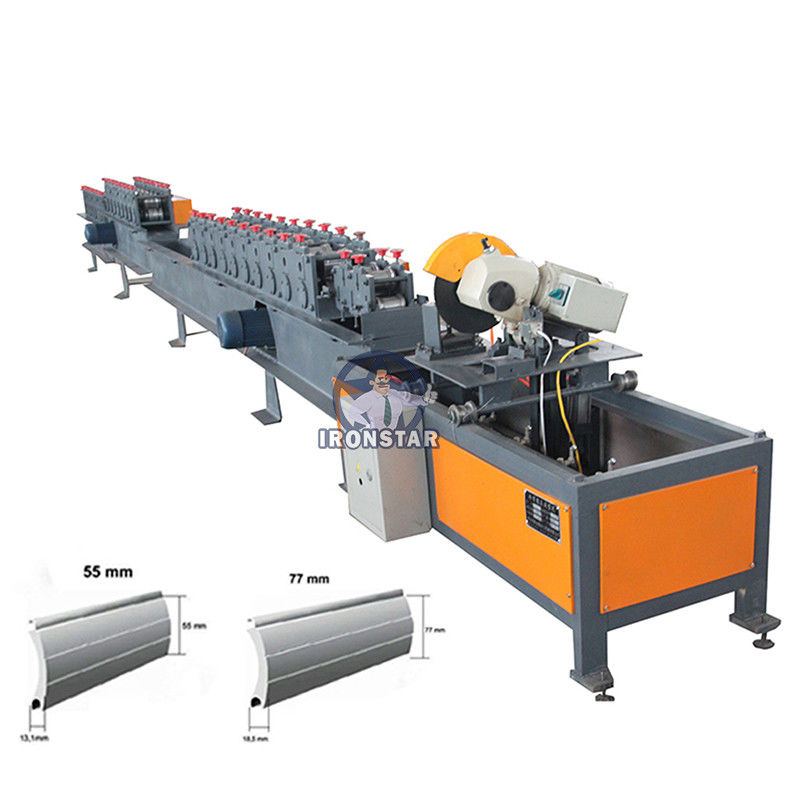

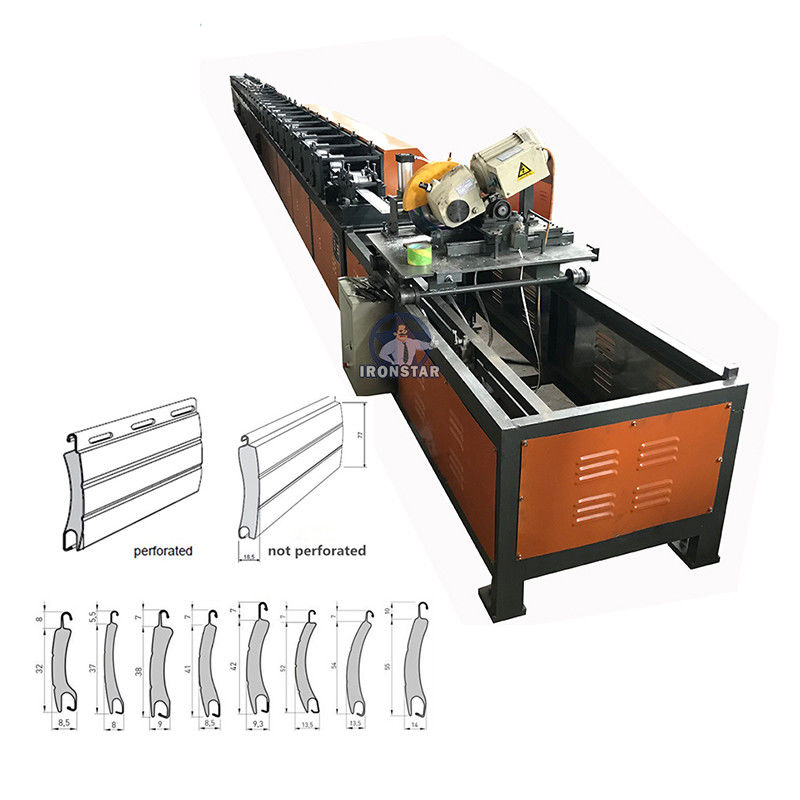

Customized 0.8-1.2mm Metal Sheet Roller Steel Pu Foam Shutter Door Roll Forming Machine For Pakistan
Pu foam shutter door roll forming machine popular sell in many countries, common shutter door rolling thickness from 0.35-0.6 mm, material use PPGI or Galvanized steel or Aluminium material
We sell lots of such machine to India, Pakistan, Egypt, Algeria, Qatar, Morocco, Saudi Arabic etc, Size can customize can your need size
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI and GI or Aluminium |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 3 Tons | ||
|
3 |

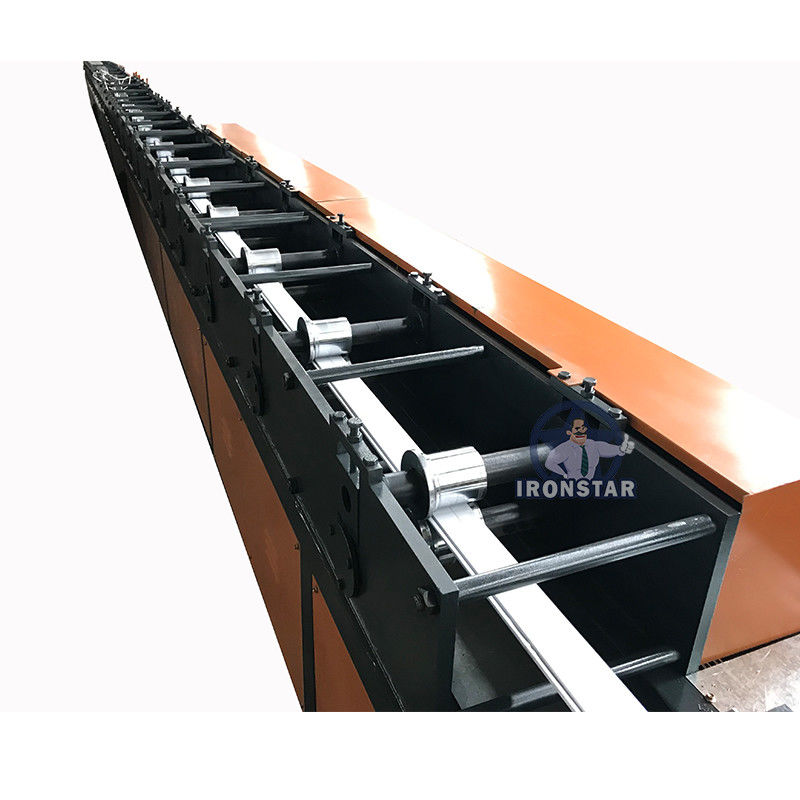

Main body | Roller station | 42 rows |
| Diameter of shaft | 50 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | 320-H beam | ||
| Frame thickness | 16 mm | ||
| Machine size | About 16*0.8*0.8 m | ||
| Machine weight | About 4 tons | ||
| Machine color | As customer need | ||
| Operation | Automatic | ||
| Working speed | Normal speed: 5-10 m/min | ||
| Punching speed: 3-5 m/min | |||

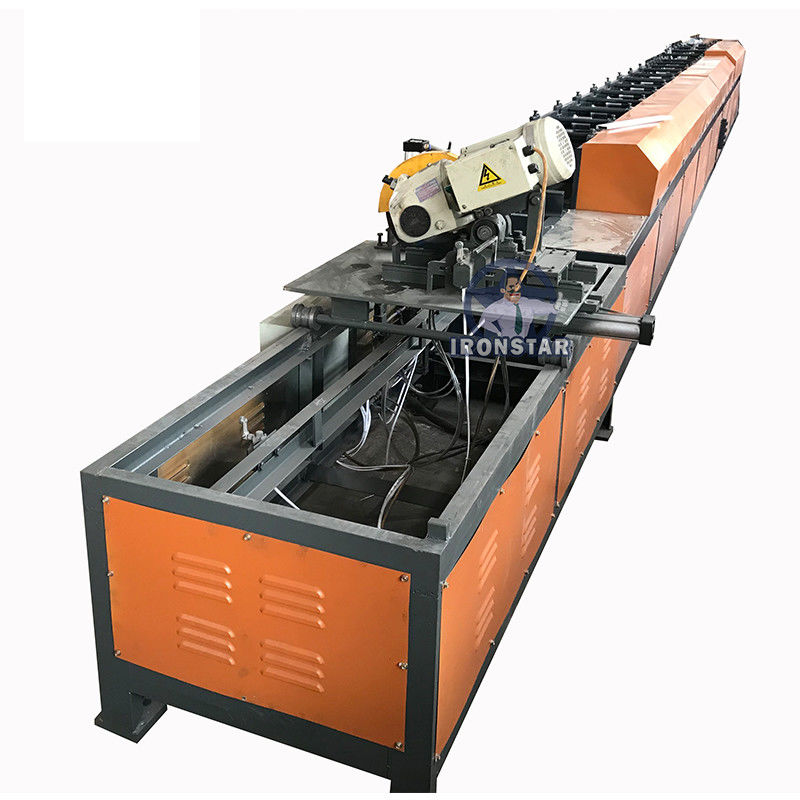

| 4 | Cutter | Cutting power | 2.2 kw |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Pneumatic following cutting device | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Language | Chinese and English or as customer' request |
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It adopts the air pump drive and automatic location to decide the dimension and cut the target products.
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press operate, easy operate
Language: Chinese and English or as acustomer' need
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 50 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 40 feet container to hold.
The PU sandwich shutter door roll forming machine finds application in various industries and sectors where PU foam-filled sandwich panels are used in shutter doors. Here are some common applications of PU sandwich shutter door panels and the roll forming machine:
Industrial Buildings and Warehouses: PU sandwich shutter door panels are commonly used in industrial buildings and warehouses for their insulation properties and durability. These panels provide thermal insulation, soundproofing, and security, making them suitable for applications where temperature control, noise reduction, and protection of goods are essential.
Commercial Establishments: PU sandwich shutter door panels are utilized in commercial establishments such as retail stores, showrooms, and shopping malls. These panels offer insulation, security, and aesthetic appeal. They are often used for storefronts, entrances, and security barriers.
Cold Storage and Freezer Rooms: The excellent insulation properties of PU sandwich shutter door panels make them ideal for cold storage facilities, freezer rooms, and refrigerated warehouses. These panels help maintain a controlled temperature environment, prevent heat transfer, and ensure energy efficiency.
Food Processing and Pharmaceutical Industries: PU sandwich shutter door panels are suitable for applications in the food processing and pharmaceutical industries. They provide a hygienic and controlled environment, ensuring compliance with regulatory standards. The panels can be easily cleaned, resistant to moisture, and offer protection against contaminants.
Logistics and Distribution Centers: PU sandwich shutter door panels are used in logistics and distribution centers, providing secure and insulated access points for loading docks and storage areas. These panels help maintain temperature zones, facilitate smooth material flow, and enhance security.
Automotive and Manufacturing Facilities: PU sandwich shutter door panels find application in automotive and manufacturing facilities for their insulation, security, and durability. They can be used for vehicle entrances, assembly lines, and storage areas, protecting valuable equipment and ensuring a controlled working environment.
Residential and Garage Doors: PU sandwich shutter door panels are also used in residential applications such as garage doors. These panels offer insulation, security, and noise reduction for residential properties, ensuring comfort and protection.
The PU sandwich shutter door roll forming machine enables the efficient and precise production of PU foam-filled sandwich panels tailored to the specific requirements of different industries. The versatility and benefits of these panels make them a popular choice for a wide range of applications where thermal insulation, security, and durability are essential.
