Austria Shutter Door Machine, Rolling Shutter Machine, Strip Making Machine for Oman

Austria Shutter Door Machine, Rolling Shutter Machine, Strip Making Machine for Oman

  • Highlight

    PPGI shutter strip making machine

    ,

    Roller Shutter Machine 23 rows

  • Raw Material
    PPGI
  • Warranty
    3 Years
  • Export Port
    Tianjin Port
  • Payment Terms
    T/T, L/C, D/A, D/P
  • Container
    40 Feet Container
  • Working Days
    40 Working Days
  • Place of Origin
    China
  • Brand Name
    IRONSTAR
  • Certification
    CE
  • Model Number
    Customized
  • Minimum Order Quantity
    1 set
  • Price
    As Drawing
  • Packaging Details
    Tarpaulins and wooden cases
  • Delivery Time
    30-50 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    10 Sets/Month

Austria Shutter Door Machine, Rolling Shutter Machine, Strip Making Machine for Oman

Austria shutter door roll forming machine popular sell in many countries, common Austria shutter door rolling thickness from 0.3-0.6 mm, material use PPGI material



We sell lots of such machine to India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc,  Size can customize can your need size



Work flow of Austria shutter door roll forming machine

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

roll forming machine work flow



Diameter of Austria shutter door roll forming machine

NO

            Type

Specification

1

Raw material Type PPGI
Feeding width As customer' drawing
Thickness 0.3-0.6 mm

2

Decoiler Operation Manual
Weight apacity 5 Tons

3

Main body Roller station 23 rows
Diameter of shaft 70 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame 360mm C-beam
Frame thickness 16 mm
Machine size About 10.8*1.5*1 m
Machine weight About 6 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 8-20 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 5.5 KW
Pump motor for cutter 3 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

6

Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

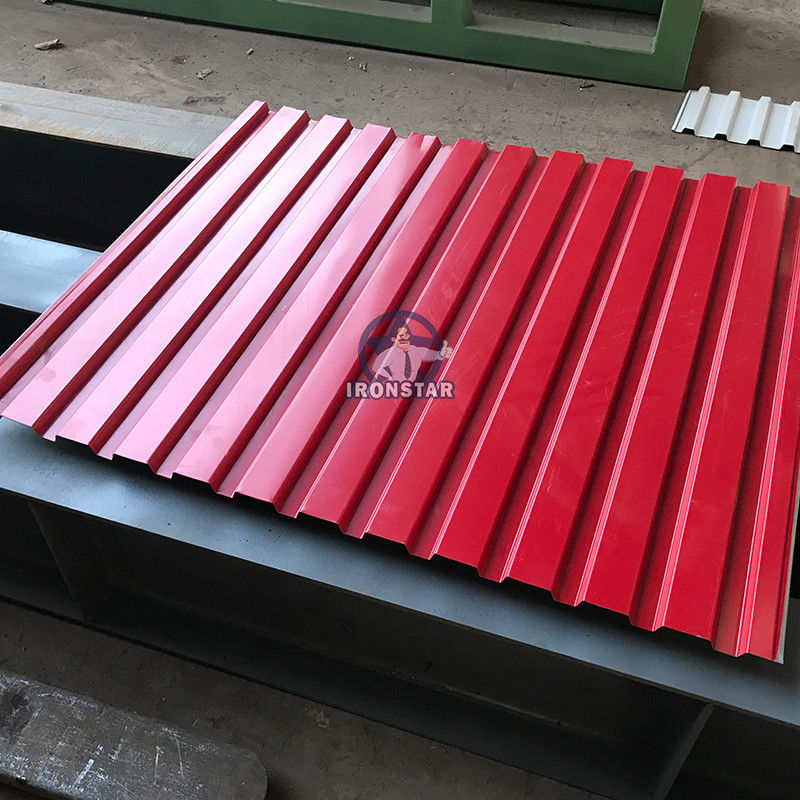

Product drawing

Austria shutter door Roll forming machine 5

Austria shutter door Roll forming machine 4





Feeder decoiler

Alibaba-new

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 5 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

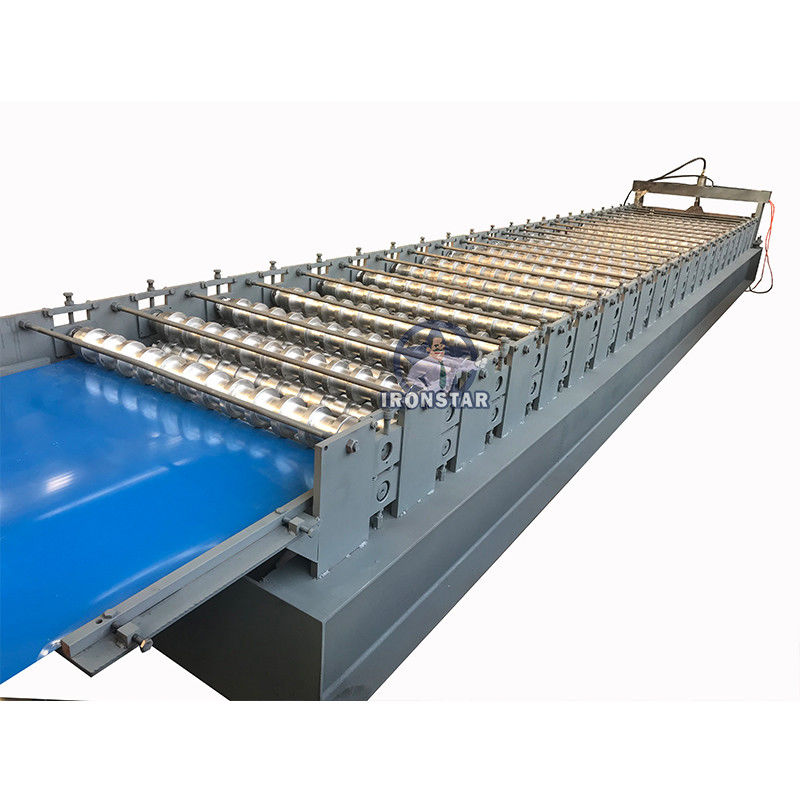

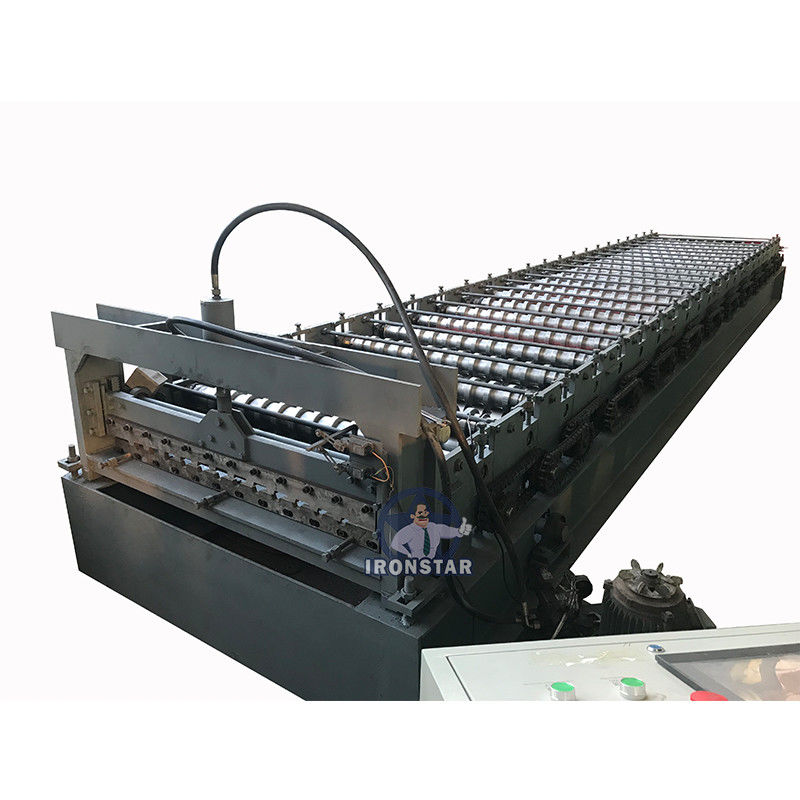

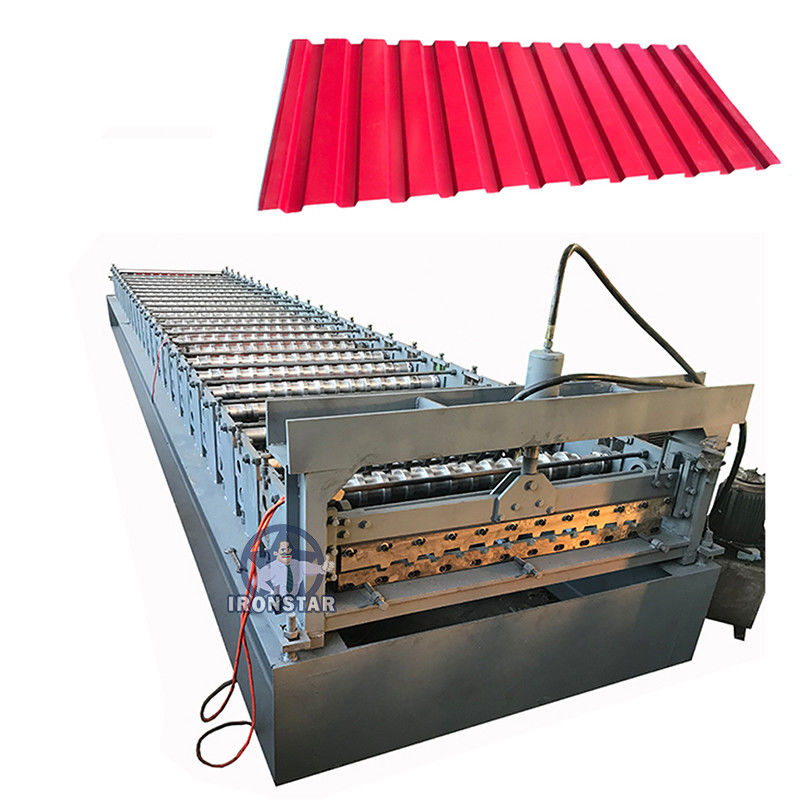

Roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

Austria shutter door Roll forming machine

Austria shutter door Roll forming machine 4

Austria shutter door Roll forming machine 2

Austria shutter door Roll forming machine 1





Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

Austria-shutter-door-Roll-forming-machine-1





Feeding table

IMG_8503_副本

Insert  raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel







Control box


DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need





Hydraulic oil pump


Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa



Receiving table

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

IMG_0198-2






4m / 6m seaming machine

Length: Common 4m / 6m

Operate : Manual work, easy operate

Used to seam the finished shutter pieces

Roll forming machine


Spare parts free for customer

QQ截图20211229161100



Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.





Certificate CE & ISO9001

QQ截图20211229161629





We sell country


Austria shutter door machine is a type of specialized equipment used for the manufacturing and fabrication of shutter doors. It is designed to efficiently produce high-quality shutter door components, including slats, tracks, and other necessary parts. While there may be variations in specific features and functionalities


The Austria shutter door machine finds application in various industries and sectors where shutter doors are required. Here are some common applications of Austria shutter door machines:



Commercial Buildings: Austria shutter door machines are used to manufacture shutter doors for commercial buildings such as retail stores, shopping malls, warehouses, and showrooms. These shutter doors provide security, weather protection, and ease of access for both pedestrians and vehicles.



Industrial Facilities: Industries utilize Austria shutter door machines to produce shutter doors for factories, manufacturing plants, and industrial units. These doors are designed to withstand heavy usage, provide security, and ensure smooth operations by allowing easy movement of goods and equipment.



Residential Properties: Austria shutter door machines are also employed in the residential sector for the production of shutter doors used in garages, storage areas, and entrances. These doors offer security, privacy, and protection against weather elements.



Warehouses and Distribution Centers: Shutter doors manufactured using Austria shutter door machines are commonly used in warehouses and distribution centers. These doors allow efficient loading and unloading of goods, secure the premises, and provide insulation to maintain temperature control in storage areas.



Vehicle Access Points: Austria shutter door machines are utilized to produce shutter doors for vehicle access points such as parking garages, loading docks, and car wash facilities. These doors offer security, ease of access, and protection against unauthorized entry.



Security Applications: Austria shutter door machines are employed to manufacture shutter doors for security applications. These doors are commonly used for banks, vaults, data centers, and sensitive areas where high-level security is required.



Agricultural Buildings: Austria shutter door machines can be used to produce shutter doors for agricultural buildings such as barns, sheds, and storage facilities. These doors provide protection against weather conditions, secure storage for agricultural equipment, and easy access for vehicles and livestock.



Public Facilities: Public facilities such as schools, hospitals, airports, and government buildings may utilize shutter doors manufactured using Austria shutter door machines. These doors offer security, ease of access, and protection against fire and other hazards.



The versatility of Austria shutter door machines allows for the production of a wide range of shutter doors customized to meet the specific requirements of different applications. The machines enable efficient manufacturing processes, ensuring the production of high-quality, durable, and reliable shutter doors for various industries and sectors.
