| NO | Type | Specification | |

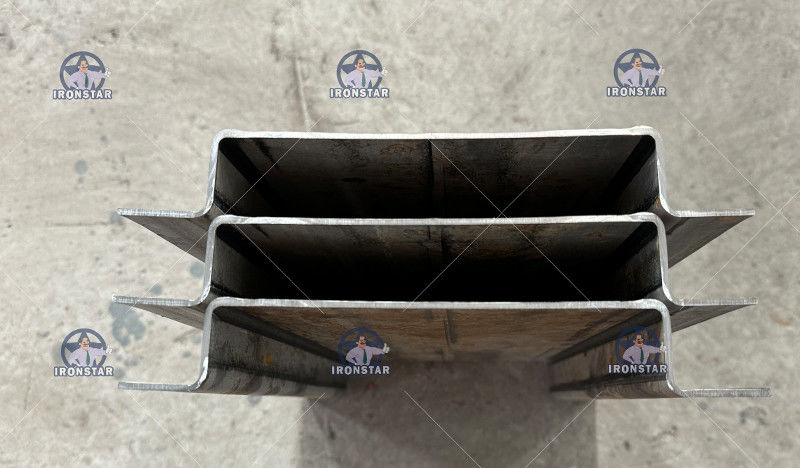

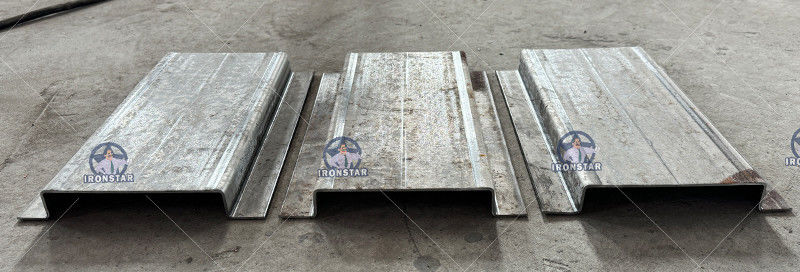

| 1 | Raw material | Type | Galvanized steel |
| Feeding width | As customer' drawing | ||
| Thickness | 2.5 mm | ||
| 2 | Decoiler | Operation | Manual work |
| Weight apacity | 3 Tons | ||

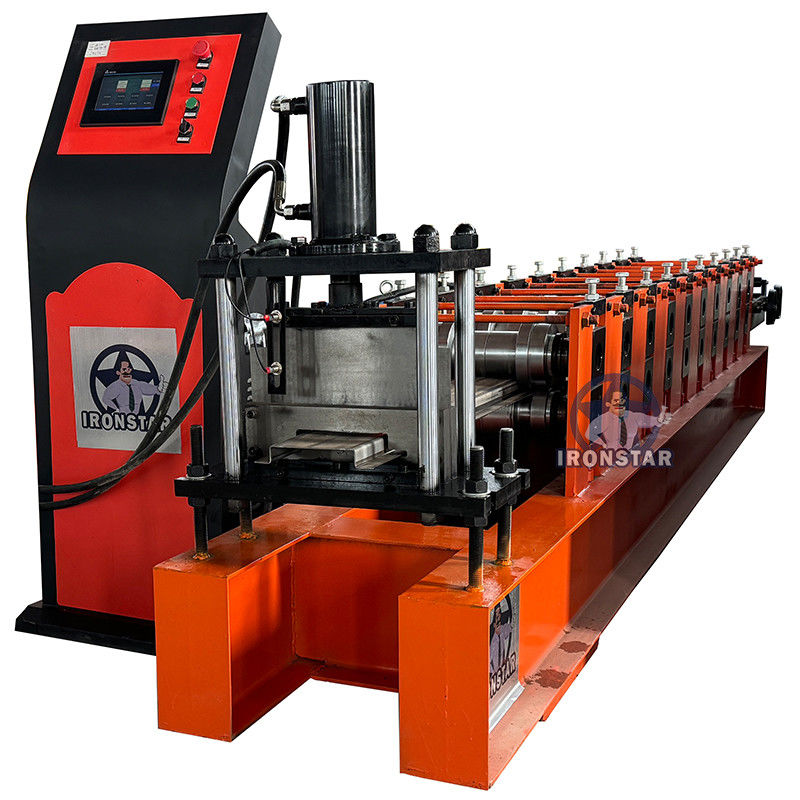

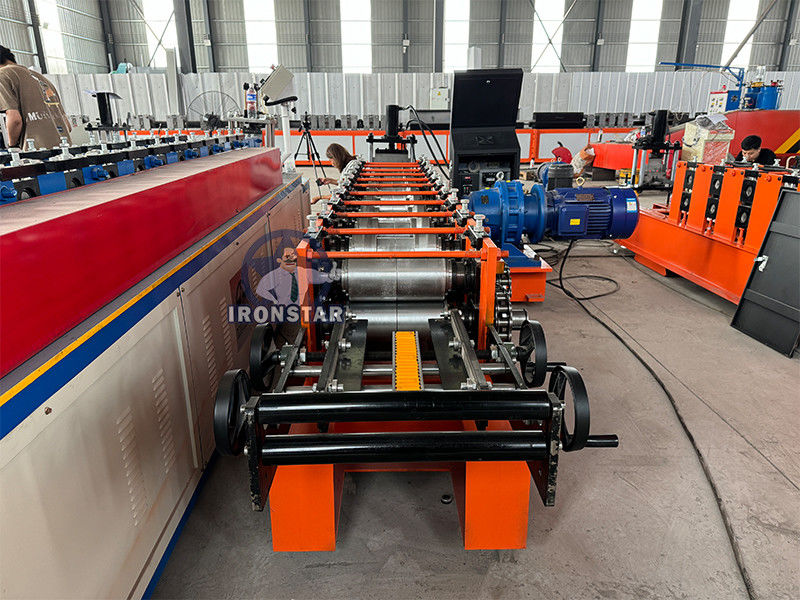

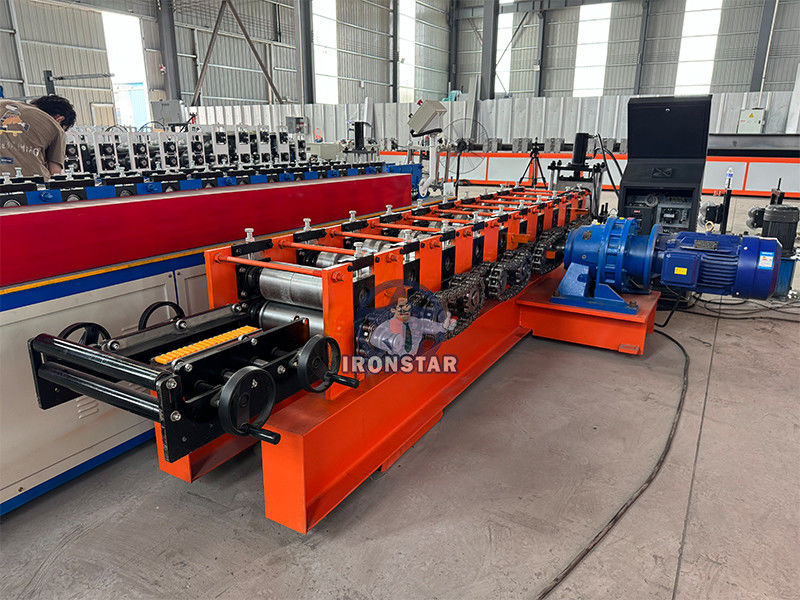

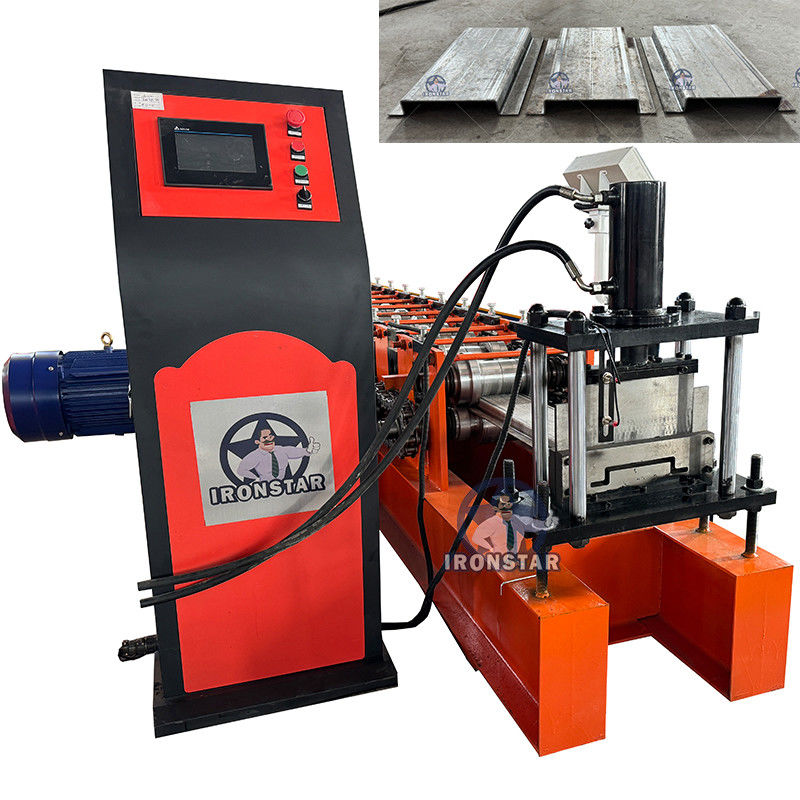

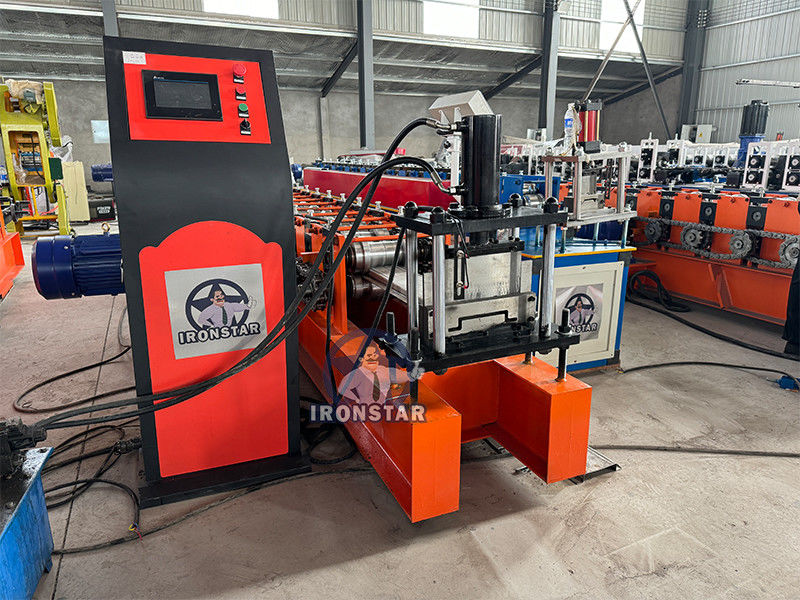

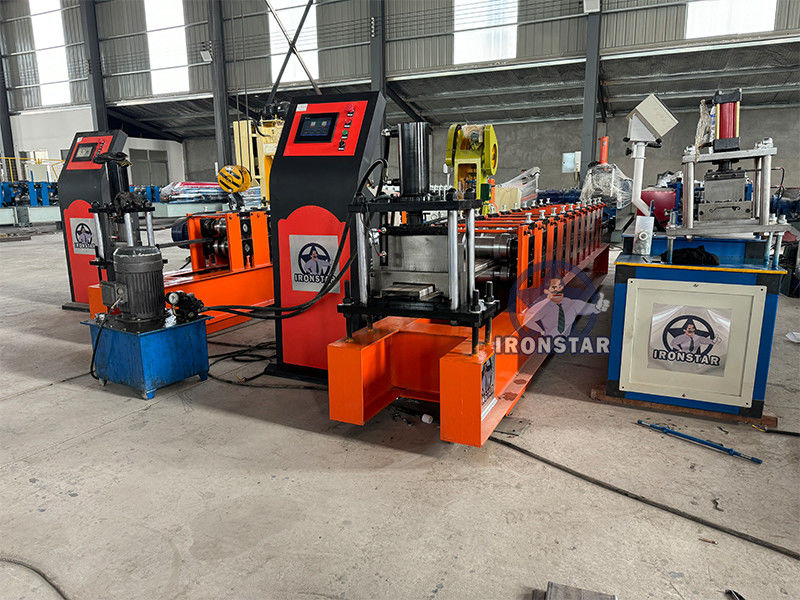

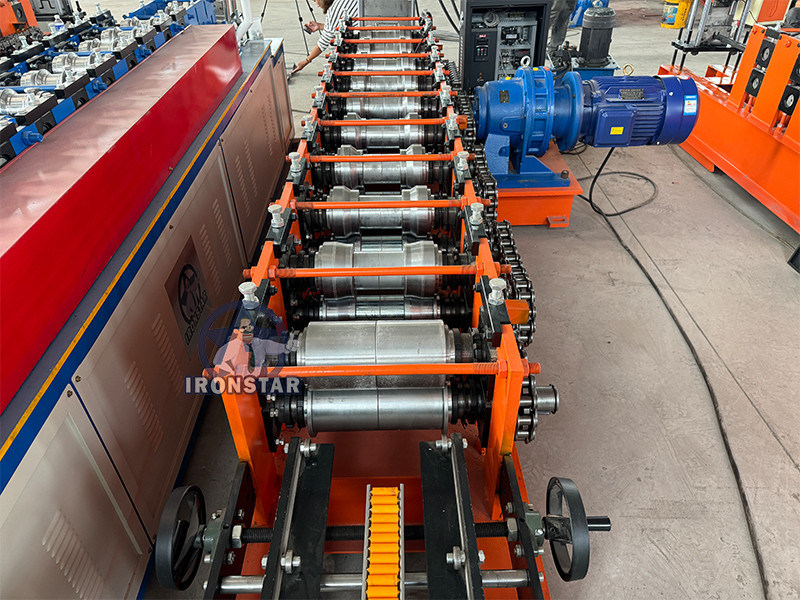

| 3 | Main body | Roller station | 10 rows |
| Diameter of shaft | 80 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | 350-H beam | ||
| Frame thickness | 20 mm | ||
| Machine size | About 6.5*0.8*1 m | ||
| Machine weight | About 4.5 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 8-20 m/min | ||

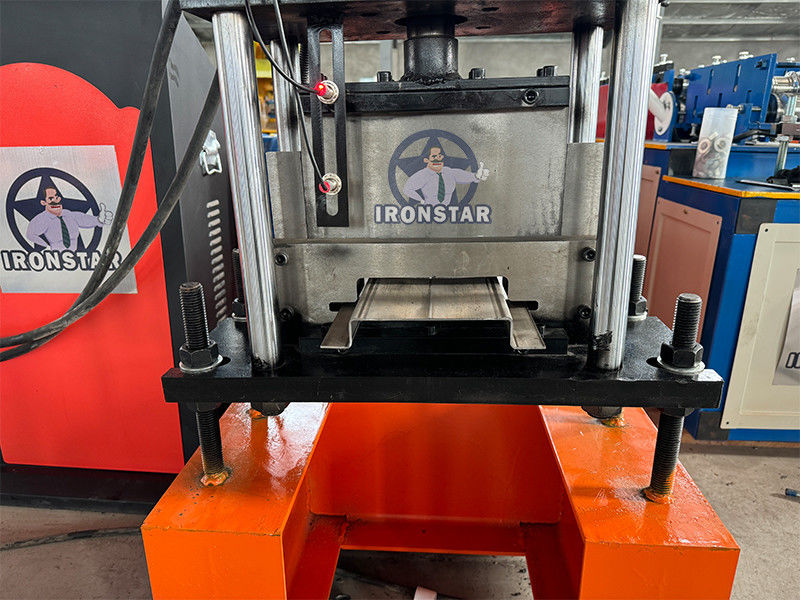

| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 2 inch |
| Main motor | 15 KW | ||
| Pump motor for cutter | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase or as customer' request | ||
| 6 | Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
Our products are sold all over the world, you can rest assured.
