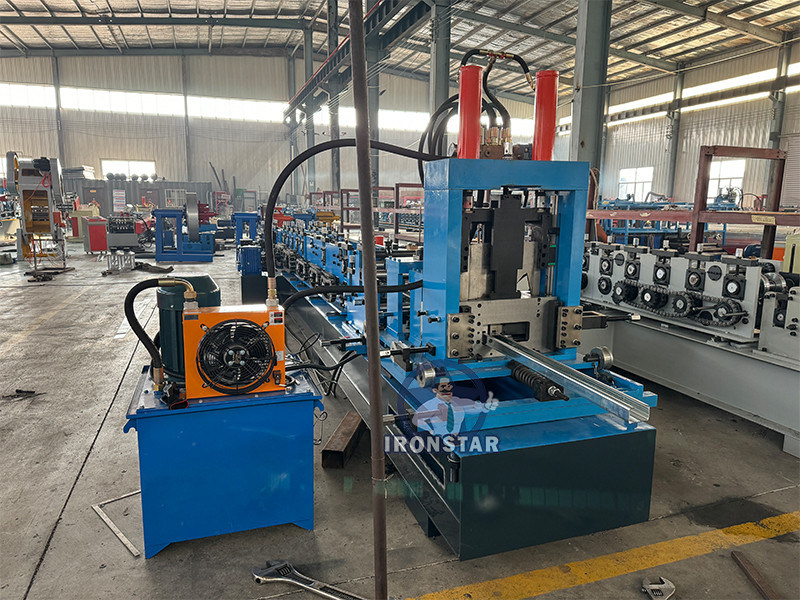

80-300mm automatic size changeable C purlin making machine

Short Description:

Automatic C purlin roll forming machine popular sell in many countries, common C purlin rolling thickness from 1-3 mm, material use Galvanized steel material



We sell lots of such Automatic C purlin roll forming machine to Philippines, India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size



Automatic C purlin roll forming machine | 80-300mm automatic size changeable C purlin making machine

  • Raw material:Galvanized steel
  • Warranty:3 years
  • Export port:Tianjin port
  • Payment Terms:T/T, L/C, D/A, D/P
  • Container:40 feet container
  • Working days:60 working days

Diameter of Automatic C purlin roll forming machine

NO Type Specification
1 Raw material Type Galvanized steel
Feeding width As customer' drawing
Thickness 1-3 mm
2 Decoiler Operation Manual
Weight apacity 3 Tons
3 Main body Roller station 16 rows
Diameter of shaft 90 mm
Shaft material 45# with 0.05mm chrome
Roller material GCR 15
Frame 450-H beam
Frame thickness 30 mm
Machine size About 9.5*1.5*2 m
Machine weight About 9.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed 10-30 m/min hydraulic motor
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 2 inch
Main motor 22 KW
Pump motor for cutter 5.5 KW
Voltage 380V/50HZ, 3 phase or as customer' request
6 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

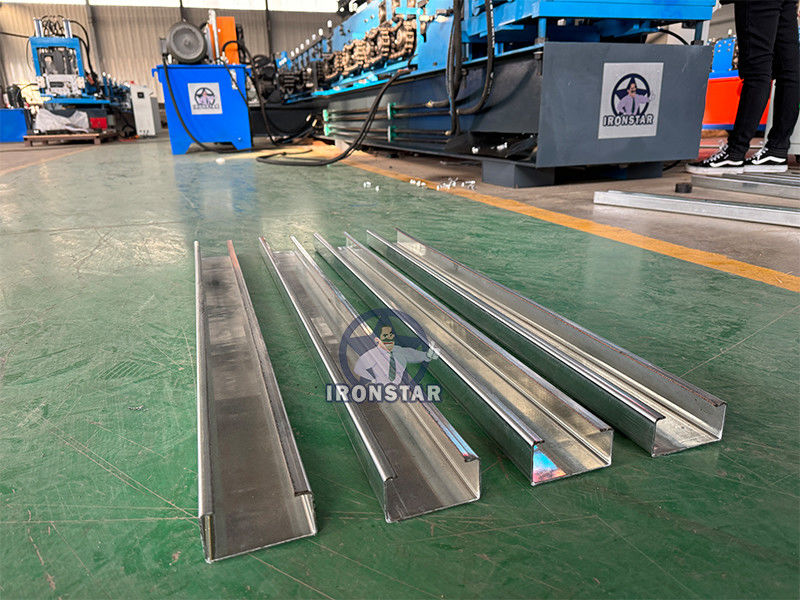

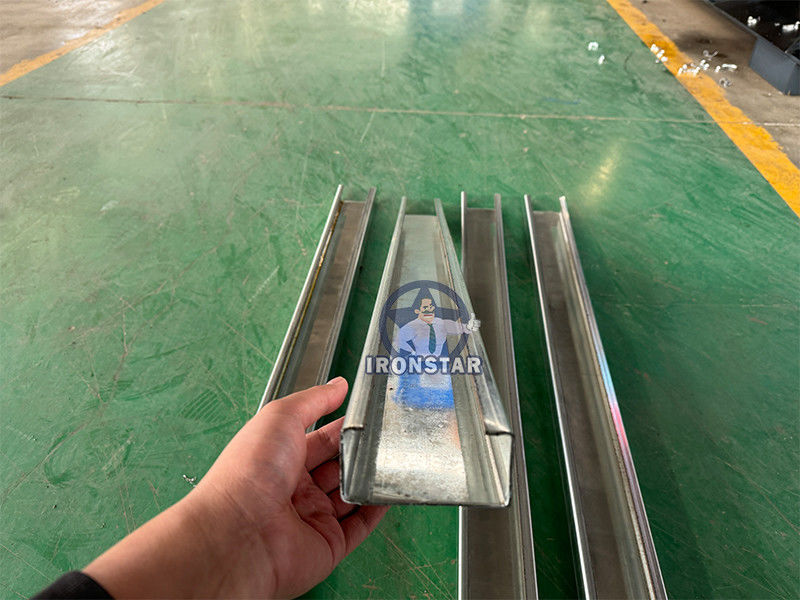

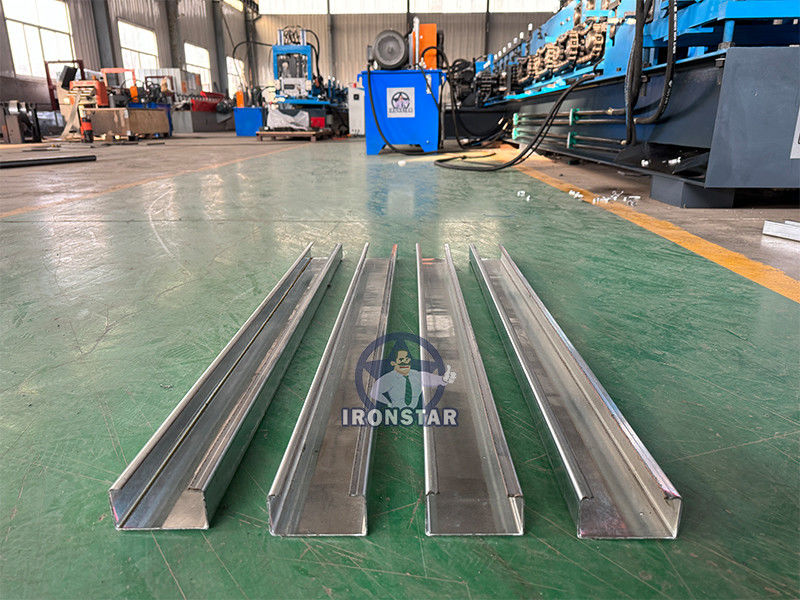

Product drawing



80-300mm automatic size changeable C purlin making machine CZ size interchangeable forming machine 0



80-300mm automatic size changeable C purlin making machine CZ size interchangeable forming machine 1



80-300mm automatic size changeable C purlin making machine CZ size interchangeable forming machine 2

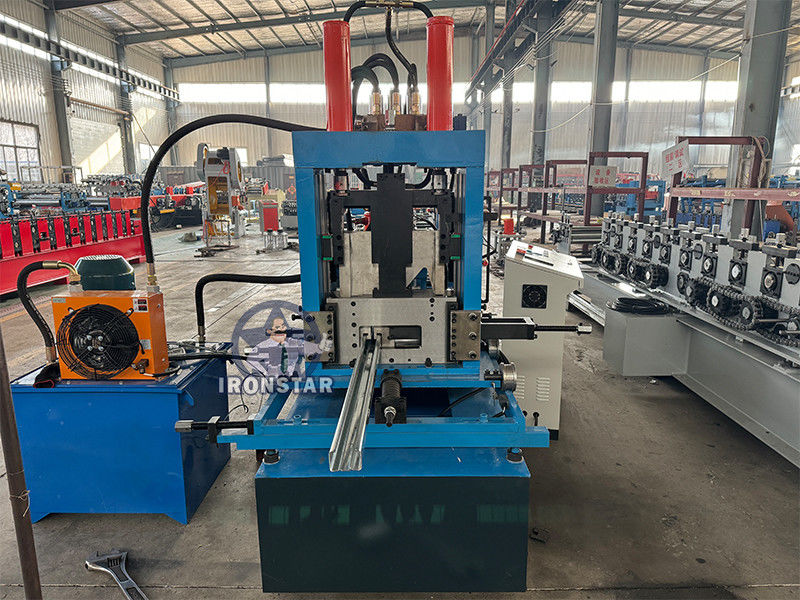

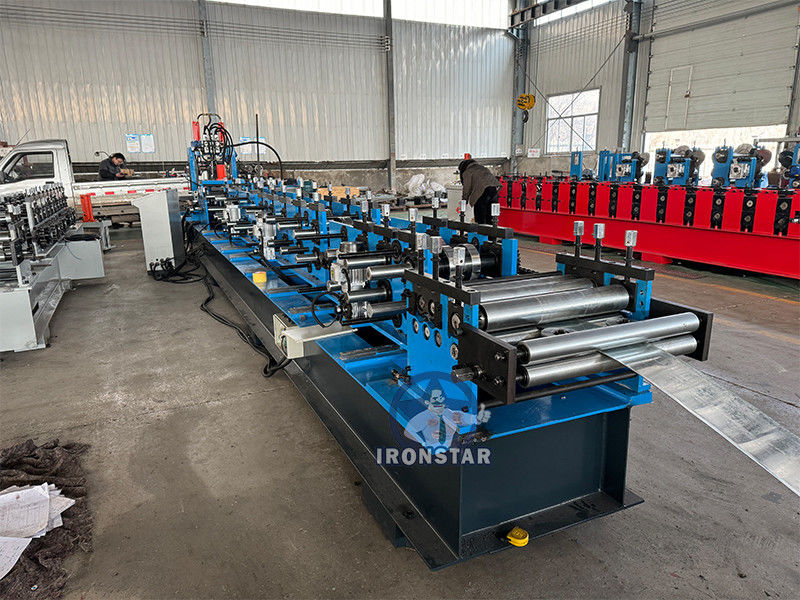

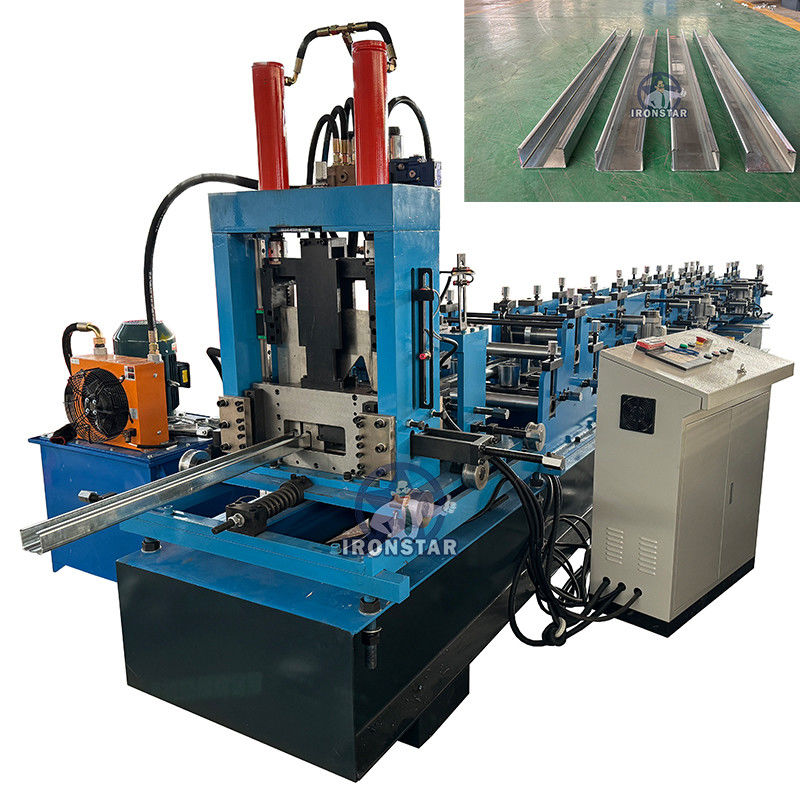

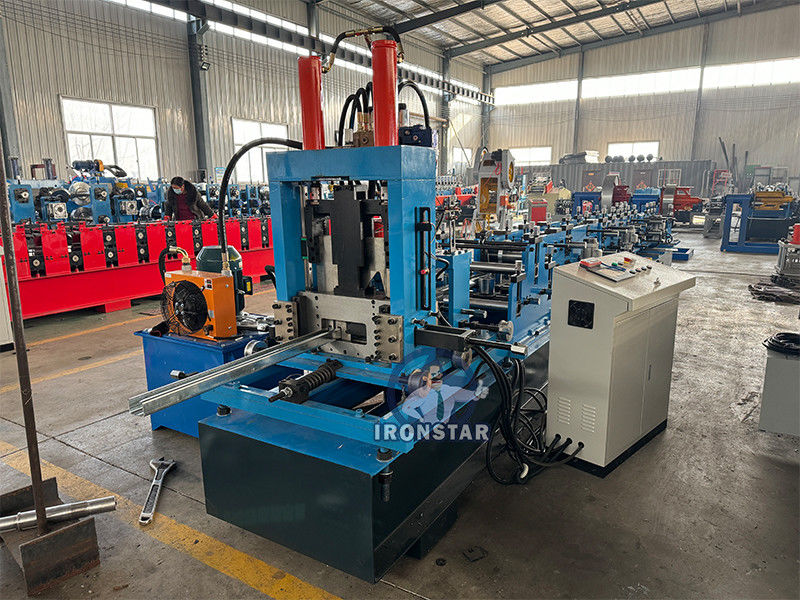

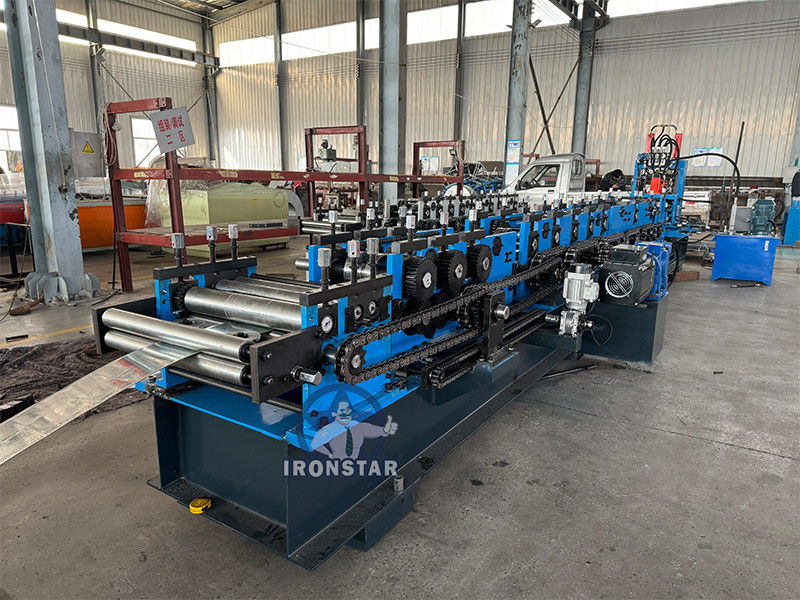

Roll forming machine



80-300mm automatic size changeable C purlin making machine CZ size interchangeable forming machine 3



80-300mm automatic size changeable C purlin making machine CZ size interchangeable forming machine 4



80-300mm automatic size changeable C purlin making machine CZ size interchangeable forming machine 5



80-300mm automatic size changeable C purlin making machine CZ size interchangeable forming machine 6



80-300mm automatic size changeable C purlin making machine CZ size interchangeable forming machine 7



Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 60 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 40 feet container to hold.
