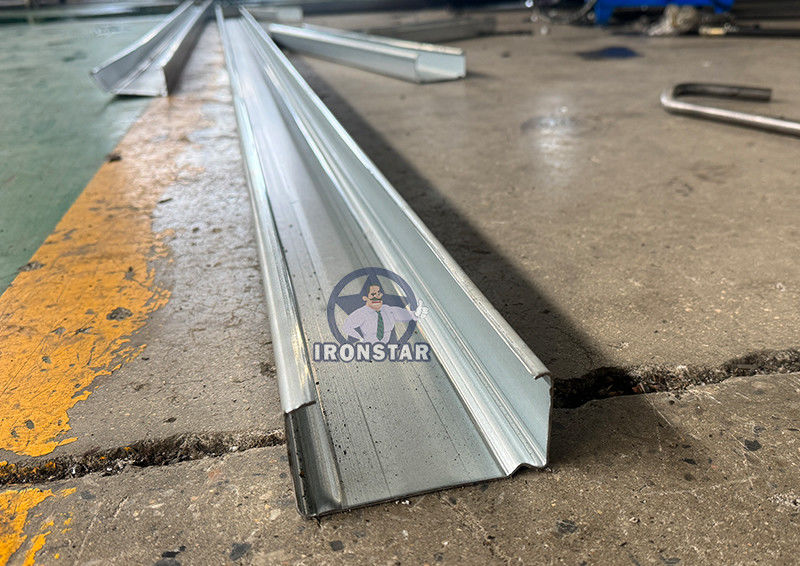

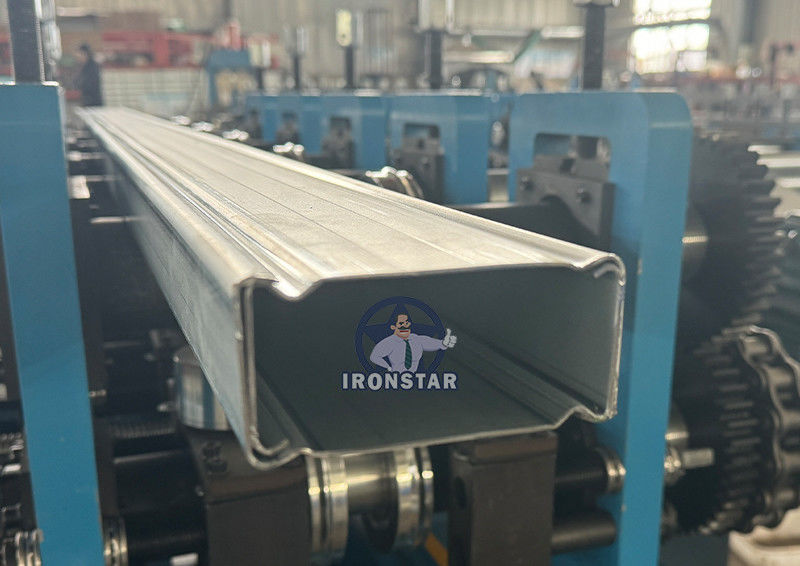

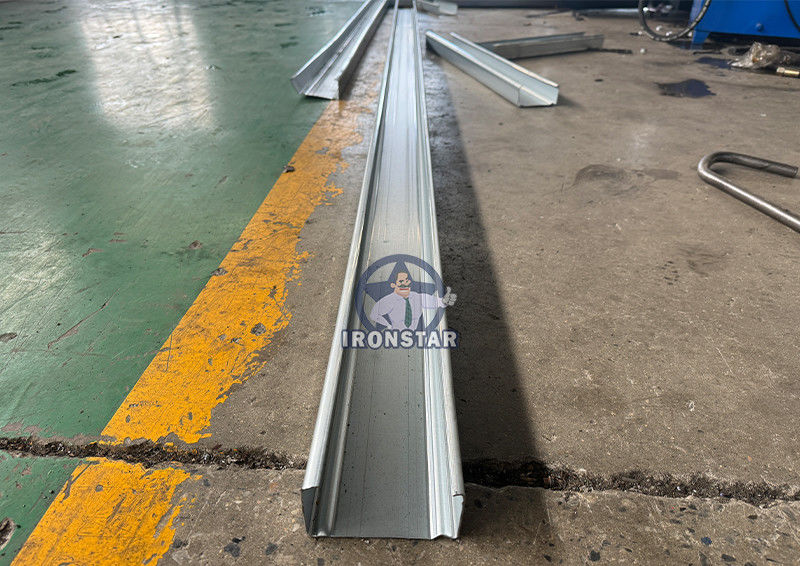

Goods sheft roll forming machine popular sell in many countries, common C purlin rolling thickness from 1-3 mm, material use Galvanized steel material
We sell lots of such Automatic Goods sheft roll forming machine to Philippines, India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size

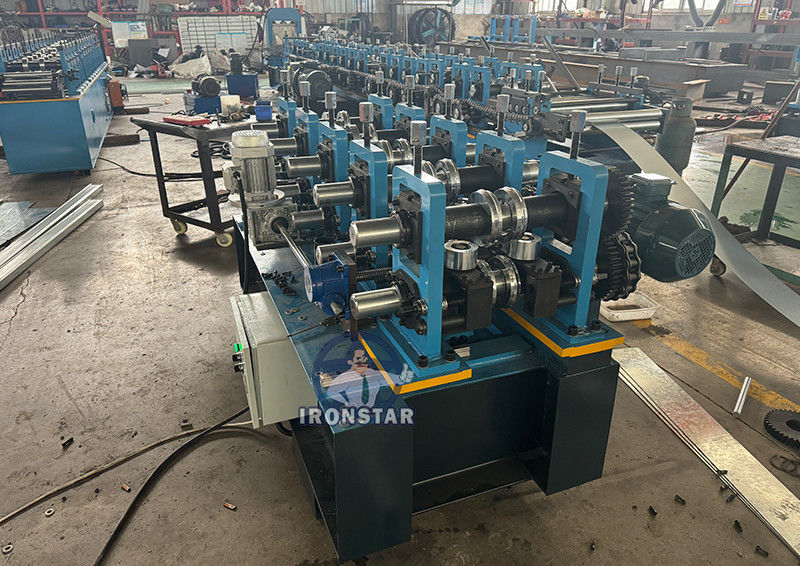

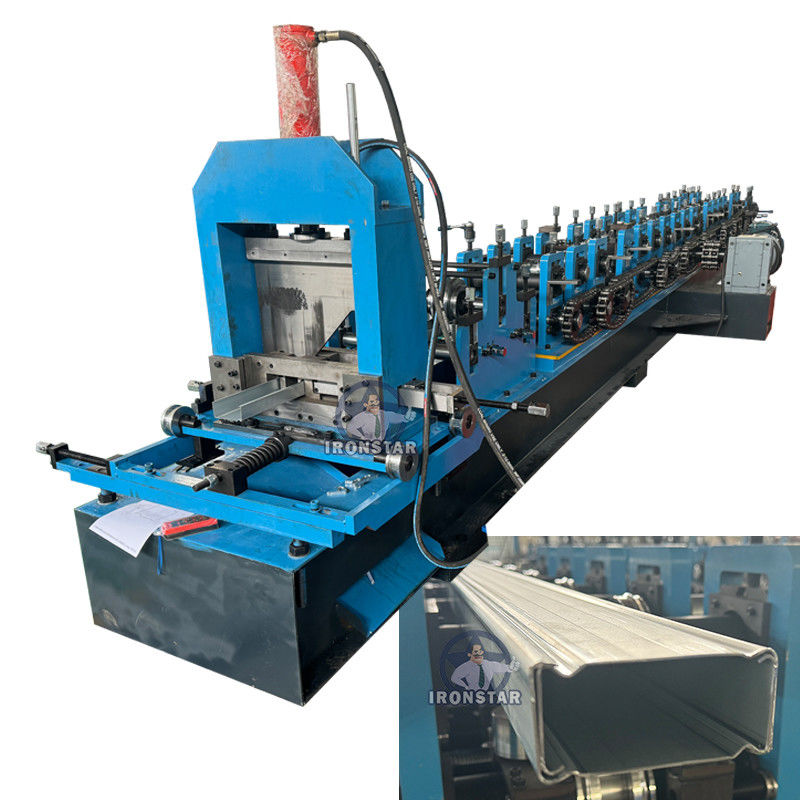

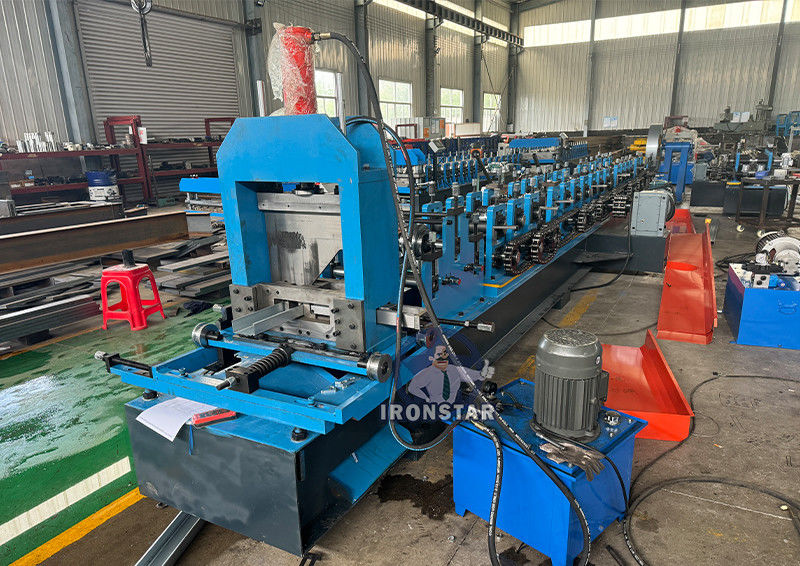

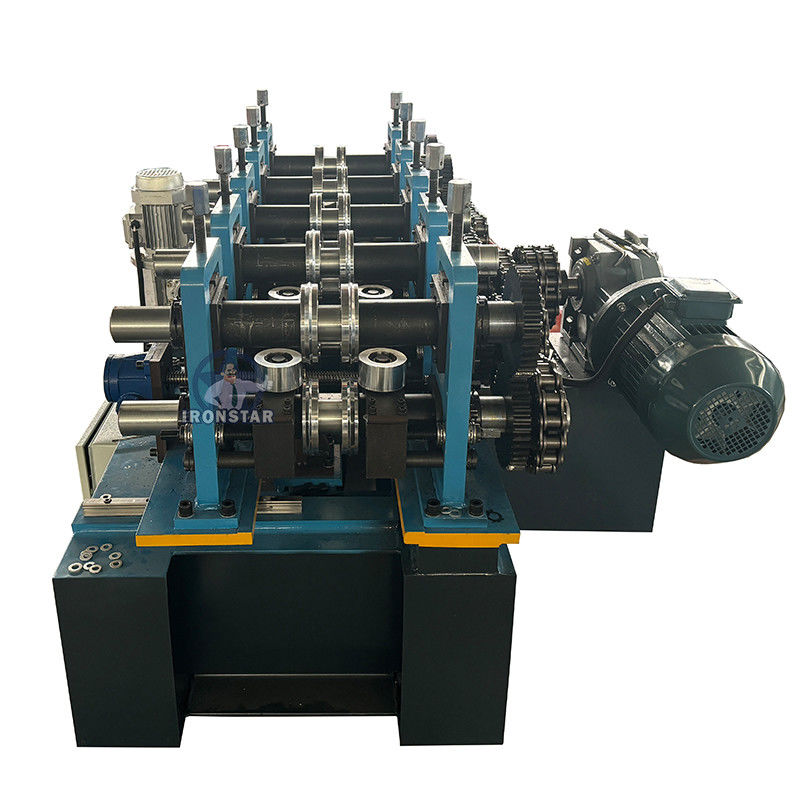

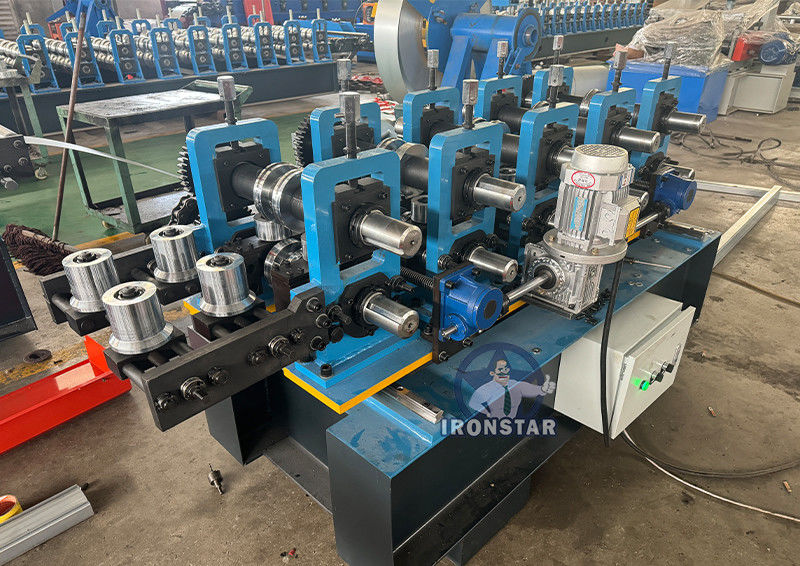

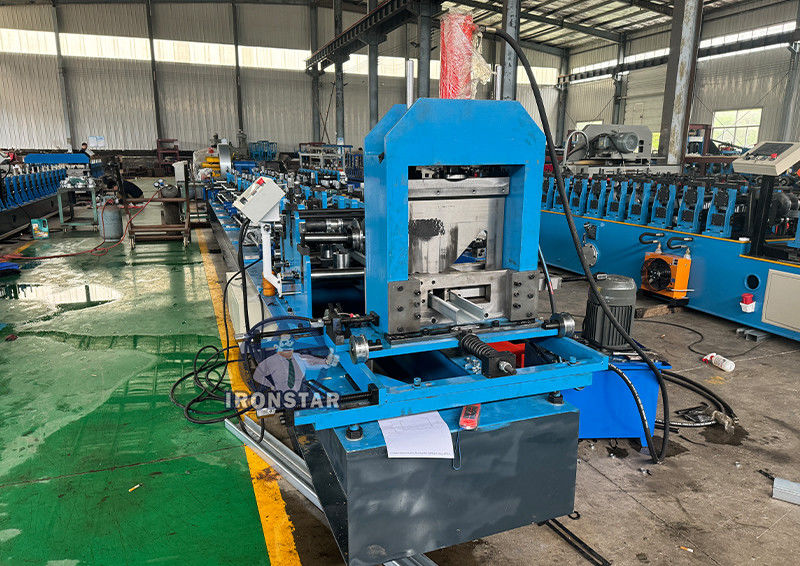

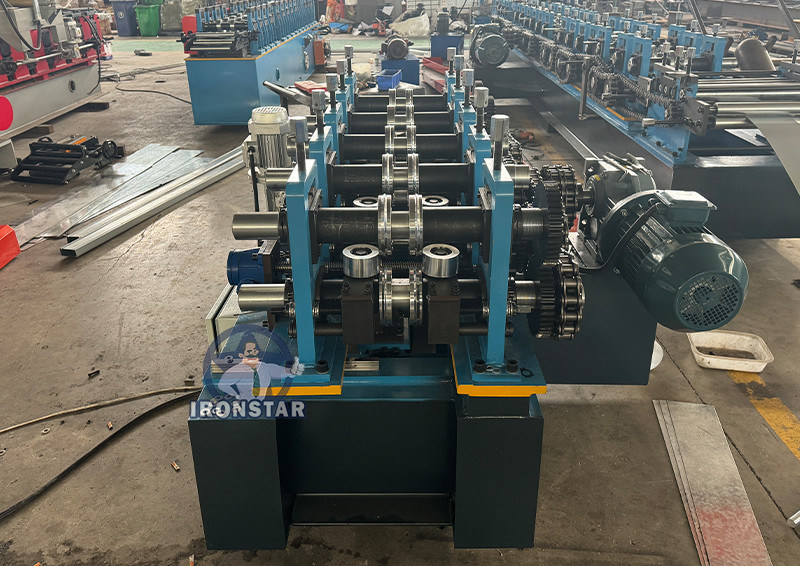

Automatic Goods sheft roll forming machine
| NO | Type | Specification | |
| 1 | Raw material | Type | Galvanized steel |
| Feeding width | As customer' drawing | ||
| Thickness | 1-3 mm | ||
| 2 | Decoiler | Operation | Manual |
| Weight apacity | 3 Tons | ||

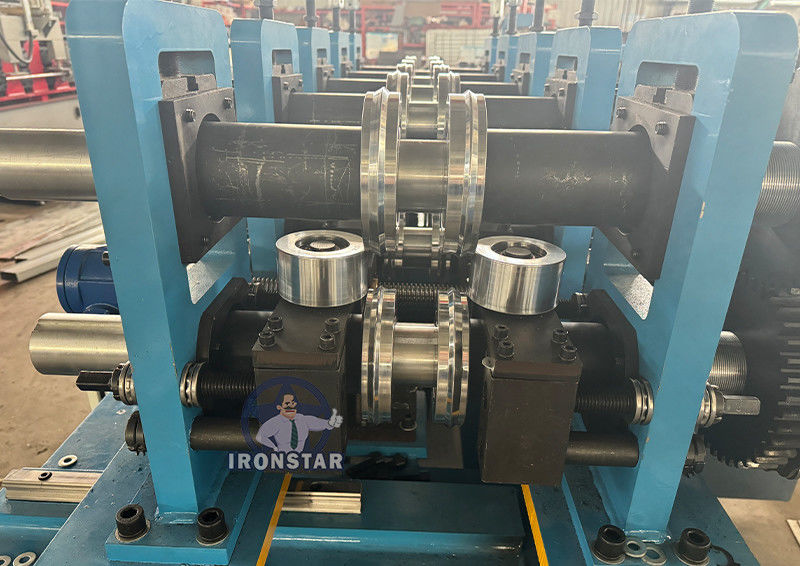

| 3 | Main body | Roller station | 16 rows |
| Diameter of shaft | 90 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | GCR 15 | ||
| Frame | 450-H beam | ||
| Frame thickness | 30 mm | ||
| Machine size | About 9.5*1.5*2 m | ||
| Machine weight | About 9.5 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | 10-30 m/min hydraulic motor | ||

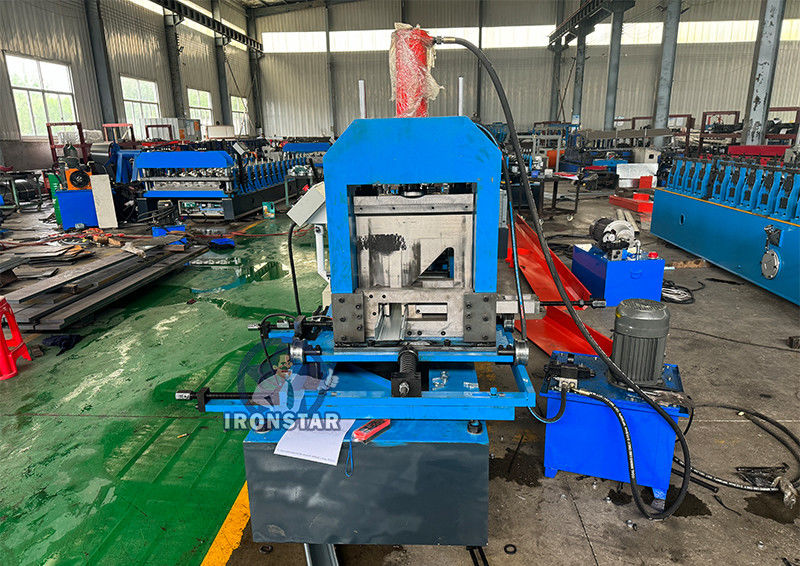

| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 2 inch |
| Main motor | 22 KW | ||
| Pump motor for cutter | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase or as customer' request | ||
| 6 | Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 60 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 40 feet container to hold.
Our products are sold all over the world, you can rest assured.
