Customized Steel Sheet 0.3-0.8mm Automatic Ribs Tuff Rib Metal Roof Roll Forming Machine AG Panel Roll Forming Machine

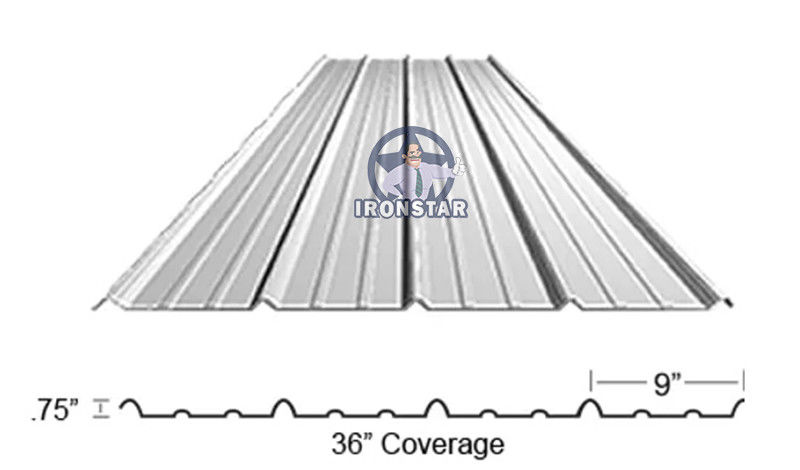

AG panel roll forming machine product drawing
AG Panel is a most affordable and popular choice for residential metal roofing and multi-use wall and roof panel used in metal building applications.especially in the Southwest.
Tuff-Rib Panel is a light gauge through fastener roof tile and wall panel that is agreat choice forcommercial,industrial, and agricultural.

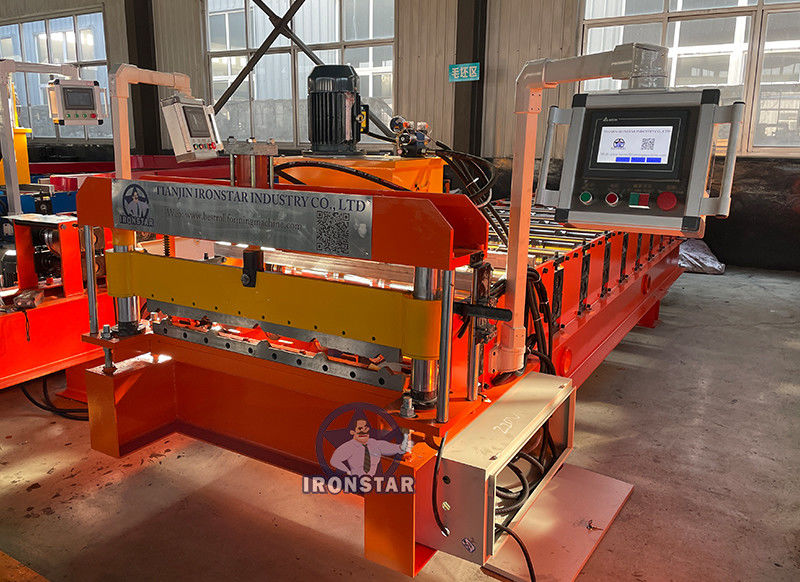

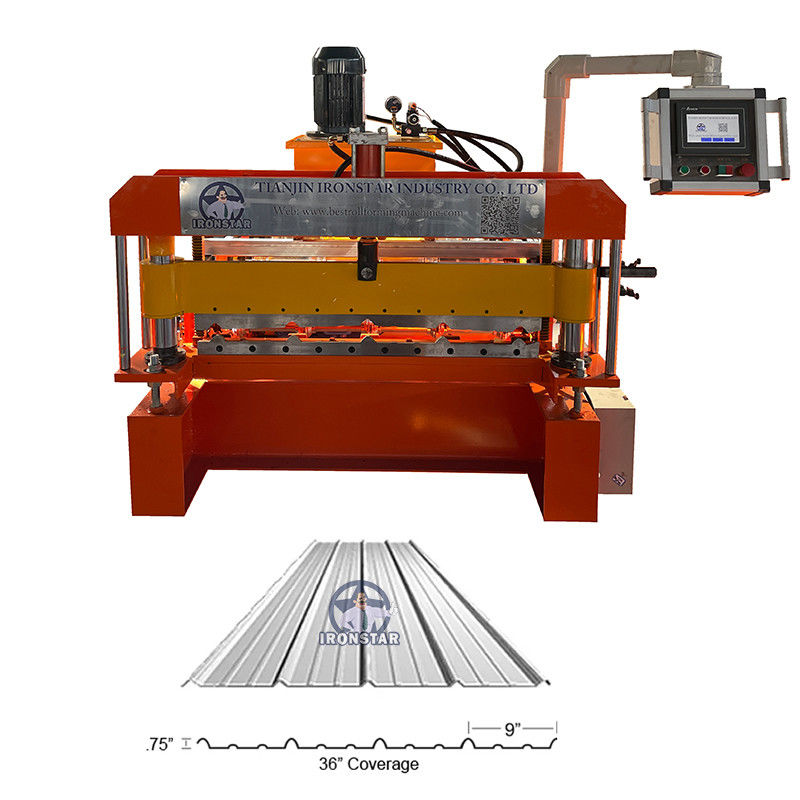

AG panel roll former forming machine produce 36″ width. Rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |
Main body | Roller station | 11-13 rows |
| Diameter of shaft | 70 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | 360mm C-beam | ||
| Frame thickness | 16 mm | ||
| Machine size | About 5.8*1*1.5 m | ||
| Machine weight | About 4 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 8-20 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 5 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request

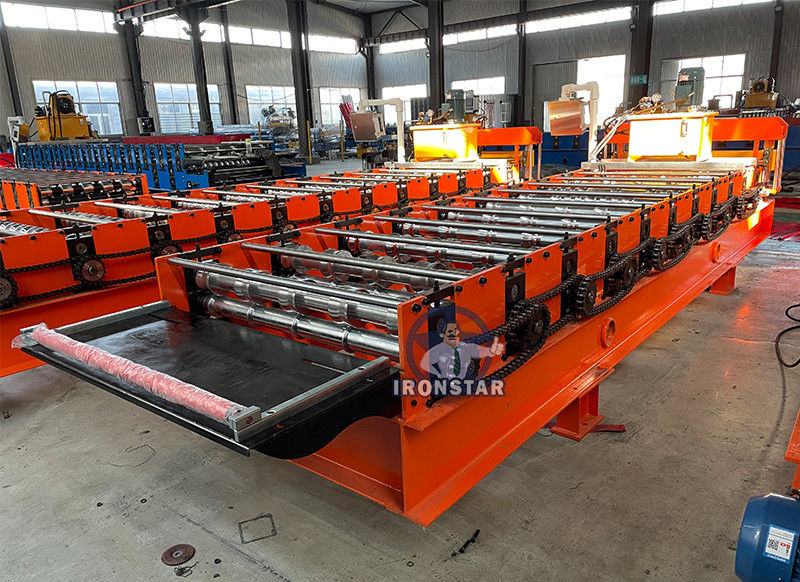

Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

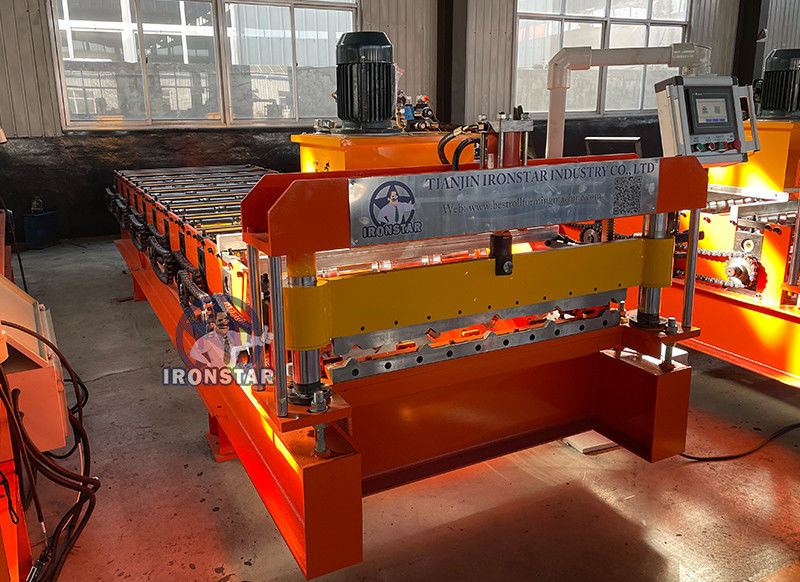

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
AG Panel is a popular type of metal roofing or siding panel that is commonly used in agricultural, commercial, and residential construction. Here is a description of AG Panel and its key features:
Profile: AG Panel features a trapezoidal or ribbed profile with alternating high and low ribs. The high ribs provide strength and rigidity to the panel, while the low ribs create an aesthetically pleasing appearance and enhance water shedding capabilities.
Material: AG Panel is typically made from durable and corrosion-resistant materials such as galvanized steel or aluminum. The use of these materials ensures longevity and resistance to harsh weather conditions.
Size and Dimensions: AG Panel comes in various sizes and dimensions, allowing flexibility in different construction projects. The length, width, and thickness of the panels can vary based on project requirements and building codes.
Installation: AG Panels are installed using fasteners, such as screws or nails, which are typically placed through the high ribs of the panel. The panels are overlapped during installation to provide a weather-tight seal and prevent water infiltration. The installation process may vary depending on the specific manufacturer's guidelines and project requirements.
Versatility: AG Panel is versatile and can be used for both roofing and siding applications. It is commonly used in agricultural buildings, barns, warehouses, industrial structures, residential homes, and commercial buildings. The panels can be installed vertically or horizontally, depending on the desired aesthetic and functional requirements.
Weather Resistance: AG Panel is designed to withstand various weather conditions, including high winds, rain, snow, and hail. The ribbed profile and overlapping installation method provide enhanced strength and water shedding capabilities, ensuring the protection of the underlying structure.
Energy Efficiency: AG Panel can contribute to the energy efficiency of a building. It can be coated with reflective finishes or applied with insulation materials to increase thermal resistance and reduce heat transfer, thereby improving energy efficiency and potentially lowering heating and cooling costs.
Color Options: AG Panel is available in a wide range of colors and finishes, allowing for customization and coordination with the overall building design and aesthetics.
AG Panel is a durable, versatile, and visually appealing option for roofing and siding applications in agricultural, commercial, and residential projects. Its strength, weather resistance, and ease of installation make it a popular choice for a variety of construction applications.
AG Panel finds application in various construction projects, primarily for roofing and siding purposes. Here are some common applications of AG Panel:
Agricultural Buildings: AG Panel is widely used in agricultural structures such as barns, farm sheds, poultry houses, and storage buildings. Its durability and weather resistance make it well-suited for protecting livestock, equipment, and crops from the elements.
Commercial Buildings: AG Panel is commonly utilized in commercial buildings like warehouses, industrial facilities, retail stores, and workshops. It provides a cost-effective and durable roofing or siding solution that can withstand the demands of commercial environments.
Residential Homes: AG Panel is increasingly used in residential construction, particularly for roofing and siding applications. Its versatility and aesthetic appeal make it a popular choice for homeowners seeking a durable and visually pleasing exterior for their houses.
Institutional Buildings: AG Panel is suitable for institutional buildings such as schools, community centers, and government facilities. It offers long-lasting protection and can withstand heavy use, making it a practical choice for these types of structures.
Recreational Facilities: AG Panel is employed in the construction of recreational facilities like sports complexes, gymnasiums, and recreational centers. Its strength and durability ensure the structural integrity of these buildings while providing an attractive appearance.
Retail and Commercial Roofing: AG Panel is often used for the roofing of retail stores, shopping centers, and other commercial establishments. Its quick installation, durability, and cost-effectiveness make it an efficient choice for large-scale roofing projects.
Retrofitting and Renovations: AG Panel can be used for retrofitting or renovating existing buildings. It offers a practical solution for upgrading outdated roofs or deteriorating siding, providing improved protection and a refreshed appearance.
Agricultural Roofing: AG Panel is commonly used for roofing applications in agricultural settings, including livestock shelters, silos, and grain storage facilities. Its weather resistance and durability make it suitable for protecting agricultural assets.
Exterior Wall Cladding: AG Panel can be utilized as an exterior wall cladding material to enhance the appearance and protect the structural integrity of buildings. It provides a visually appealing finish while offering durability and resistance to weather conditions.
Industrial Structures: AG Panel is well-suited for industrial structures such as factories, warehouses, and manufacturing plants. Its strength, durability, and low maintenance requirements make it suitable for heavy-duty applications.
Overall, AG Panel is a versatile and reliable option for roofing and siding applications in a wide range of construction projects. Its durability, weather resistance, and aesthetic appeal contribute to its popularity in agricultural, commercial, and residential settings.
