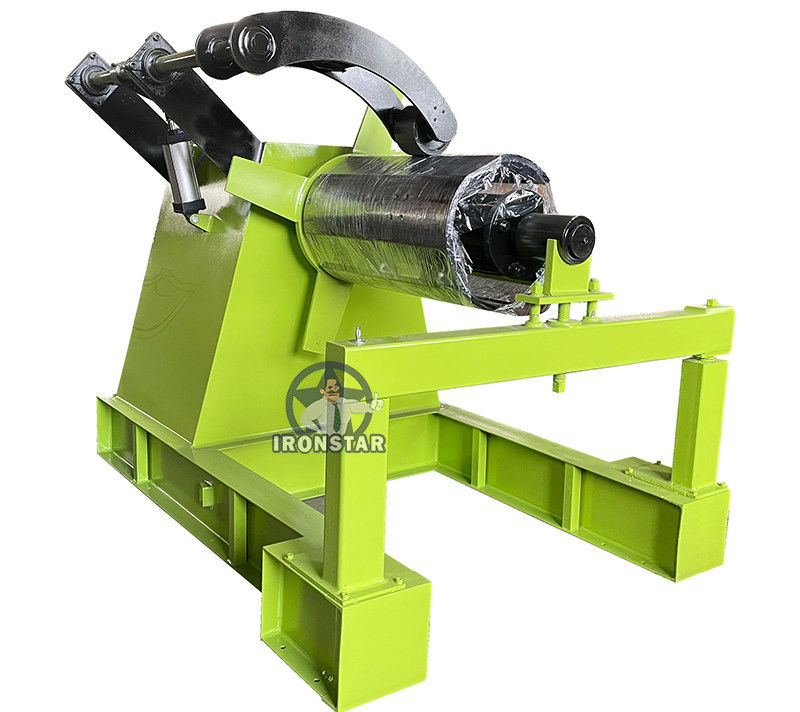

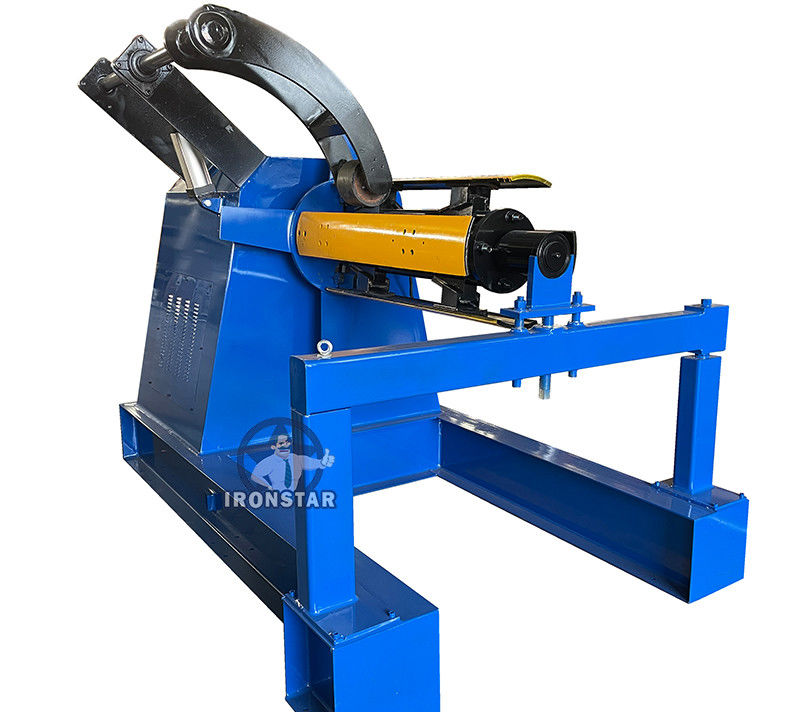

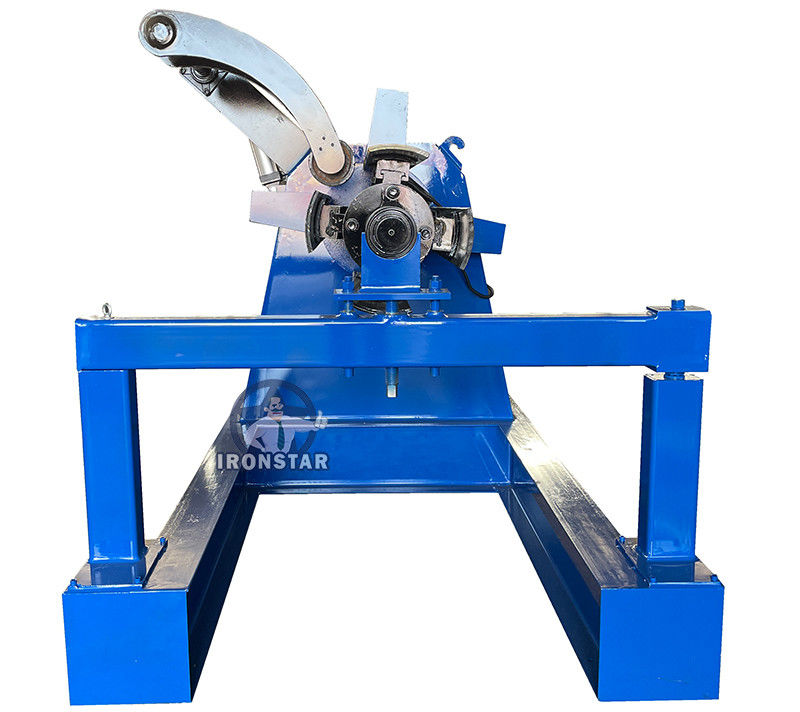

5 ton hydraulic decoiler popular sell in many countries, common coil stand capacity include 3 ton, 5 ton, 7 ton, 10 ton and 15 ton.
We sell lots of such 5 ton hydraulic decoiler to Indonesia, Philippines, India, Thailand, Russia etc, Size can customize can your need size
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel or PPGI |
| Feeding width | 1250 mm | ||
| Thickness | 0.3-3 mm | ||
|
2 |
Main body | Weight capacity | 5 Tons |
| Machine size | About 3*1.6*1.2 m | ||
| Machine weight | About 1.6 tons | ||
| Machine color | As customer need | ||
| Operation | Automatic work | ||
| Working speed | 8-20 m/min hydraulic motor | ||
| 3 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
4 |
Control box | Inverter brand | Delta made in Taiwan or SAJ |
| Language | Chinese and English or as customer' request | ||
Speed control by inverter, work with roll forming machine speed
Two modes operate: automatic and manual type
Button press operate, work easy
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the axis relax or tension
Motor Power: 4 KW Oil pressure: 8-10 MPa
Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 15 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
hydraulic decoiler is an essential component of roll forming and metal fabrication equipment used to unwind and feed metal coils into the production process. It is designed to provide controlled and efficient coil handling, ensuring a smooth and continuous supply of material.
Here is a general description of a hydraulic decoiler:
Frame Structure: The hydraulic decoiler is built on a sturdy frame structure that provides stability and support during the unwinding process. It is typically constructed from heavy-duty steel to handle the weight of the metal coils.
Hydraulic System: The decoiler is equipped with a hydraulic system that powers the various functions of the machine. It consists of hydraulic cylinders, valves, and a hydraulic power unit. The hydraulic system enables precise control over the decoiling process, including speed and tension adjustments.
Mandrel or Spindle: The decoiler features a mandrel or spindle on which the metal coil is mounted. The mandrel is driven by a hydraulic motor or gearbox, allowing it to rotate and unwind the coil. The mandrel is designed to securely hold and support the weight of the coil during unwinding.
Coil Loading and Unloading Mechanism: The hydraulic decoiler is equipped with mechanisms for easy loading and unloading of the metal coil. This can include features such as a hydraulic lift or a powered coil car to lift and position the coil onto the mandrel. Some decoilers may also have coil centering devices to ensure proper alignment.
Coil Brake and Tension Control: To maintain proper tension and control during the unwinding process, the hydraulic decoiler may have a braking system. The brake can be manually or automatically adjustable, allowing operators to set the desired tension for the coil.
Control Panel: The hydraulic decoiler is controlled through a control panel that allows operators to adjust parameters such as mandrel rotation speed, tension settings, and other operational parameters. The control panel ensures precise and safe operation of the decoiler.
Hydraulic decoilers come in various sizes and configurations to accommodate different coil sizes and weights. They are commonly used in roll forming lines, slitting lines, and other metal fabrication processes that require continuous coil feeding.
Overall, a hydraulic decoiler plays a crucial role in the efficient and controlled unwinding of metal coils, ensuring a steady supply of material for downstream production processes.
