0.7-1.2mm Thickness Deck Sheet Roll Forming Machine with 1.5" B Deck Floor Product Drawing for USA

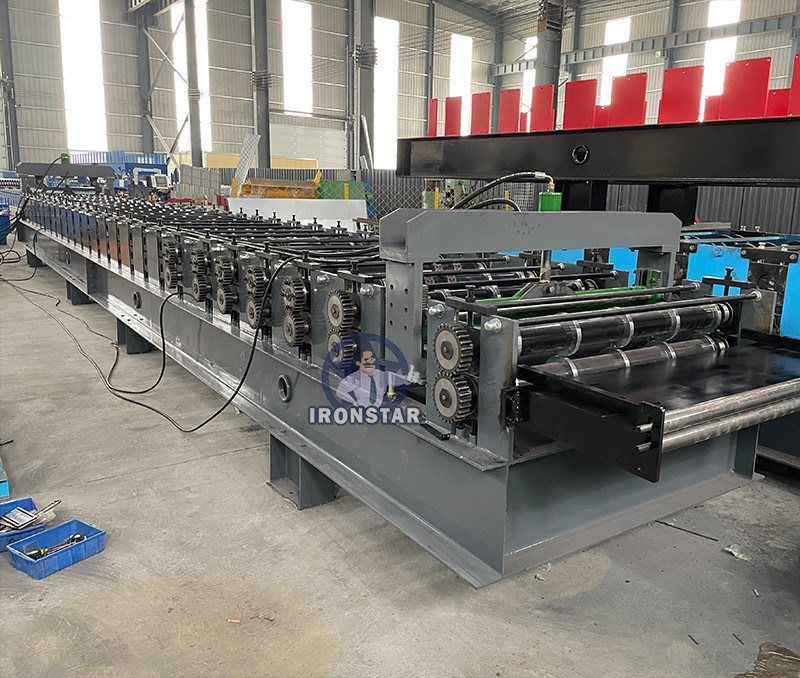

1.5" B deck floor roll forming machine is a specialized piece of equipment designed to manufacture B deck floor panels used in building construction. Here is a description of the machine and its key components:

Material Feeding System: The machine is equipped with a material feeding system that can handle steel coils. The system ensures a continuous supply of material into the roll forming process.

Decoiler: A decoiler is used to hold and unwind the steel coil, allowing for the continuous feeding of the material into the roll forming machine. It ensures a steady supply of steel for the forming process.

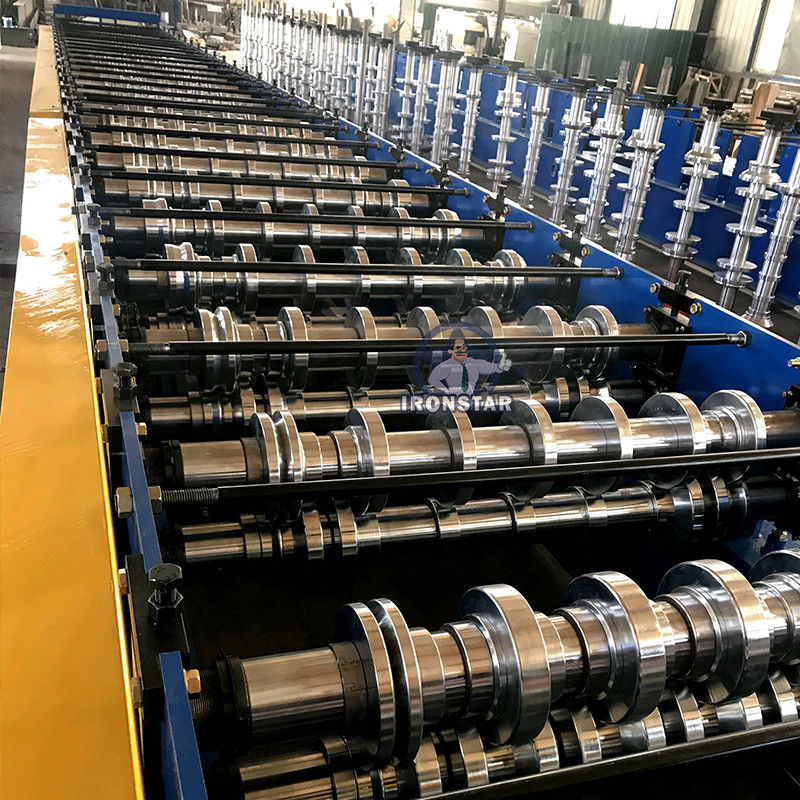

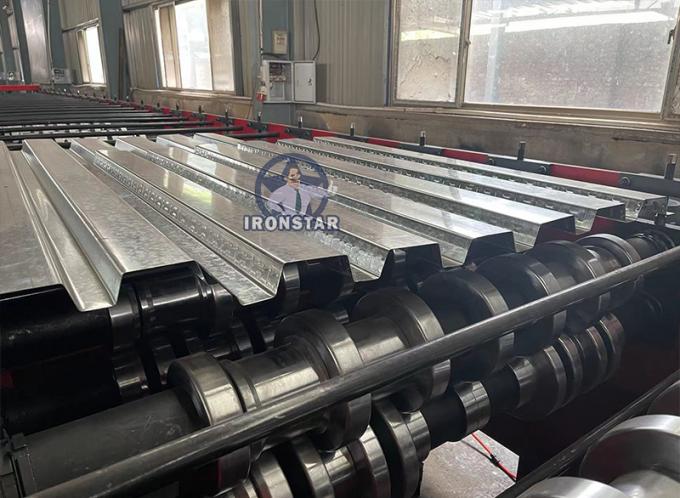

Roll Forming Stations: The roll forming machine consists of multiple roll forming stations, each containing sets of rollers that gradually shape the steel strip into the desired profile of the B deck floor panel. The rollers are designed to accurately form the specific features, dimensions, and patterns of the B deck profile.

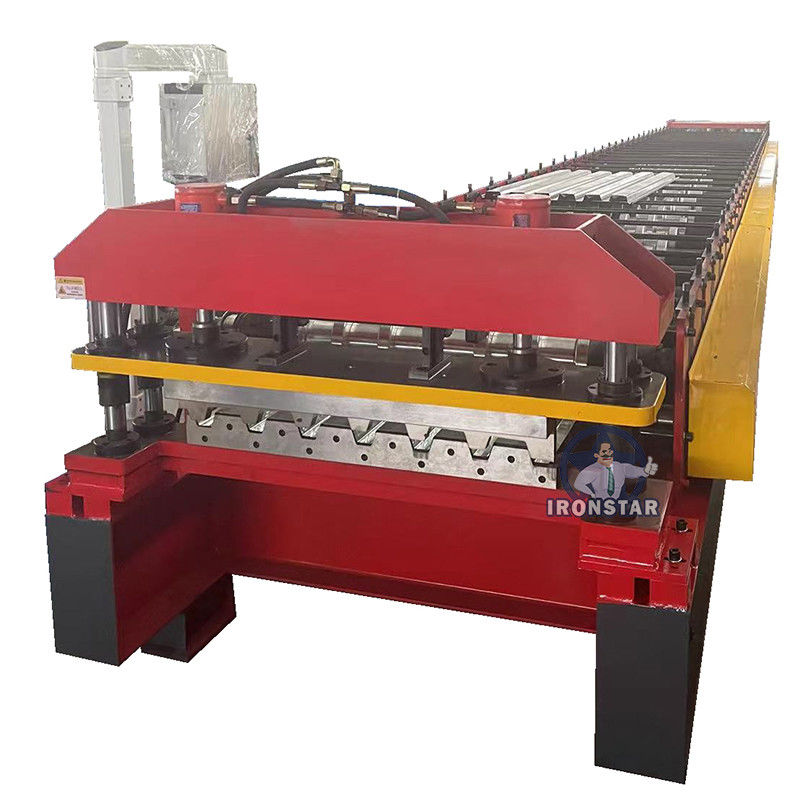

Cutting Mechanism: Once the desired length of the B deck floor panel is obtained, a cutting mechanism is employed to cut the continuous strip into individual panels. The cutting mechanism can be a flying cut-off system, hydraulic shear, or another type of cutting device.

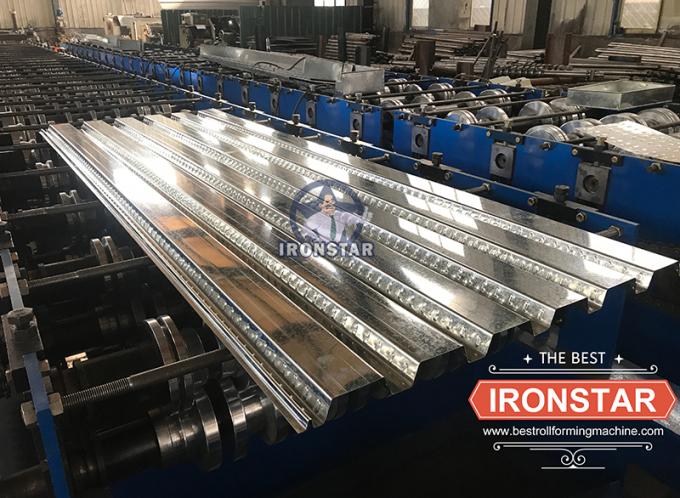

Embossing or Ribbing Stations: B deck floor panels typically have embossed or ribbed patterns on their surface for added structural strength and anti-slip properties. Some machines may include embossing or ribbing stations to create these patterns during the roll forming process.

Control System: The machine is controlled by a computerized control system that allows operators to set and adjust various parameters, such as the length, width, embossing patterns, and features of the B deck floor panels. The control system ensures precise and accurate production.

Stacking or Collecting System: After the individual B deck floor panels are cut, they are typically stacked or collected for further assembly or packaging. Some machines may include an automatic stacking system to facilitate efficient handling of the produced panels.

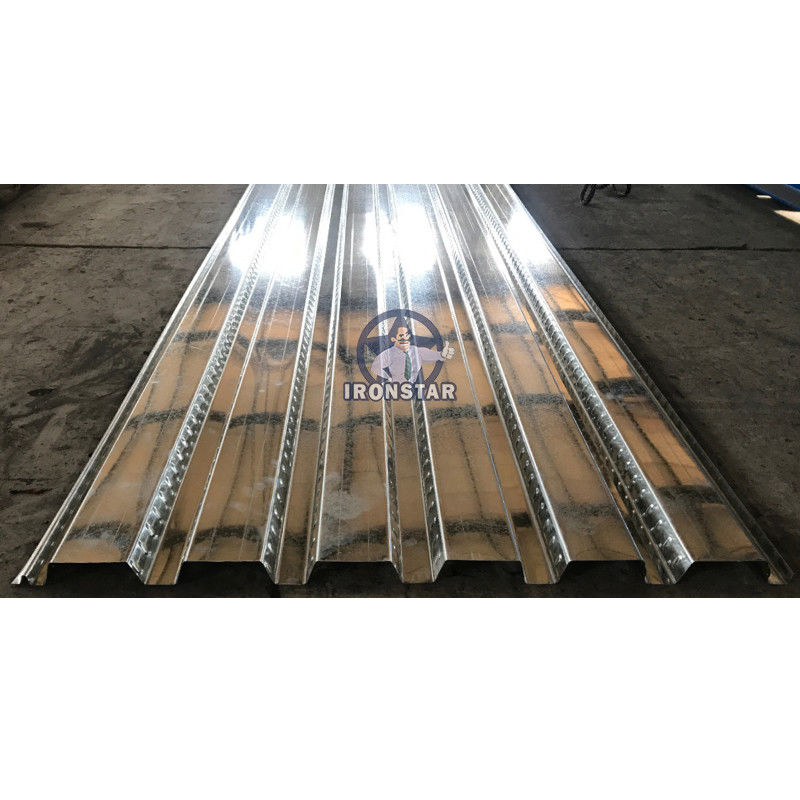

A 1.5" B deck floor roll forming machine is designed specifically to produce B deck floor panels with a ribbed profile depth of 1.5 inches. B deck floor panels are commonly used in commercial and industrial buildings for floor decking and roofing applications. They provide structural support, fire resistance, and can accommodate various loads and spans.

It's important to note that the specific features and capabilities of a 1.5" B deck floor roll forming machine may vary among manufacturers. Therefore, it is recommended to consult with suppliers or manufacturers to obtain detailed specifications and capabilities of the machine that meets your specific requirements.

1.5" B deck floor roll forming machine is primarily used in the construction industry for the production of B deck floor panels. These panels have various applications in commercial, industrial, and residential buildings. Here are some key applications of 1.5" B deck floor panels:

Floor Decking: B deck floor panels are commonly used as a structural component for floor decking systems. They provide a stable and robust base for concrete slabs or other flooring materials. B deck floor panels offer excellent load-bearing capacity, structural integrity, and fire resistance, making them suitable for multi-story buildings, parking garages, mezzanine floors, and industrial facilities.

Roofing Systems: B deck floor panels can also be used as roofing components in certain applications. They offer a durable and weather-resistant solution for low-slope roofs, canopies, and other roof structures. B deck panels provide support for insulation, waterproofing membranes, and roof coverings, effectively protecting the building from moisture and the elements.

Mezzanine Floors: B deck floor panels are commonly employed in mezzanine floor constructions. Mezzanine floors are intermediate structures that create additional usable space within a building, often used for storage, offices, or retail areas. B deck panels serve as the base flooring system for these elevated platforms, providing strength, stability, and load-bearing capacity.

Industrial Platforms and Walkways: B deck floor panels are utilized in industrial settings to create elevated platforms, catwalks, and walkways. These panels offer a sturdy and safe walking surface, allowing workers to navigate across machinery, equipment, or production areas.

Soundproofing and Acoustic Applications: B deck floor panels can be incorporated into soundproofing and acoustic systems. By installing sound insulation materials between the B deck panels and the concrete slab, they can help reduce noise transmission between floors in multi-story buildings, enhancing acoustic comfort and privacy.

Retrofitting and Renovation Projects: B deck floor panels are often used in retrofitting or renovation projects to improve the structural integrity and load-bearing capacity of existing buildings. They can be installed over existing floors to reinforce and enhance the overall structural performance.

Overall, a 1.5" B deck floor roll forming machine enables the efficient production of B deck floor panels, which find widespread application in various construction projects. These panels provide strength, stability, fire resistance, and versatility, making them suitable for a range of commercial, industrial, and residential applications.
