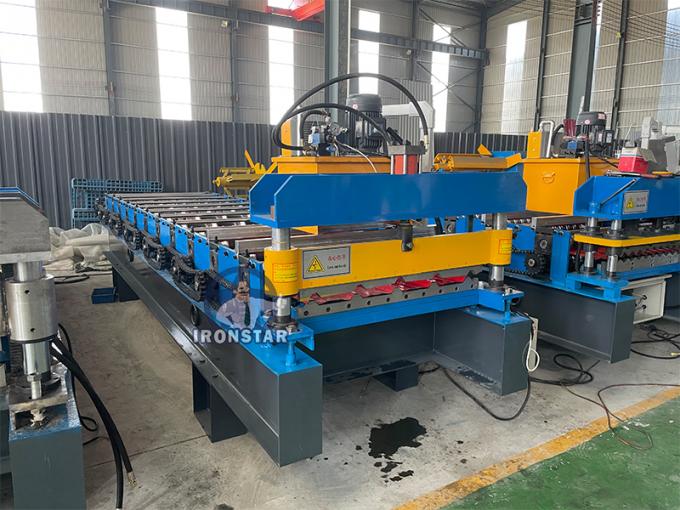

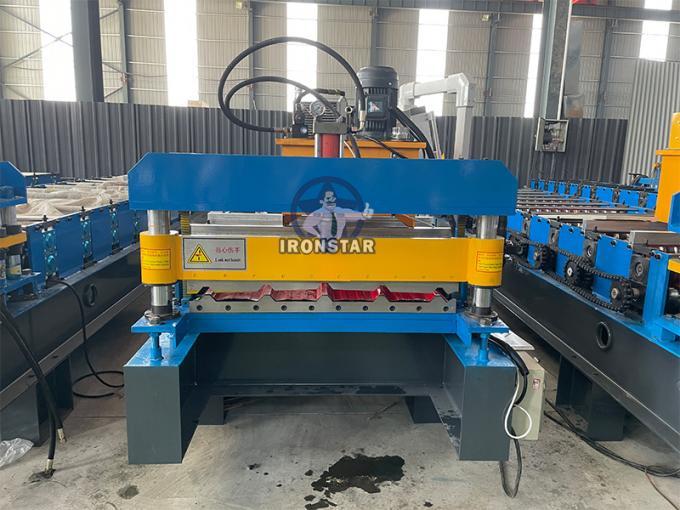

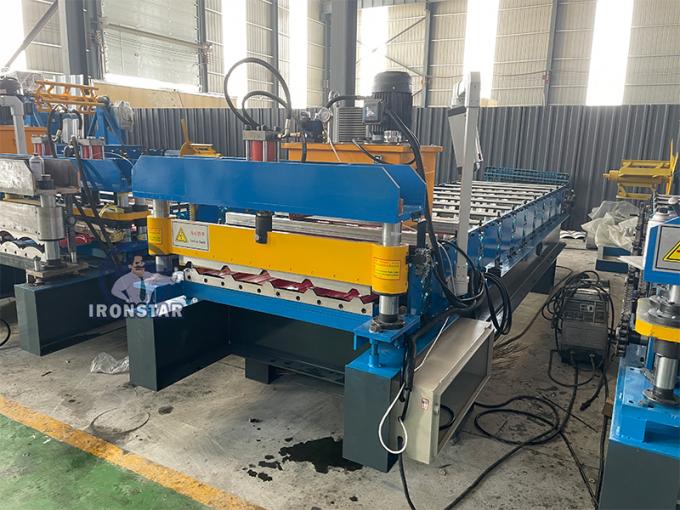

Customized 840mm Width Roof Sheet Roll Forming Machine 0.3-0.8mm Roofing Panel Roll Forming Machinemanufacturer
Long span roll forming machine is a specialized machine designed to produce long-span roofing sheets or panels with a continuous length. These roofing panels are typically used in industrial, commercial, and agricultural buildings where large spans and minimal support are required. Here is a description of the key features and components typically found in a long span roll forming machine:
Material Feeding System: The machine includes a material feeding system that can handle steel coils or sheets. The system ensures a continuous and smooth supply of material for the roll forming process.
Decoiler: The decoiler holds and unwinds the steel coil or sheet, allowing it to be fed into the machine seamlessly. Some long span roll forming machines may have a motorized decoiler for efficient material handling.

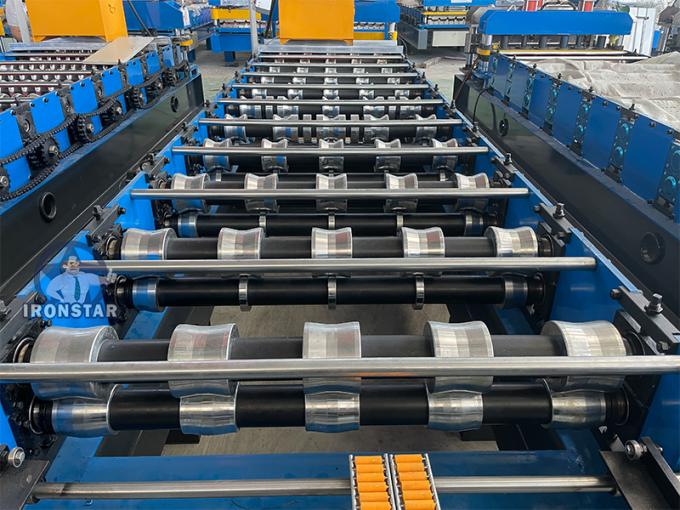

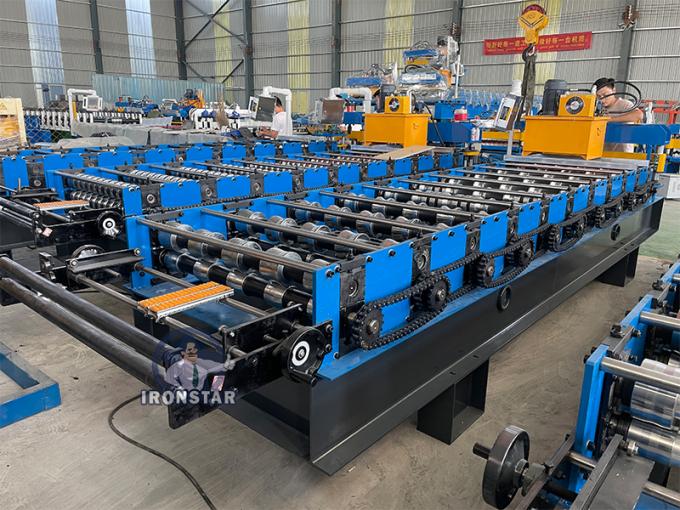

Roll Forming Stations: The machine consists of multiple roll forming stations, each equipped with sets of rollers that progressively shape the steel material into the desired profile of the long-span roofing panel. The rollers are designed to accurately form the required panel dimensions and features.
Roll Forming Process: The steel material passes through a series of roll forming stations, where the rollers gradually bend, shape, and profile the material according to the desired long-span panel design. The roll forming process can include various steps, such as pre-cutting, embossing, ribbing, and curving, depending on the specific panel requirements.

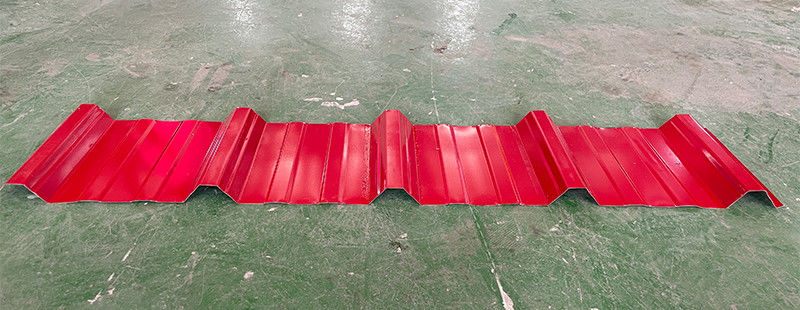

Common trapezoidal roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material
We sell lots of such trapezoidal roofing sheet roll forming machine to Guyana, South Africa, Tanzania, Nigeria, India etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size

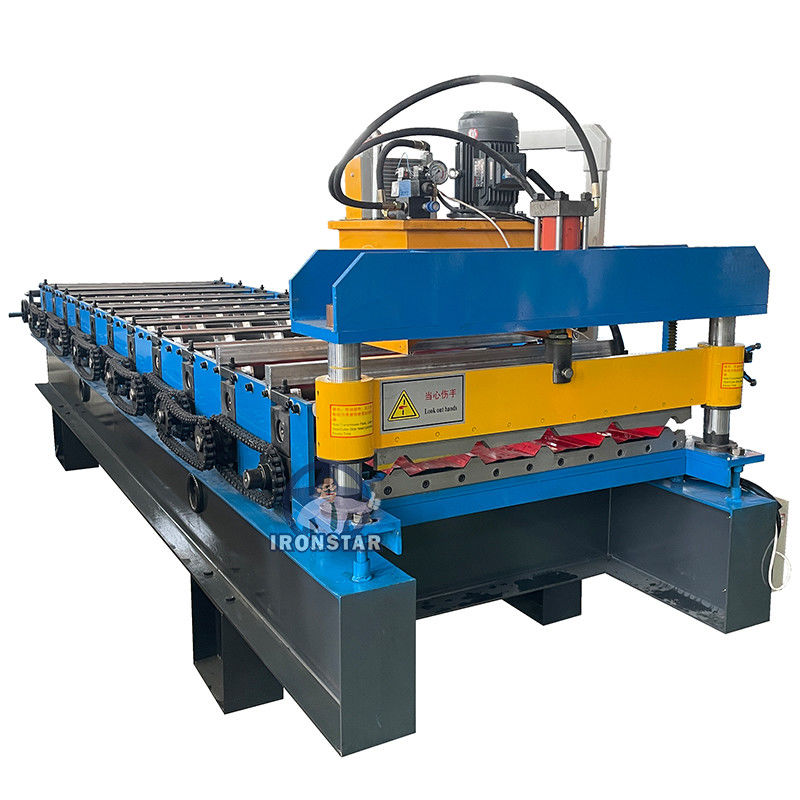

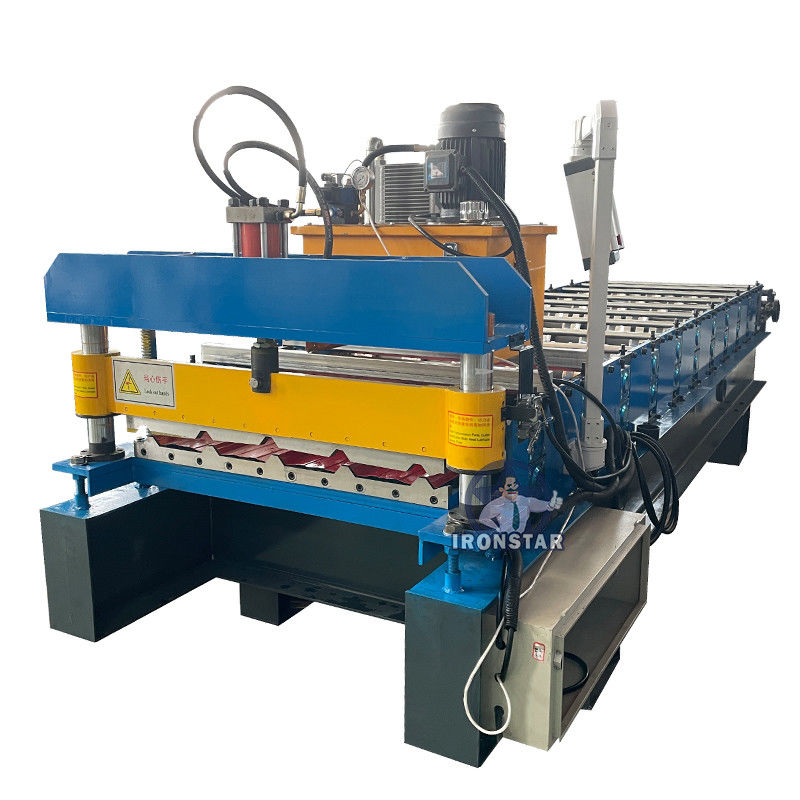

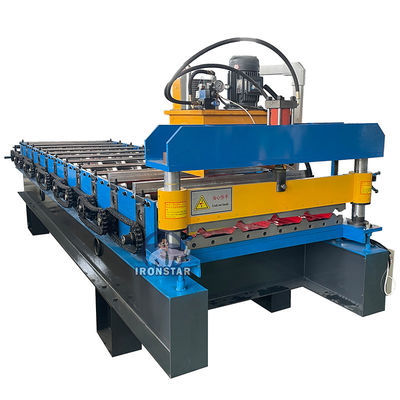

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |
Main body | Roller station | 11 rows |
| Diameter of shaft | 70 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | 360mm C-beam | ||
| Frame thickness | 16 mm | ||
| Machine size | About 6*1*1.5 m | ||
| Machine weight | About 3.5 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 8-20 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 5 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

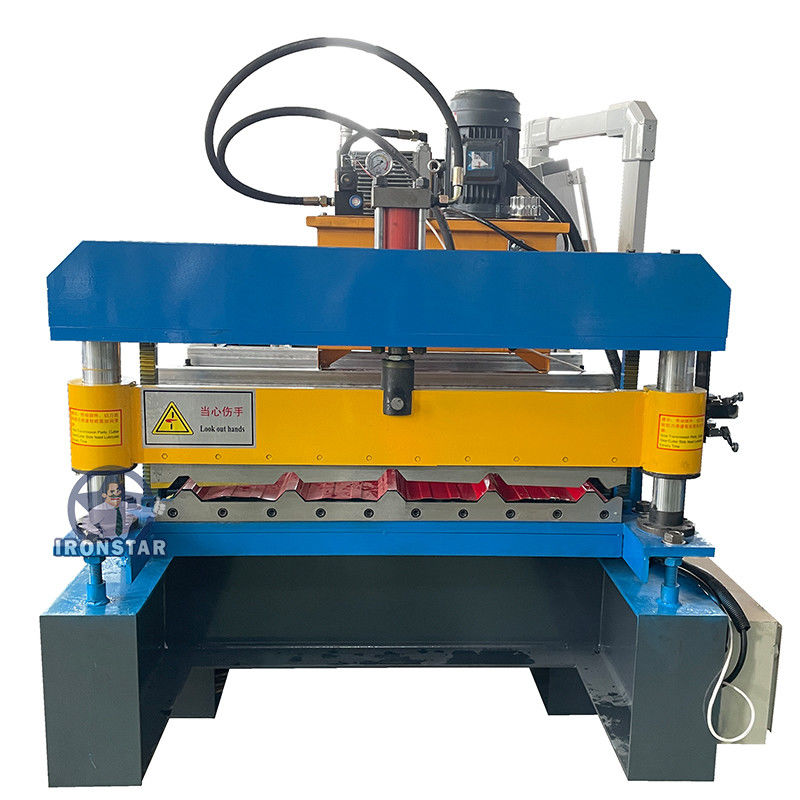

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
