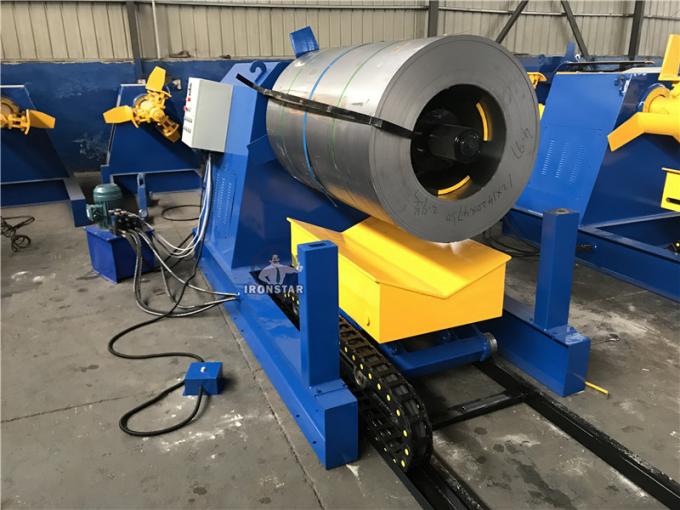

5 ton hydraulic decoiler popular sell in many countries, common coil stand capacity include 3 ton, 5 ton, 7 ton, 10 ton and 15 ton.
We sell lots of such 5 ton hydraulic decoiler to Indonesia, Philippines, India, Thailand, Russia etc, Size can customize can your need size
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel or PPGI |
| Feeding width | 1250 mm | ||
| Thickness | 0.3-3 mm | ||
|
2 |
Main body | Weight capacity | 5 Tons |
| Machine size | About 3*1.6*1.2 m | ||
| Machine weight | About 2.2 tons | ||
| Machine color | As customer need | ||
| Operation | Automatic work | ||
| Working speed | 8-20 m/min hydraulic motor | ||
| 3 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
4 |
Control box | Inverter brand | Delta made in Taiwan or SAJ |
| Language | Chinese and English or as customer' request | ||
Speed control by inverter, work with roll forming machine speed
Two modes operate: automatic and manual type
Button press operate, work easy
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the axis relax or tension, small car move forward or backward, move up or move down
Motor Power: 4 KW Oil pressure: 8-10 MPa
Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 15 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.

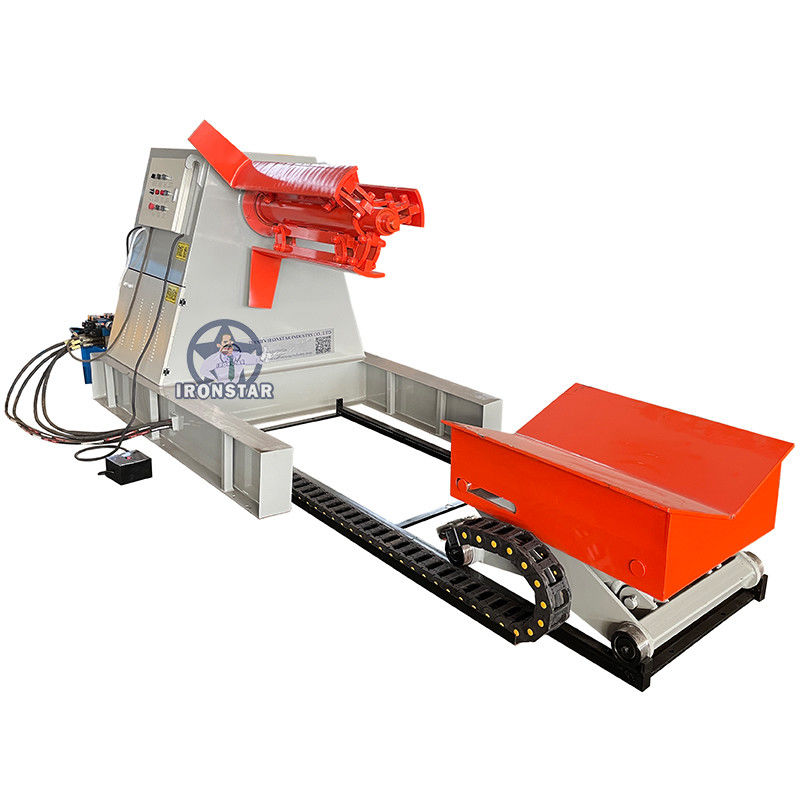

5-ton automatic uncoiler with a car, also known as an automatic coil unwinder with a coil car, has specific applications in metal fabrication processes that involve handling larger and heavier coils. Here are some common applications of a 5-ton automatic uncoiler with a car:
Heavy-Duty Coil Unwinding: The 5-ton capacity of the uncoiler allows it to handle larger and heavier coils, making it suitable for applications that involve unwinding thick and wide metal coils. Industries such as heavy machinery manufacturing, shipbuilding, and structural steel fabrication often require the use of such uncoilers to handle their large-scale coil processing needs.
High-Volume Production: The automatic function of the uncoiler, combined with the coil car, enables efficient and high-volume coil unwinding. It minimizes manual handling and reduces downtime between coil changes, allowing for continuous production and improved productivity in industries that require a significant output of finished products.
Roll Forming and Roofing Industry: Roll forming lines used in the production of roofing panels, metal profiles, and other construction components can benefit from a 5-ton automatic uncoiler with a car. It ensures a smooth and streamlined coil handling process, reducing material waste and increasing overall production efficiency.
Steel Service Centers: Steel service centers that process and distribute metal coils to various industries can utilize a 5-ton automatic uncoiler with a car. It simplifies and speeds up the coil loading and unloading process, enabling efficient material handling and order fulfillment for their customers.
Slitting Lines: Slitting lines that cut large coils into narrower strips often require a 5-ton automatic uncoiler with a car to handle the heavy and bulky coils. The combination of the uncoiler and car facilitates the precise feeding of the coil into the slitting machine, ensuring accurate strip widths and high-speed production.
Cut-to-Length Lines: Cut-to-length lines that produce customized sheet or plate lengths can benefit from a 5-ton automatic uncoiler with a car. It enables the swift loading and unloading of coils onto the mandrel, allowing for efficient and precise feeding of the coil into the shearing machine or flying shear.
The integration of a coil car with a 5-ton automatic uncoiler enhances the efficiency, safety, and handling capacity of the unwinding process. It is particularly valuable in industries that handle larger and heavier coils and require seamless coil changes and continuous production.
