0.3-0.8mm PPGI Trapezoidal & Bamboo Tile Double Layer Roll Forming Machine in China

0.3-0.8mm PPGI Trapezoidal & Bamboo Tile Double Layer Roll Forming Machine in China

  • Highlight

    Bamboo Tile Double Layer Roll Forming Machine

    ,

    0.8mm Double Layer Roll Forming Machine

  • Raw Material
    PPGI
  • Warranty
    3 Years
  • Export Port
    Tianjin Port
  • Payment Terms
    T/T, L/C, D/A, D/P
  • Container
    20 Feet Container
  • Working Days
    40 Working Days
  • Place of Origin
    China
  • Brand Name
    IRONSTAR
  • Certification
    CE
  • Model Number
    Customized
  • Minimum Order Quantity
    1 set
  • Price
    As Drawing
  • Packaging Details
    Tarpaulins and wooden cases
  • Delivery Time
    30-50 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    10 Sets/Month

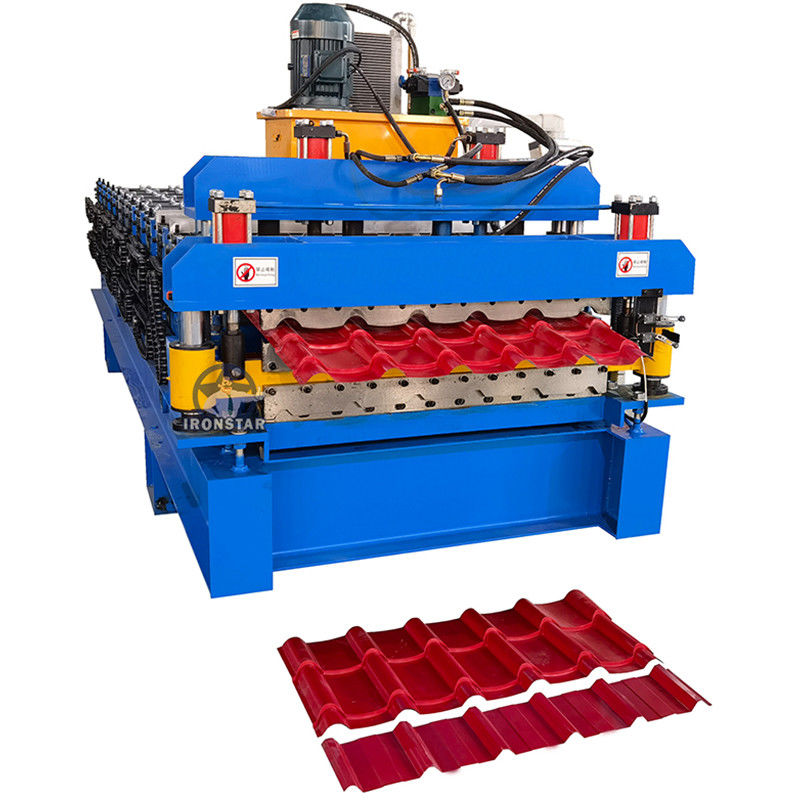

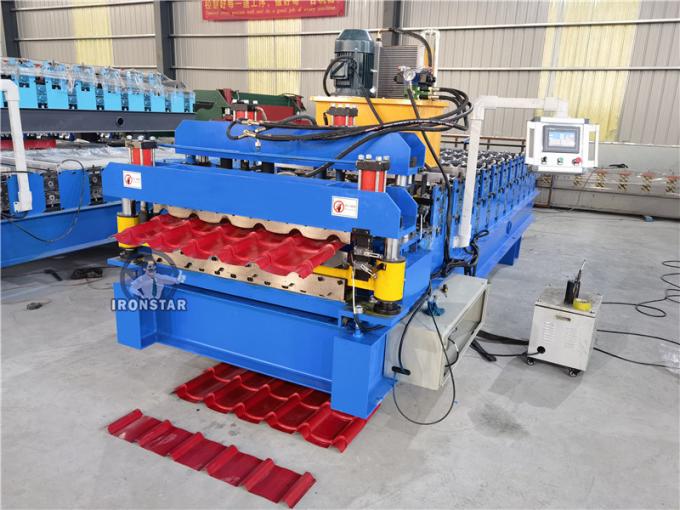

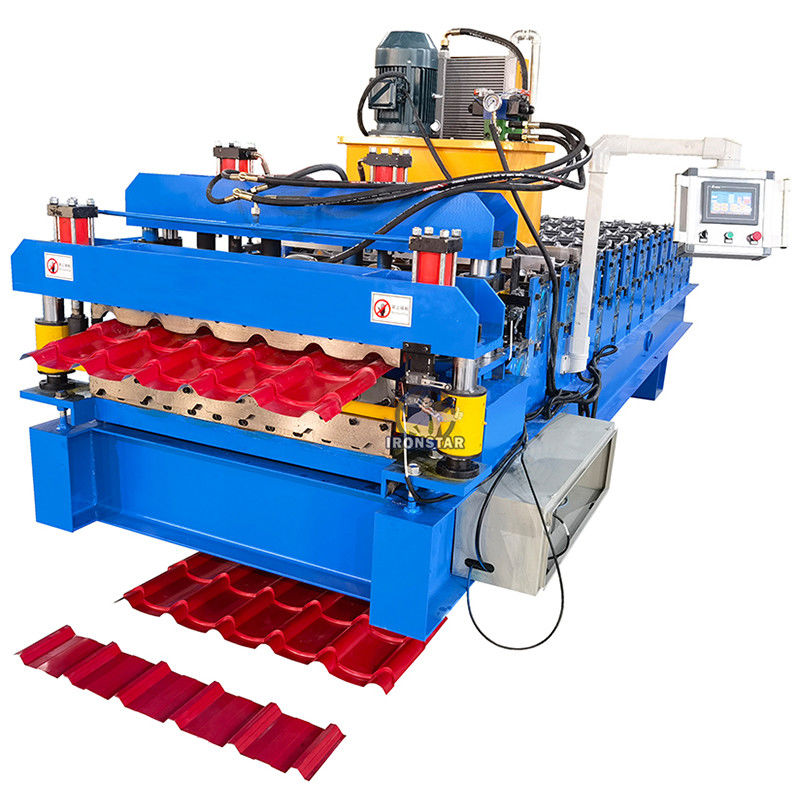

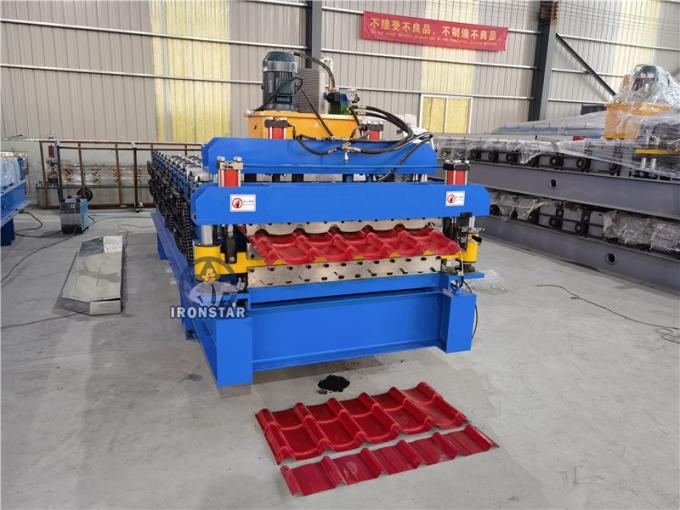

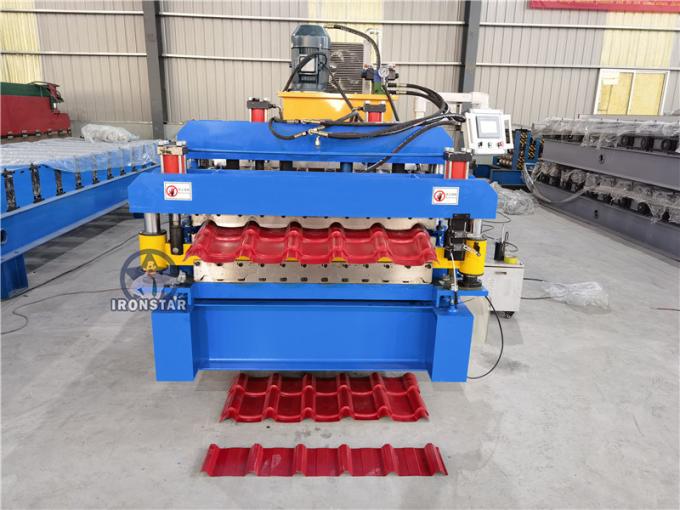

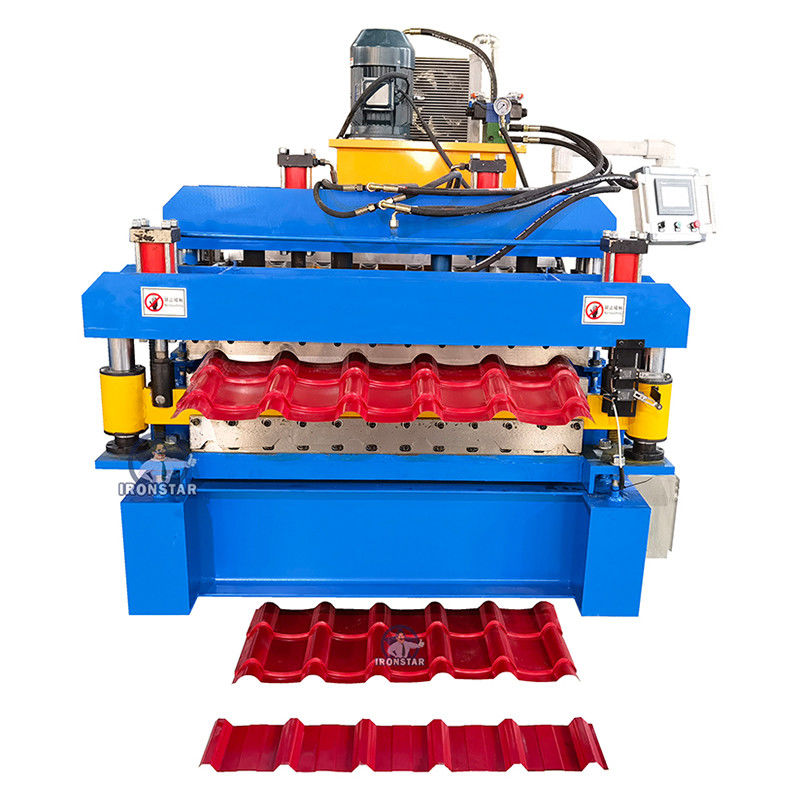

0.3-0.8mm PPGI Trapezoidal & Bamboo Tile Double Layer Roll Forming Machine in China

OEM Customized 0.3-0.8mm Metal Sheet 6 Rib Trapezoidal And 6 Rib Bamboo Tile Double Layer Roll Forming Machine



The Trapezoidal and 6 Rib Bamboo Tile Double Layer Roll Forming Machine is a specialized industrial machine designed for the efficient production of bamboo tile profiles with a trapezoidal shape and 6 ribs. This machine combines the capabilities of a double-layer roll forming machine with specific tooling to create the desired profile, common roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material



Double layer roll forming machines for bamboo tile production can be sold to various countries around the world, depending on the manufacturer's distribution network and target market. Some common countries where roll forming machines are sold include:

United States,Canada,United Kingdom,Germany,France,Italy,Australia,China,India,Brazill,Mexico,South Africa


These are just a few examples, and the market for roll forming machines extends globally. The specific countries where double layer roll forming machines for bamboo tile are sold may vary based on factors such as demand, market conditions, infrastructure development, and local manufacturing capabilities. It's advisable to consult with roll forming machine manufacturers or suppliers to determine the availability and distribution channels for specific countries of interest.We can assure finished products overlap accuracy control in ±1 mm.  Size can customize can your need size



Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

roll forming machine work flow



Diameter of double layer roll forming machine

NO

            Type

Specification

1

Raw material Type PPGI
Feeding width As customer' drawing
Thickness 0.3-0.6 mm

2

Decoiler Operation Manual
Weight apacity 5 Tons

3

Main body Roller station 14-18 rows
Diameter of shaft 70 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame 360mm C-beam
Frame thickness 16 mm
Machine size About 6.8*1*1.5 m
Machine weight About 5.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 8-20 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 5.5 KW
Pump motor for cutter 4 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

6

Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

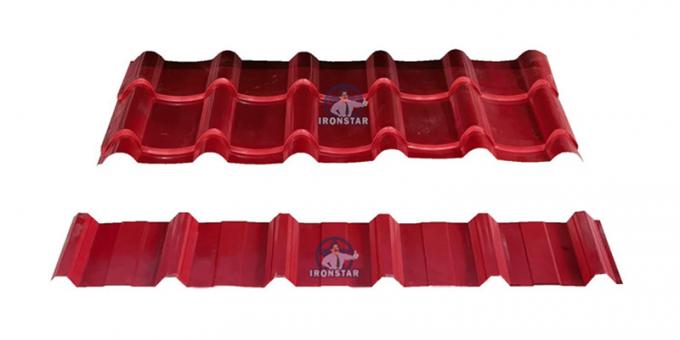

Product drawing

微信图片_202201061542128-- (2)_副本

Feeder decoiler

Alibaba-new

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 5 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

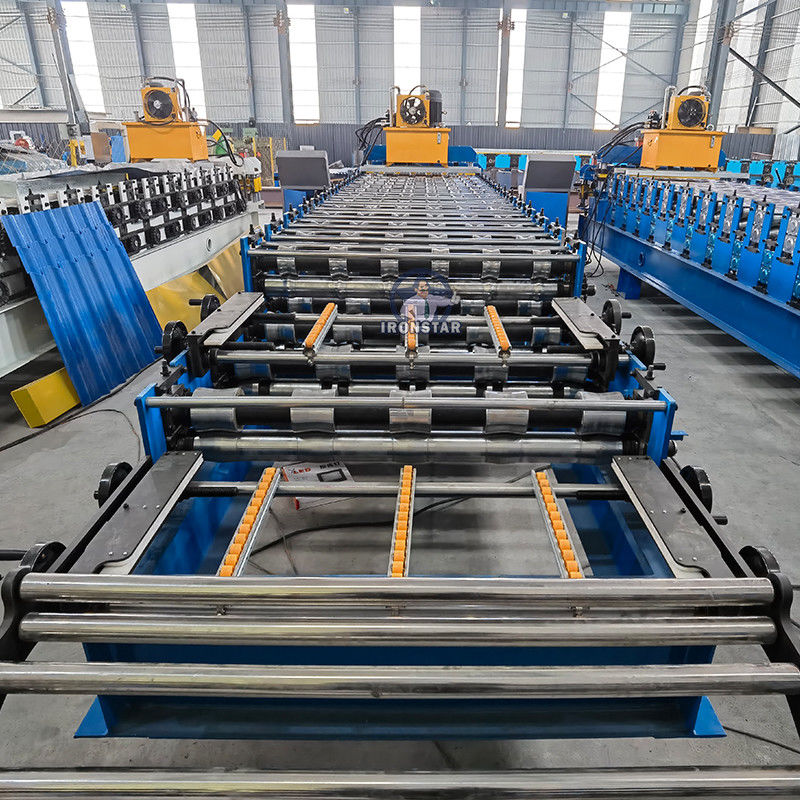

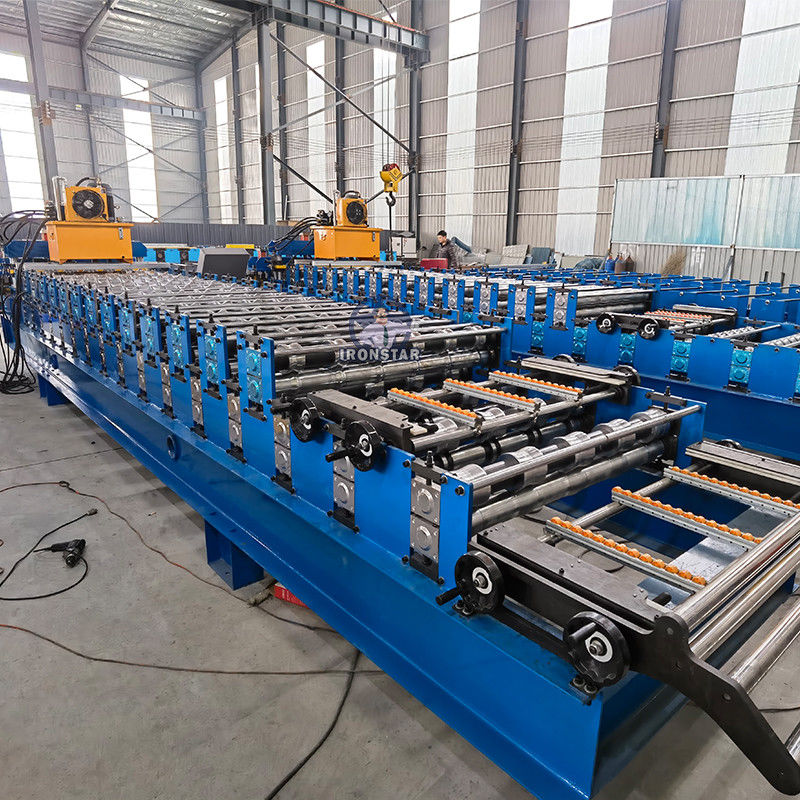

Roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped



微信图片_202201061542127-_副本

微信图片_202201061542128- (2)

微信图片_202201061542129-

IMG_3939





Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

Roll forming machine 1















Feeding table

IMG_0168


Insert  raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel





Control box

 control box

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need





Hydraulic oil pump


Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa





Receiving table

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

IMG_0198-2






Spare parts free for customer

QQ截图20211229161100



Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.





Certificate CE & ISO9001
