PPGI Galvanized And Color Steel Metal Sheet Slitting And Recoil Whole Line Roll Forming Machine
Slitting and recoil whole line can slit to your want size and length automatically. Speed common 10-30 m/min. If you want to buy slitting machine, please tell me your used material, thickness and width, how many strips u want to get?
Slitting and recoil whole line | coil slitting line | coil slitting machine

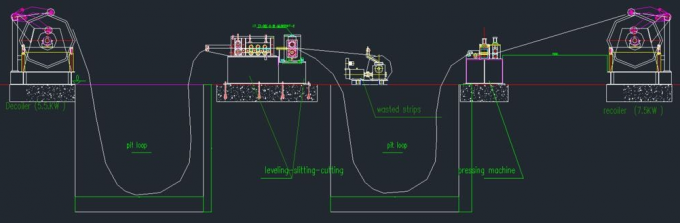

Decoiler - leveling part - slitting - hydraulic cutter - recoiler
This line is used to slit the coil sheet into narrow strips, and then recoil to small coils.
You can also cut to short panels after slitting.
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel or PPGI |
| Feeding width | 1250/1220/1200/1000mm or as customer' need | ||
| Thickness | 0.3-0.8 mm | ||
| Max strips | 11 strips | ||
|
3 |
Main body | Machine size | About 18m*6m (length*width) |
| Voltage | 380V/50HZ, 3 phase | ||
| Working speed | Common speed 0-30 m/min | ||
This line is used to slit the coil sheet into narrow strips, and then recoil to small coils.
You can also cut to short panels after slitting.
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel or PPGI |
| Feeding width | 1250/1220/1200/1000mm or as customer' need | ||
| Thickness | 0.3-0.8 mm | ||
| Coil inner diameter | 460-640 mm | ||
| Maximum coil width | 1250 mm | ||
|
2 |

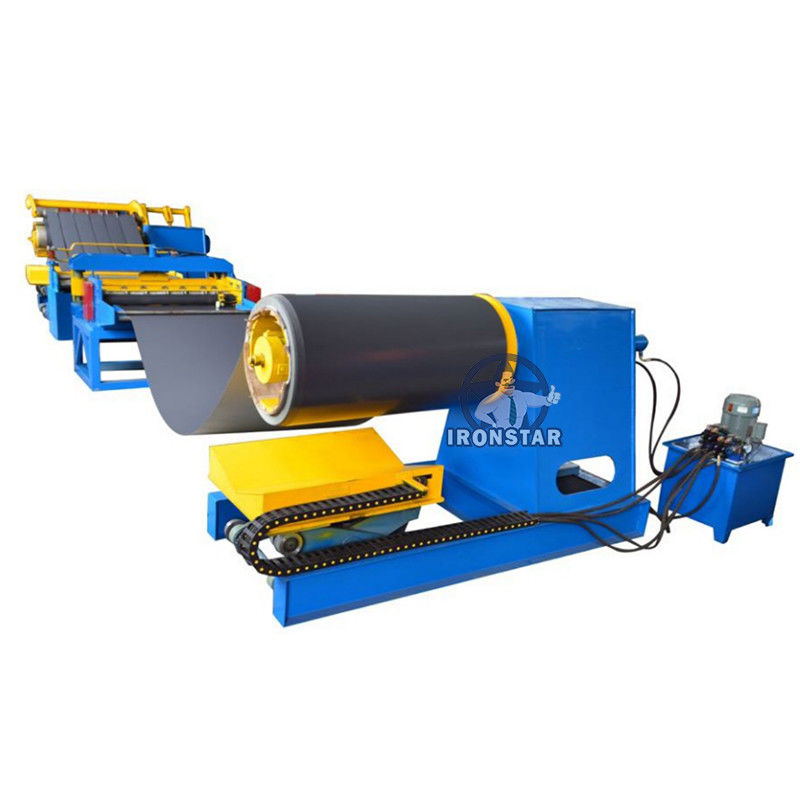

Decoiler | Operation | Hydraulic with car |
| Weight apacity | 5 Tons | ||
| 3 | Power | Working speed | Adjustable according to production speed |
| Main motor | 4 KW | ||
| Inverter | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||

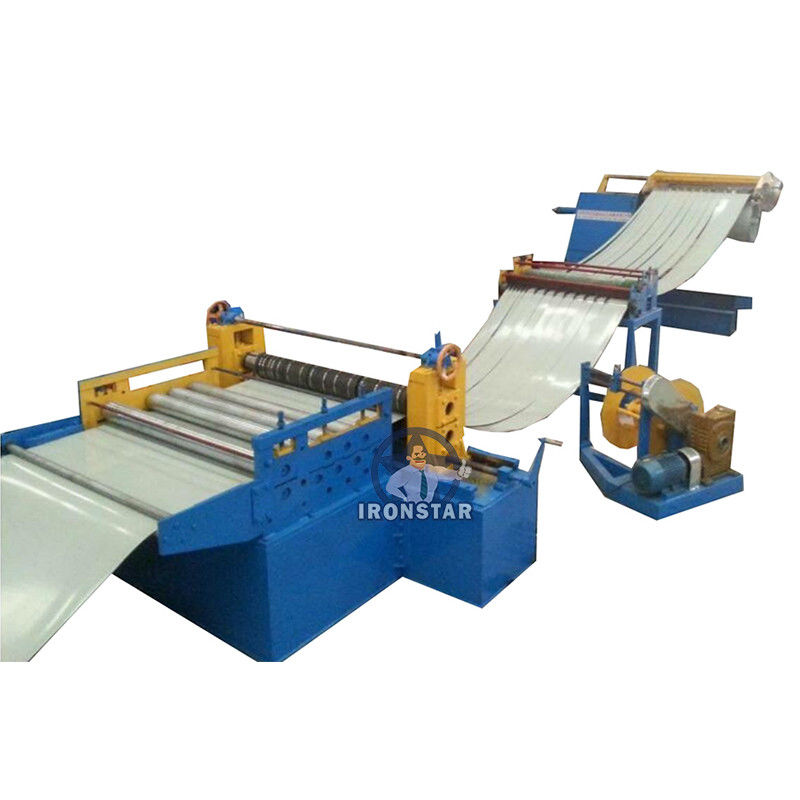

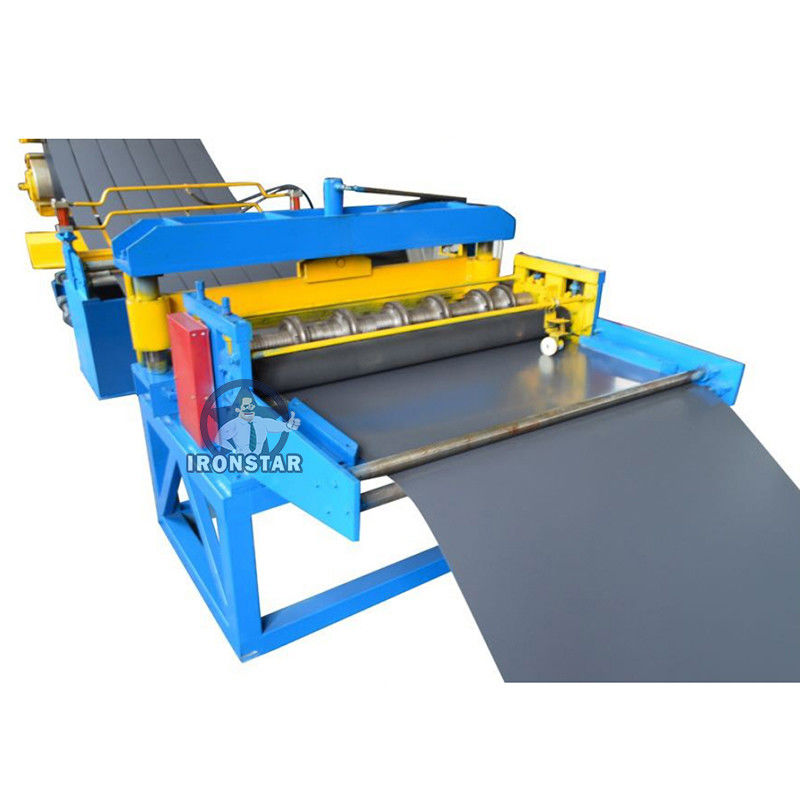

Here slitting machine used to slit the coil sheet into narrow strips and cutting off material
|
NO |
Type |
Specification | |
|
1 |
Slitting machine | Guarding bar | Adjustable, to fit for different material width |
| Feeding width | 1250/1220/1200/1000mm or as customer' need | ||
| Thickness | 0.3-0.8 mm | ||
| Slitting cutter | 10 sets cutter to slit 11 strips | ||
| 2 | Machine body | Working speed | 10-30 m/min |
| Main motor | 4 KW | ||
| Support plate | 16 mm | ||
Press machine is used to fasten the strips for the recoiler, prevent it get loose when recoil
Press machine is powered by hydraulic, tension is adjustable
Hydraulic station power: 3 kw

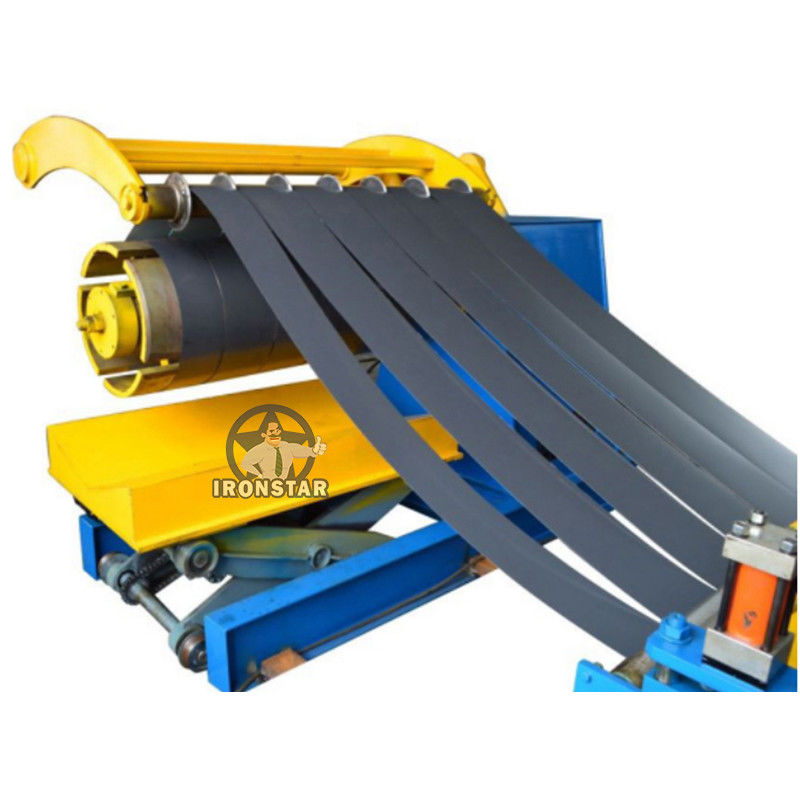

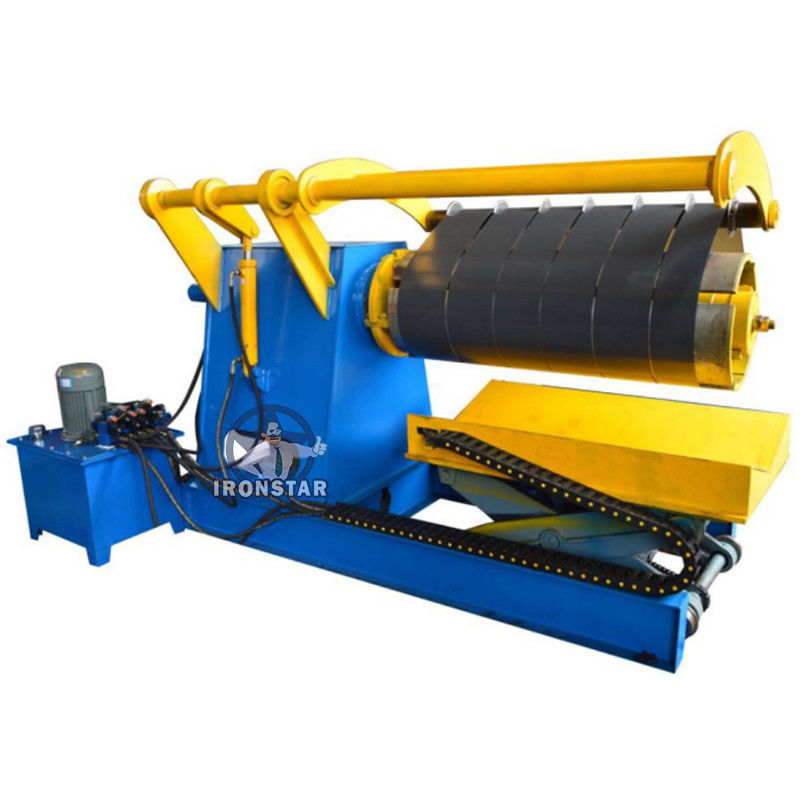

The recoiler is equipped with fast-adjustable spacers, so you can adjust for different width strips fast
Inner diameter range: 500-530 mm
Max loading weight: 5 ton
Motor power: 5.5 kw / Inverter power: 7.5 kw
Recoiling speed adjustable.
There is also pressing arm and loading car.
The pressing arm is used to make sure the coil is tight.
The loading car is used to unload the small coils after you finish
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 50 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 40 feet container to hold.
Our products are sold all over the world, you can rest assured.
