PPGI Galvanized And Color Steel Metal Sheet Roll Forming Machine 5 Ton Hydraulic Decoiler With Car With Arm
5 ton hydraulic decoiler popular sell in many countries, common coil stand capacity include 3 ton, 5 ton, 7 ton, 10 ton and 15 ton.
We sell lots of such 5 ton hydraulic decoiler to Indonesia, Philippines, India, Thailand, Russia etc, Size can customize can your need size

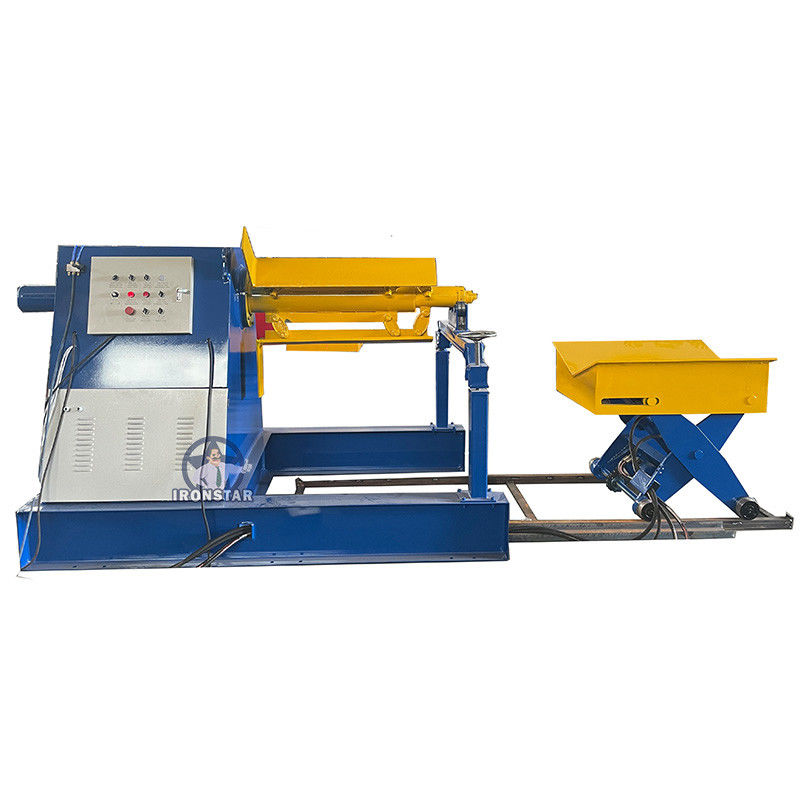

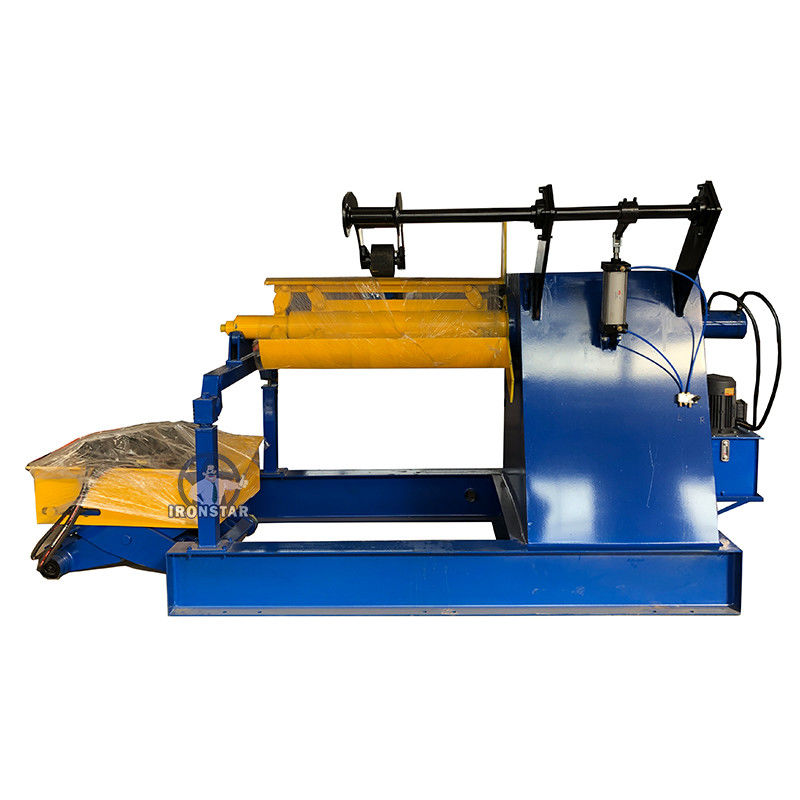

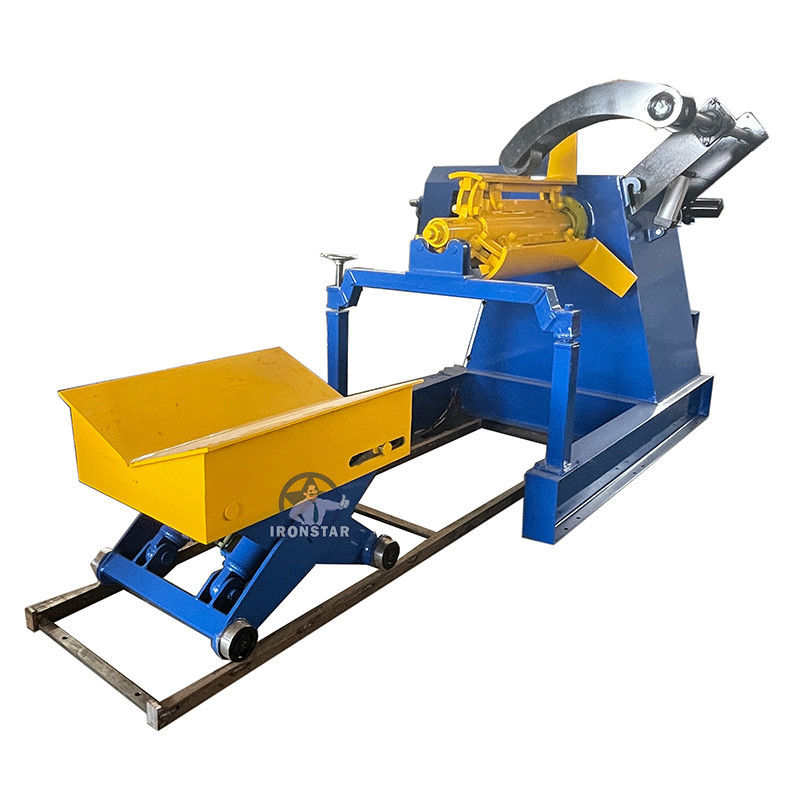

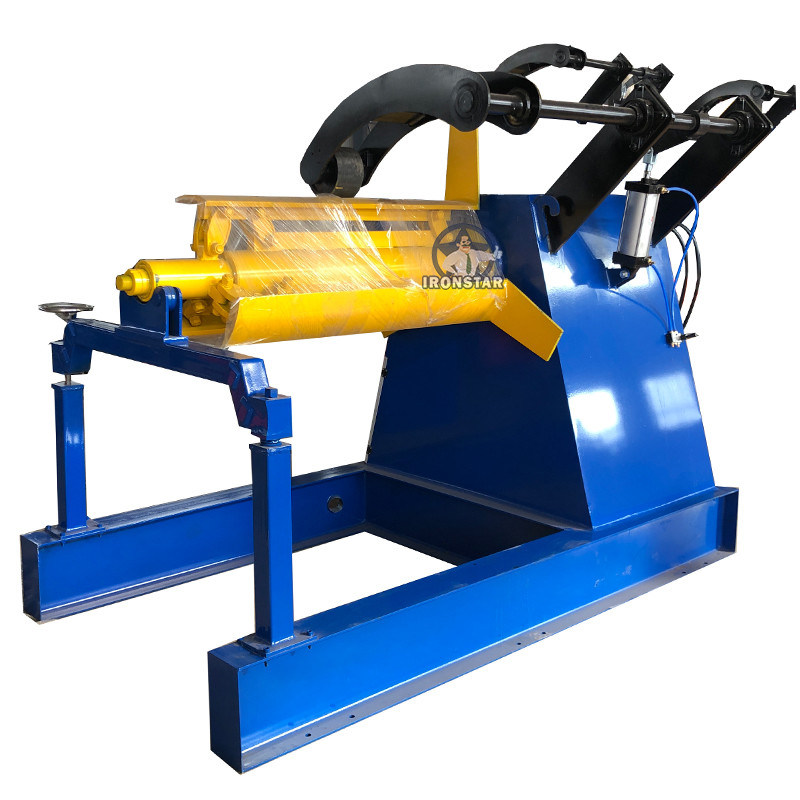

Hydraulic decoiler | 5 T automatic uncoiler with car
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel or PPGI |
| Feeding width | 1250 mm | ||
| Thickness | 0.3-3 mm | ||
|
2 |
Main body | Weight capacity | 5 Tons |
| Machine size | About 3*1.6*1.2 m | ||
| Machine weight | About 2.2 tons | ||
| Machine color | As customer need | ||
| Operation | Automatic work | ||
| Working speed | 8-20 m/min hydraulic motor | ||
| 3 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
4 |
Control box | Inverter brand | Delta made in Taiwan or SAJ |
| Language | Chinese and English or as customer' request | ||
Speed control by inverter, work with roll forming machine speed
Two modes operate: automatic and manual type
Button press operate, work easy
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the axis relax or tension, small car move forward or backward, move up or move down
Motor Power: 4 KW Oil pressure: 8-10 MPa
Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 15 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
Our products are sold all over the world, you can rest assured.
