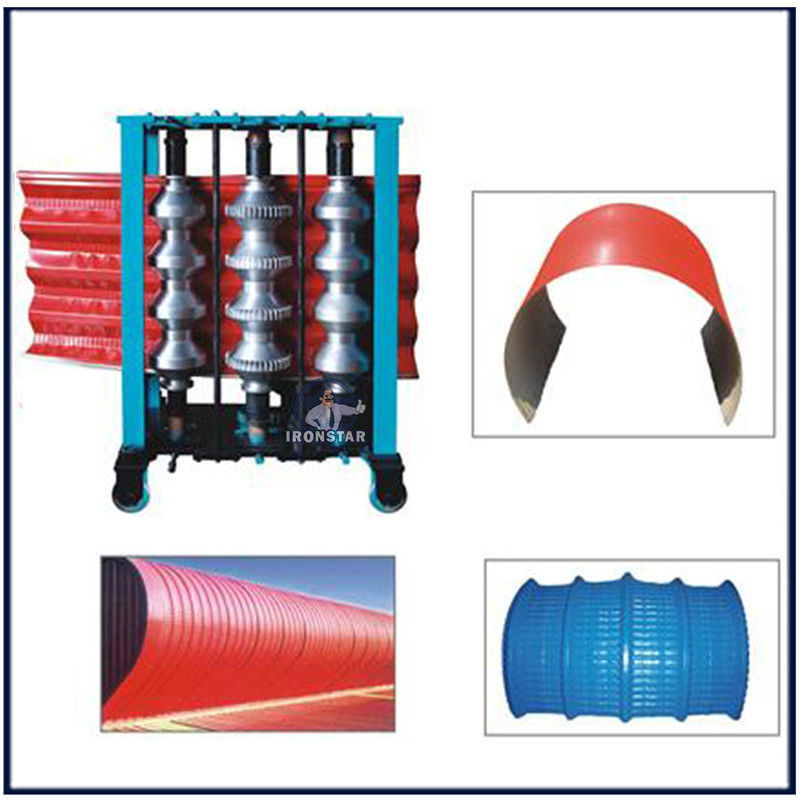

Simple Automatic Convenient And Quick Roof Sheet Vertical Curve Roll Forming Machine
Description
Curve Roll Forming Machine

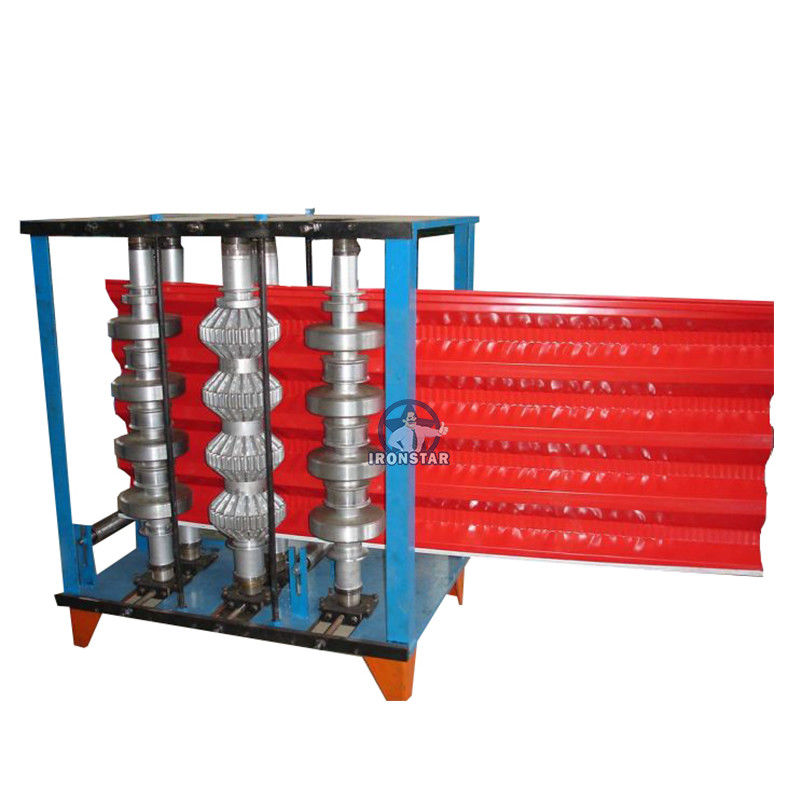

The Simple Crimp Roofing Machine is not an automatic curving roofing machine. It needs to use a metal forming machine to produce the Roofing panel, then manually get it into the Simple Crimp Roofing Machine and start working. Its advantages are that it occupies less land and is easy to operate. There is only one step forward and a back function.

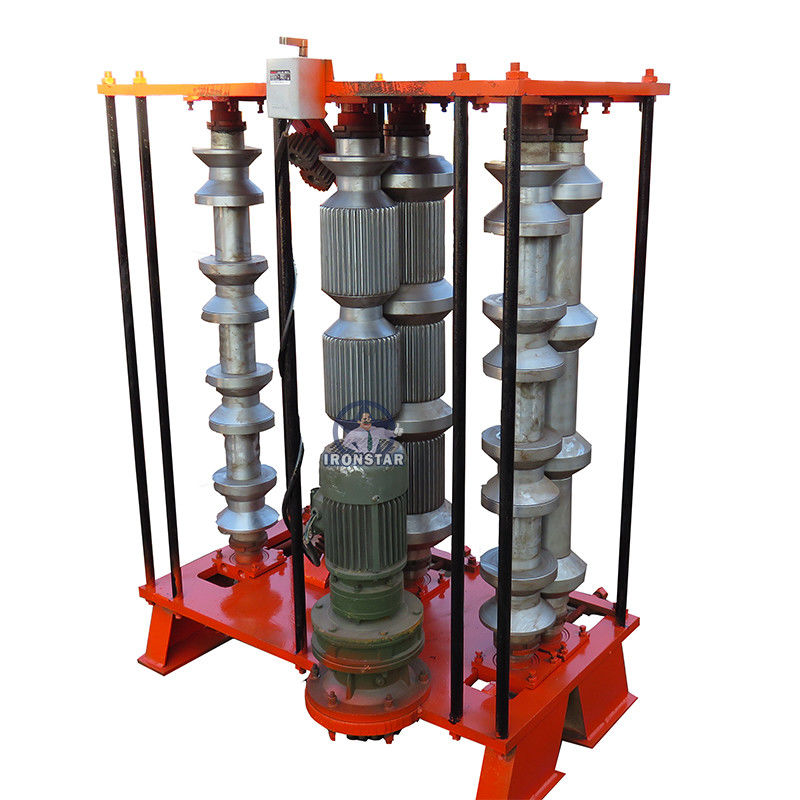

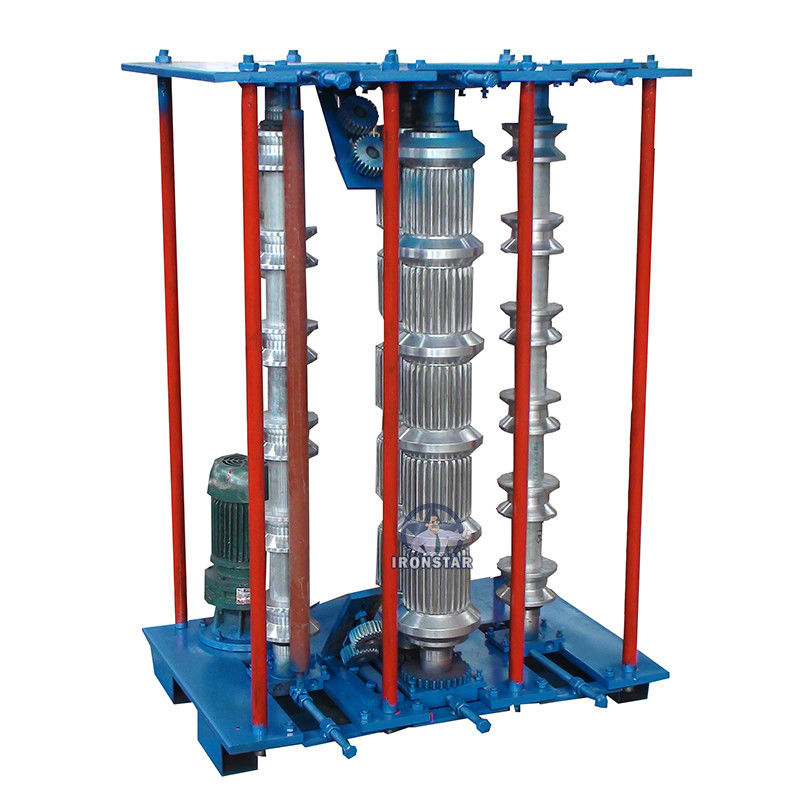

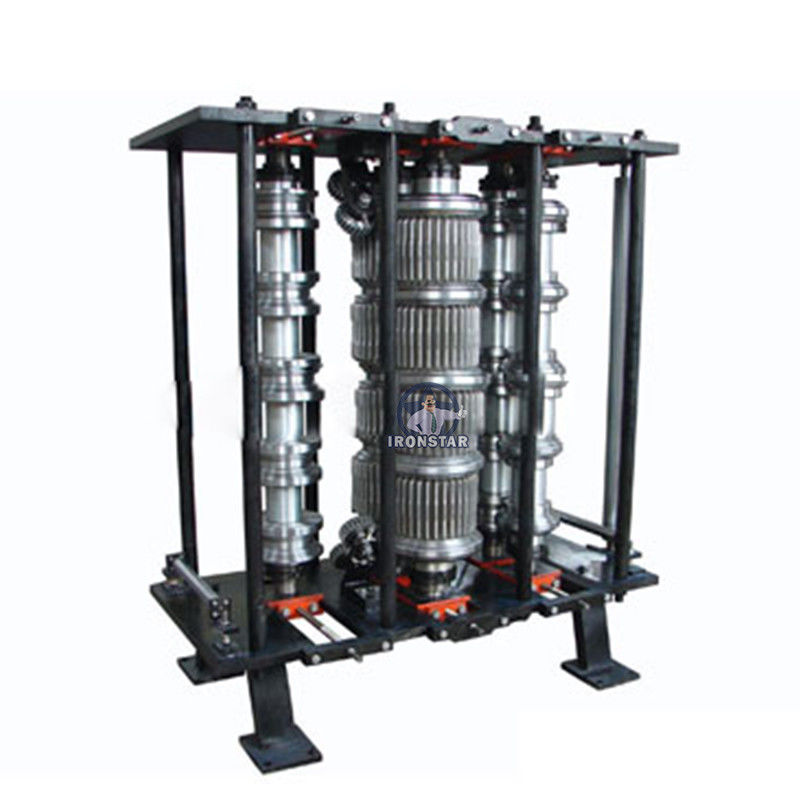

The machine consists of a frame and three to four shafts. The motor is its power, powered by a 3kw engine. Because the energy is relatively small, it is suitable for producing relatively thin metal roofs.
Advantage
Vertical automatic crimp machine can curve to your want shape and length automatically. Speed common 3-6 m/min, if you want to more higher speed, can design to servo motor type. We sell lots of such machine to India, Thailand, Russia, Saudi Arabic, Oman etc, Size can customize can your need size
Crimping machine | curving machine | automatic vertical crimp machine
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Feeding width | 1250/1220/1200/1000mm or as customer' need | ||
| Thickness | 0.3-0.8 mm | ||
|
2 |
Main body | Roller station | 2 rollers |
| Diameter of shaft | 75 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | Steel plate welding | ||
| Machine size | About 1.8*1.8*1.5 m | ||
| Machine weight | About 1 ton | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 3-8m/min | ||
| 3 | Power | Driving way | Chain 1 inch |
| Main motor | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
4 |
Control box | Electric box | PLC control system, inventer |
| Language | Chinese and English or as customer' request | ||
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 20 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
Our products are sold all over the world, you can rest assured.
