Curving Roof Sheet Roll Forming Machine
Description

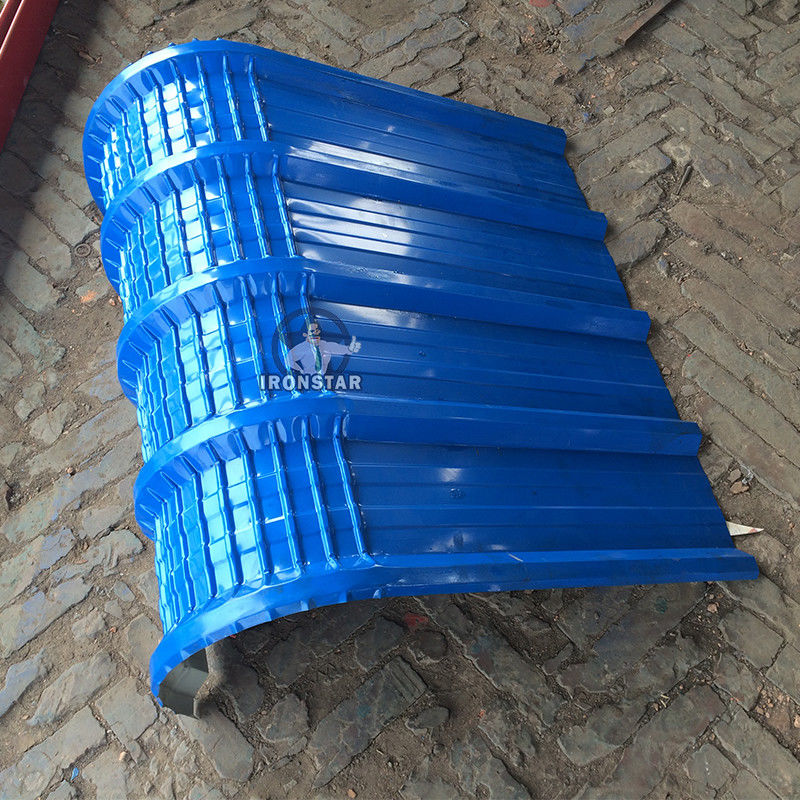

Crimp roofs use a series of metal sheets that are attached from the eave to the ridge using an exposed fastening system. Crimp panels typically require a solid roof deck with a waterproof membrane.
If customers want to make crimp roofs, they need only buy a crimping machine but also a metal roofing machine because
We make metal roofing from the roofing machine, then feed roofing to the crimping machine to make the roofing crimped or curved.

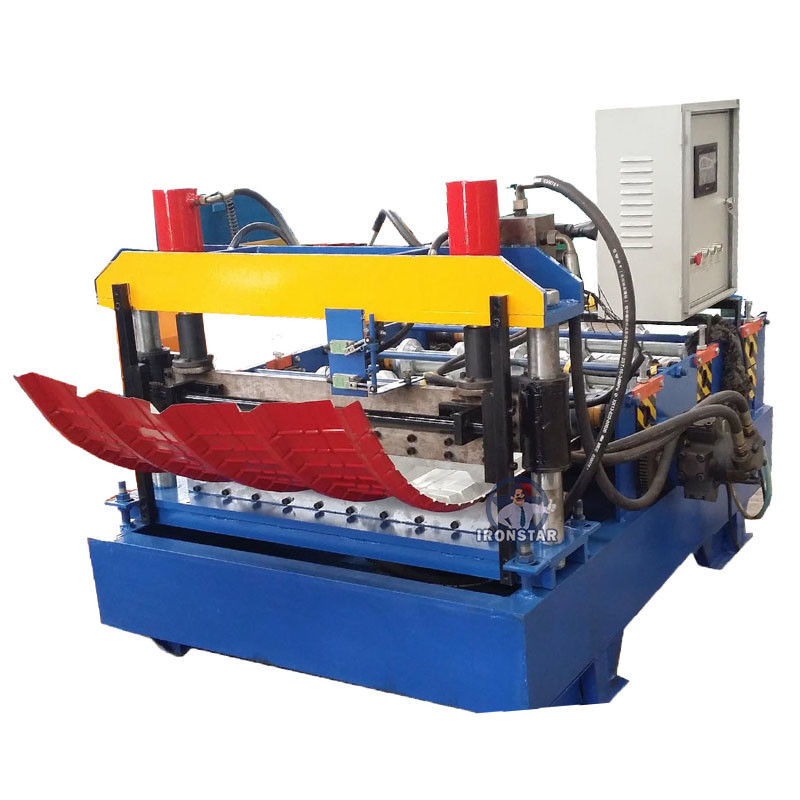

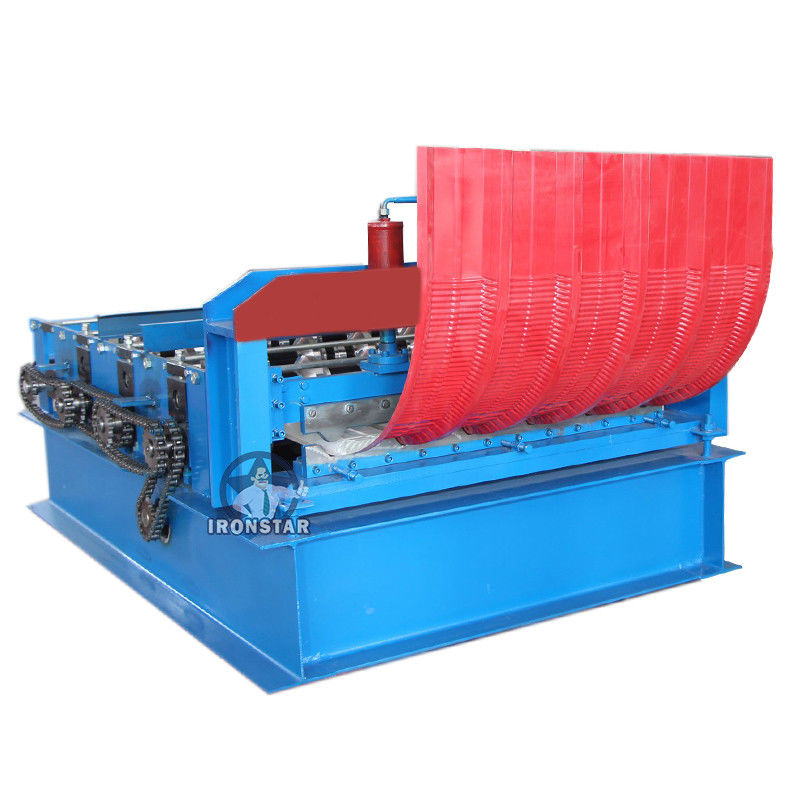

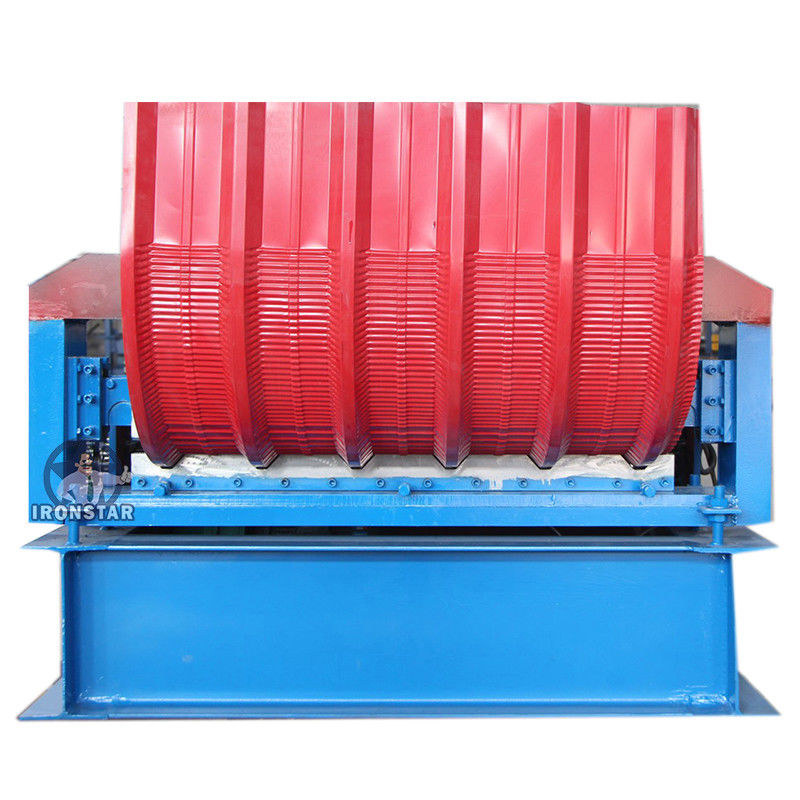

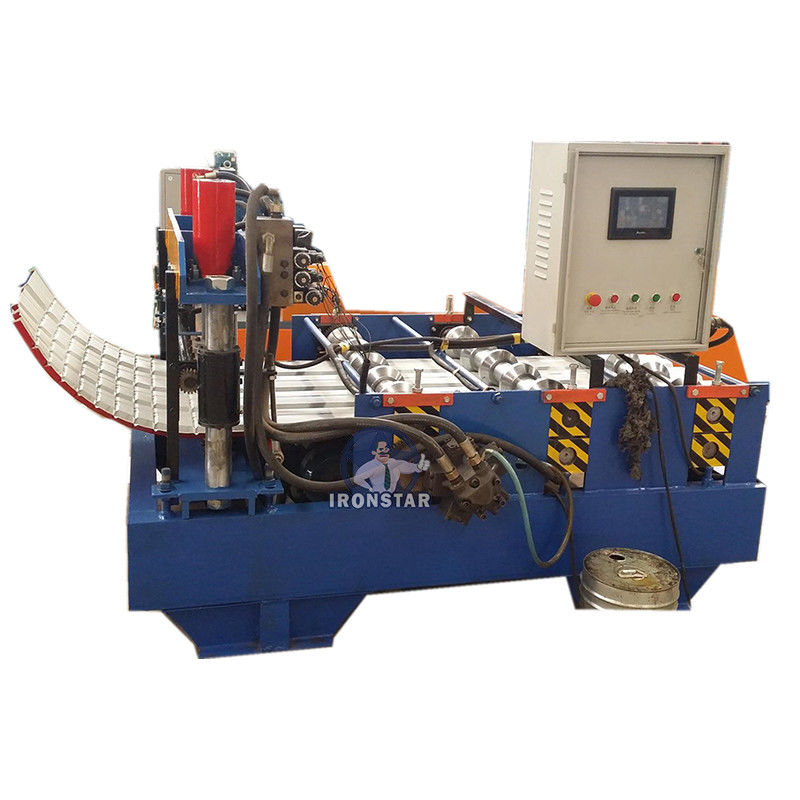

A crimping machine or curving machine consists of three feed rollers, a crimping device, the hydraulic station which gives the power to crimp, Siemens or Mitsubishi plc control system. You can choose crimping or curving shape or degree. This crimping machine is traditional, powered by the usual motor, so it curves about 12 times per minute.
If you need to curve faster, we have curve machine power by servo motor 1.5kw.
Parameter of Horizontal crimp machine
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 5 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 20 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
