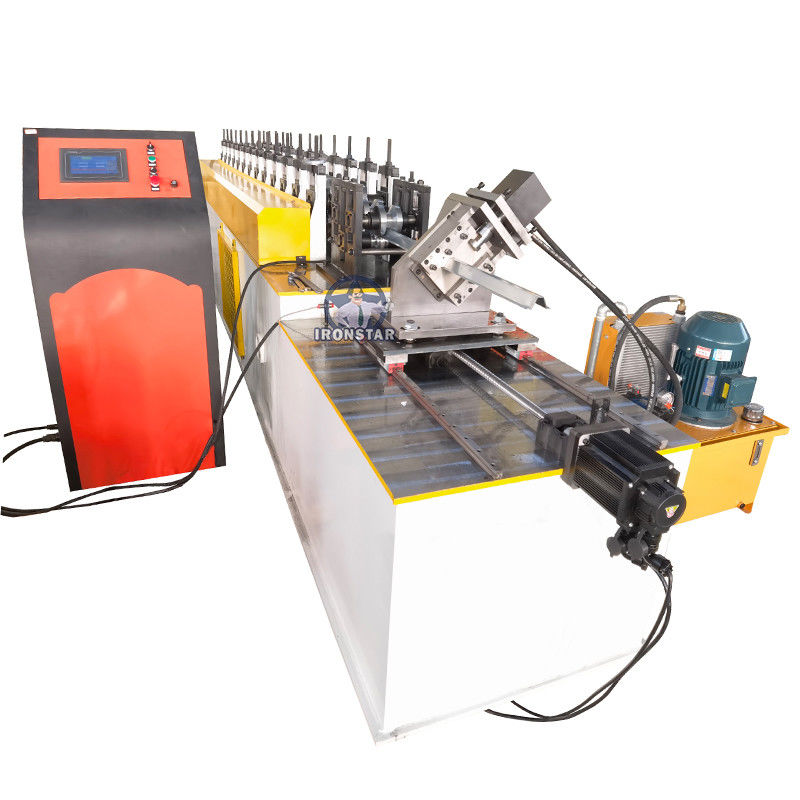

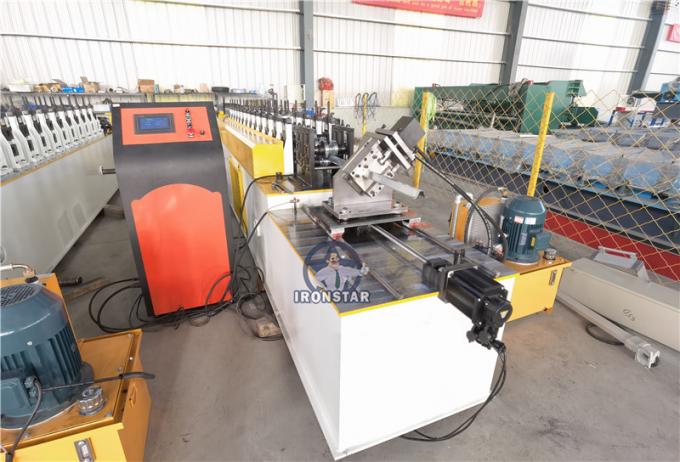

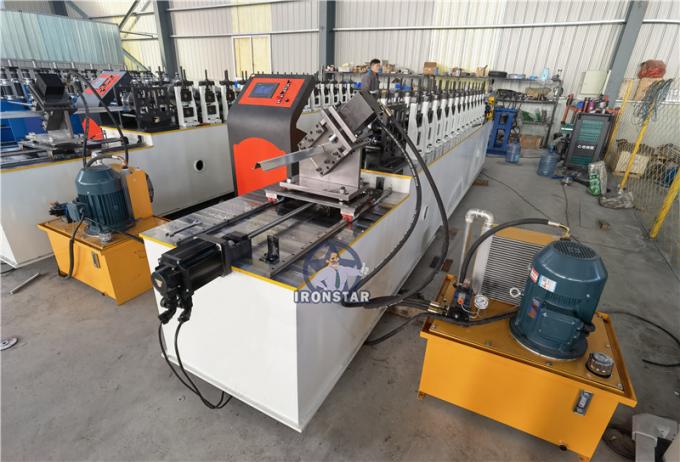

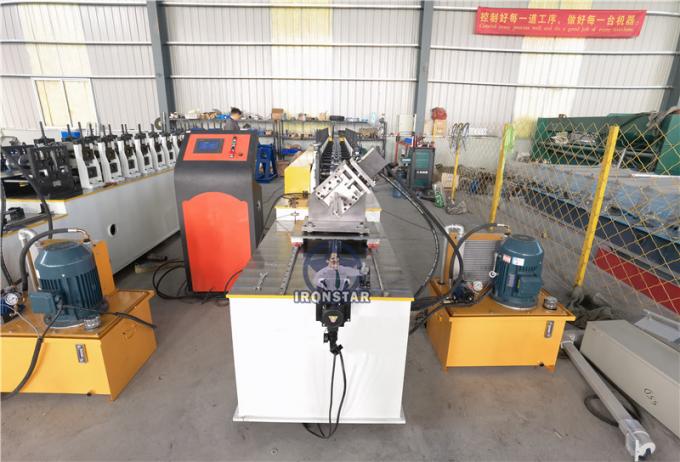

Customized High Speed Ceiling And Drywall 0.3-0.6mm Metal Sheet European Omega Furring Channel Roll Forming Machine
Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc
Work flow of Omega profile roll forming machine
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 3 Tons | ||
|
3 |
Main body | Roller station | 10 rows |
| Diameter of shaft | 55 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | Steel plate welding | ||
| Frame thickness | 16 mm | ||
| Machine size | About 4.2*0.8*1 m | ||
| Machine weight | About 1.5 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 30-50 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

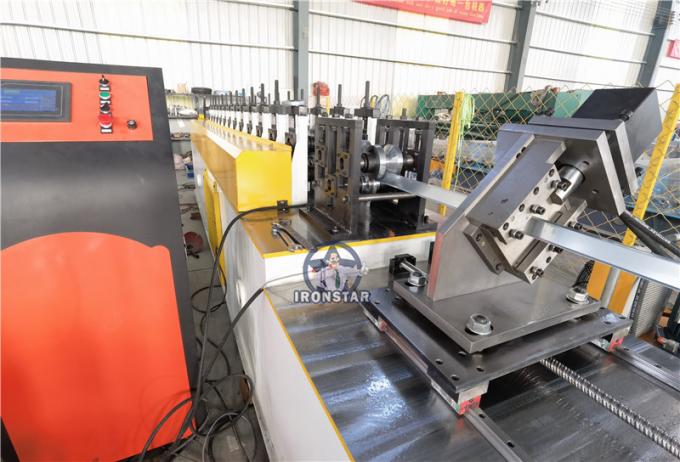

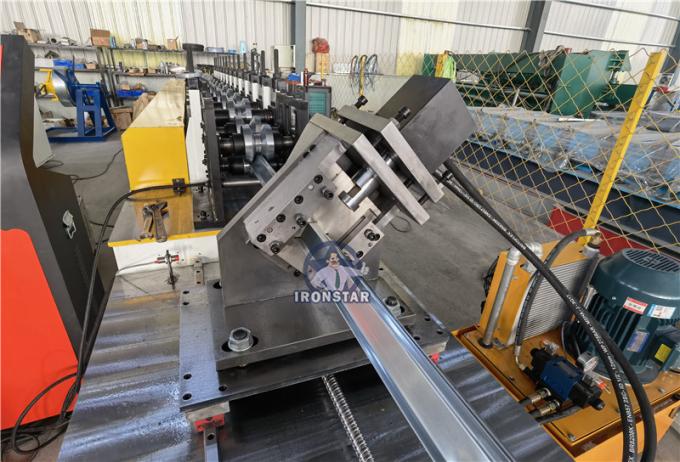

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
Puncher mould located on the machine before cutter
It can punch logo as customer' need, Logo can be digital number or photo
Logo need punch on flat surface, common in different product, it local position not same
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need

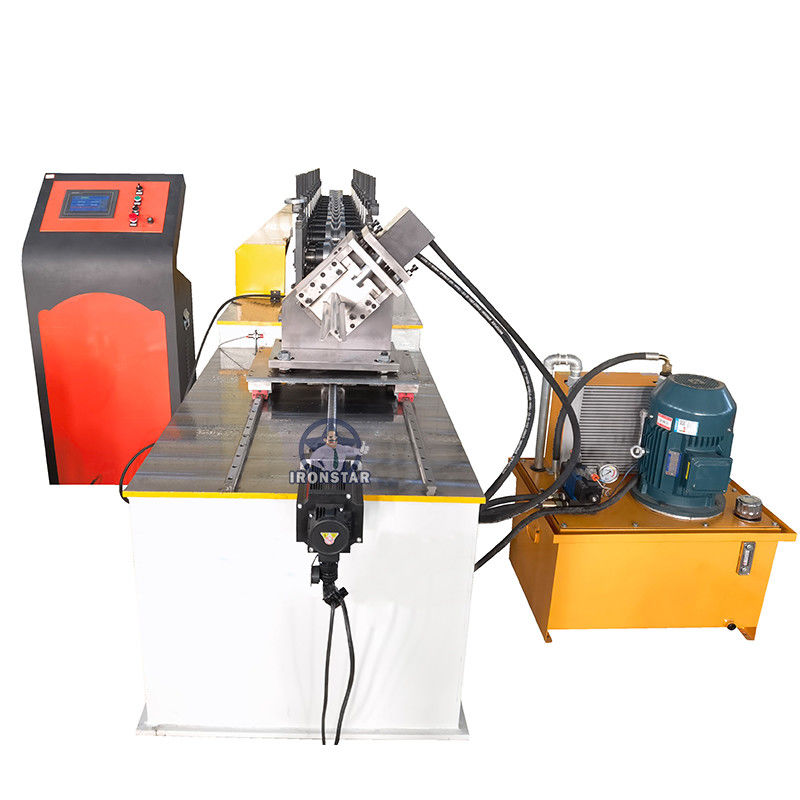

Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.

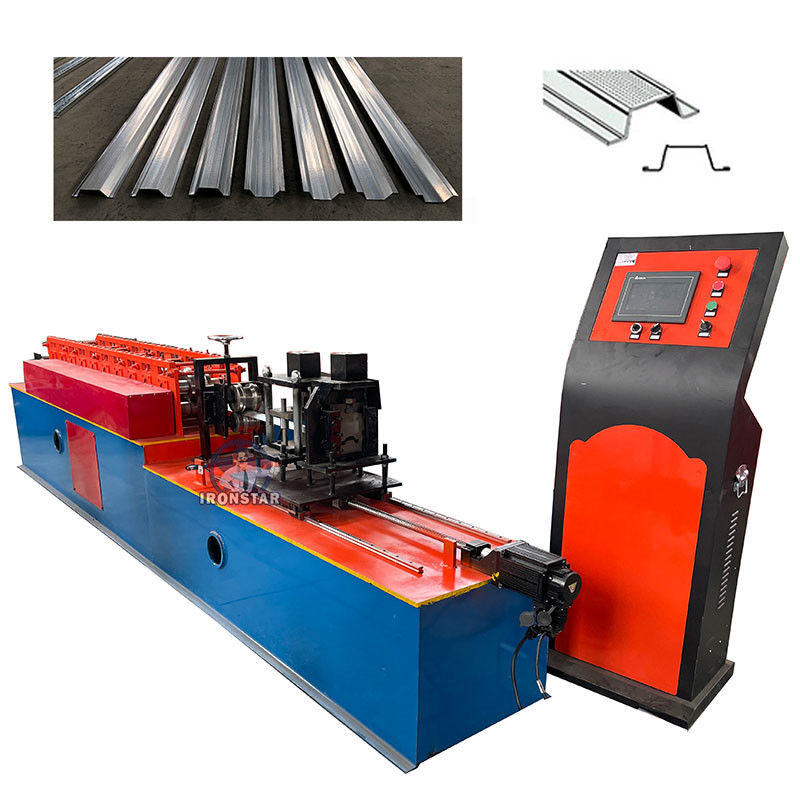

Omega profiles, also known as omega channels or omega furring channels, have various applications across different industries. Here are some common applications of omega profiles:
Drywall and Ceiling Systems: Omega profiles are widely used in drywall and ceiling systems for framing and supporting gypsum boards or plasterboards. They provide structural support and help create straight and level surfaces for the installation of wall partitions and suspended ceilings.
Cladding and Façade Systems: Omega profiles are utilized in cladding and façade systems to create a framework for attaching exterior cladding materials, such as metal panels, fiber cement boards, or insulated panels. They provide stability, support, and a secure fastening mechanism for the cladding materials.
Roofing Systems: Omega profiles are employed in roofing systems, particularly for attaching and supporting roof panels or sheets. They help create a robust framework for roof installations, offering structural strength, load-bearing capacity, and resistance against wind uplift.
Shelving and Storage Systems: Omega profiles are used in shelving and storage systems, such as warehouse racking, retail displays, and industrial storage units. They serve as horizontal supports or beams to hold shelves, racks, and other storage components.
Soundproofing and Acoustic Systems: Omega profiles are utilized in soundproofing and acoustic systems to create a framework for installing sound insulation materials, such as mineral wool or acoustic panels. They help reduce noise transmission and improve sound insulation in buildings and spaces.
Suspended Ceiling Grids: Omega profiles are an integral part of suspended ceiling grids. They form the main framework for supporting ceiling tiles, light fixtures, and other components in commercial buildings, offices, schools, and healthcare facilities.
Partition Walls: Omega profiles are used in the construction of partition walls, providing a sturdy framework for dividing interior spaces in residential, commercial, and industrial buildings. They allow for the installation of wall panels, doors, and other elements.
HVAC Ductwork: Omega profiles are employed in HVAC (Heating, Ventilation, and Air Conditioning) systems as supports for ductwork, facilitating the efficient distribution of conditioned air throughout a building.
Overall, omega profiles are versatile components used in construction, interior systems, and various architectural applications. They offer structural support, stability, and flexibility in creating frameworks for different building elements and systems.
Omega profile roll forming machines are manufactured and sold by various suppliers and manufacturers worldwide. These machines are in demand across different countries where construction and building industries are active.
China: China is a major player in the manufacturing and export of roll forming machines, including omega profile roll forming machines. Chinese manufacturers supply these machines to both domestic and international markets.
Our products are sold all over the world, you can rest assured.
