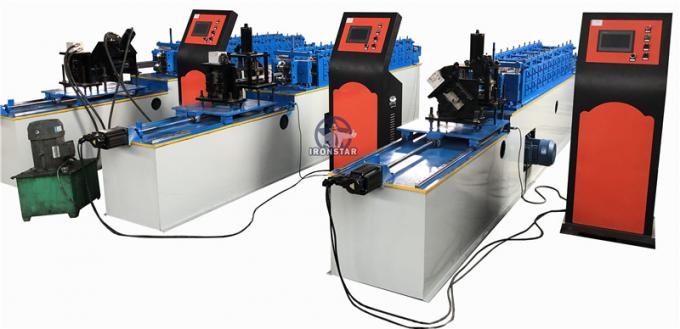

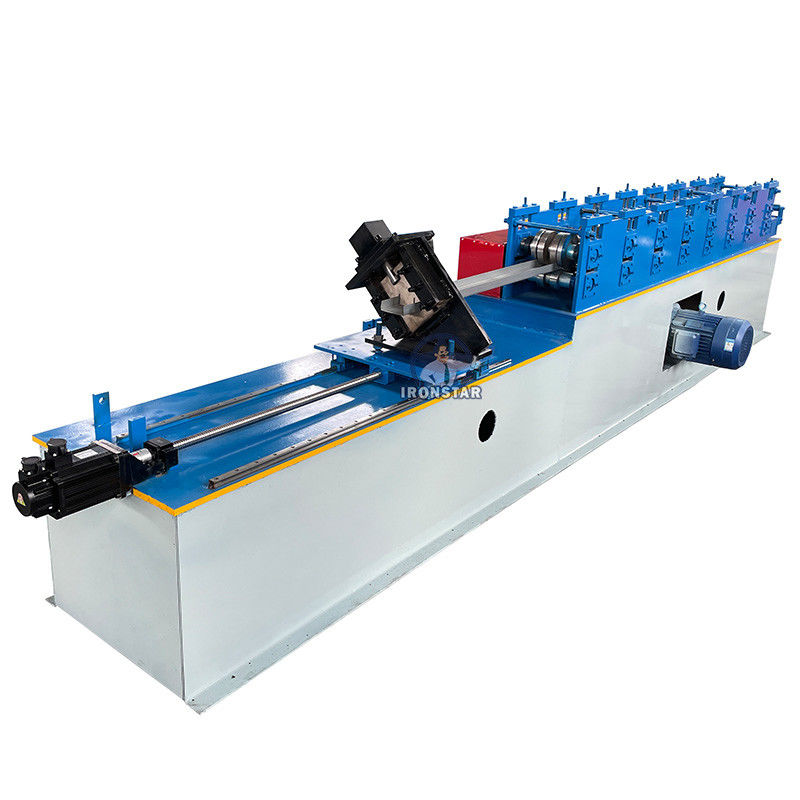

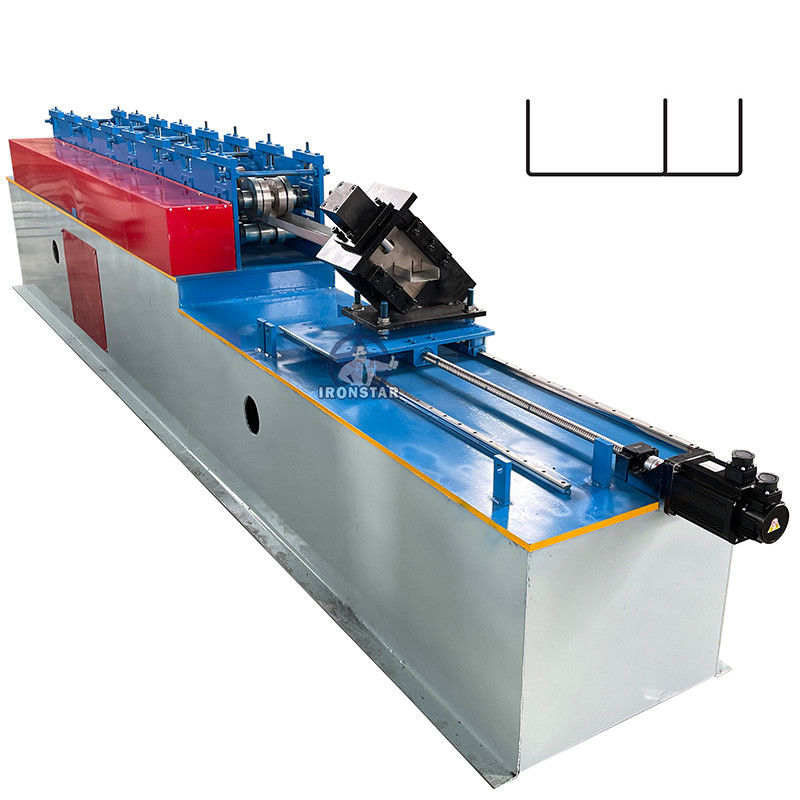

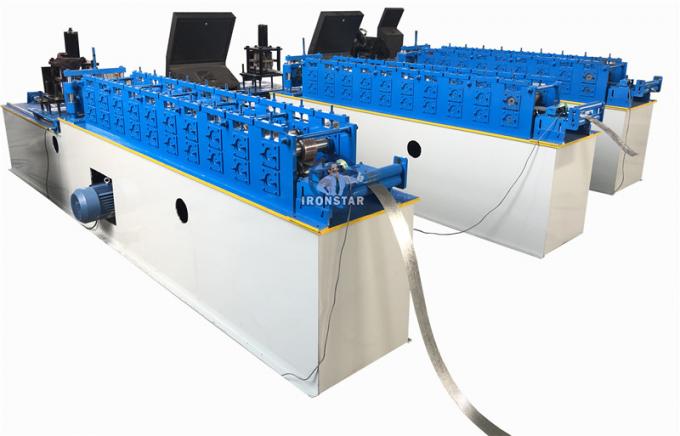

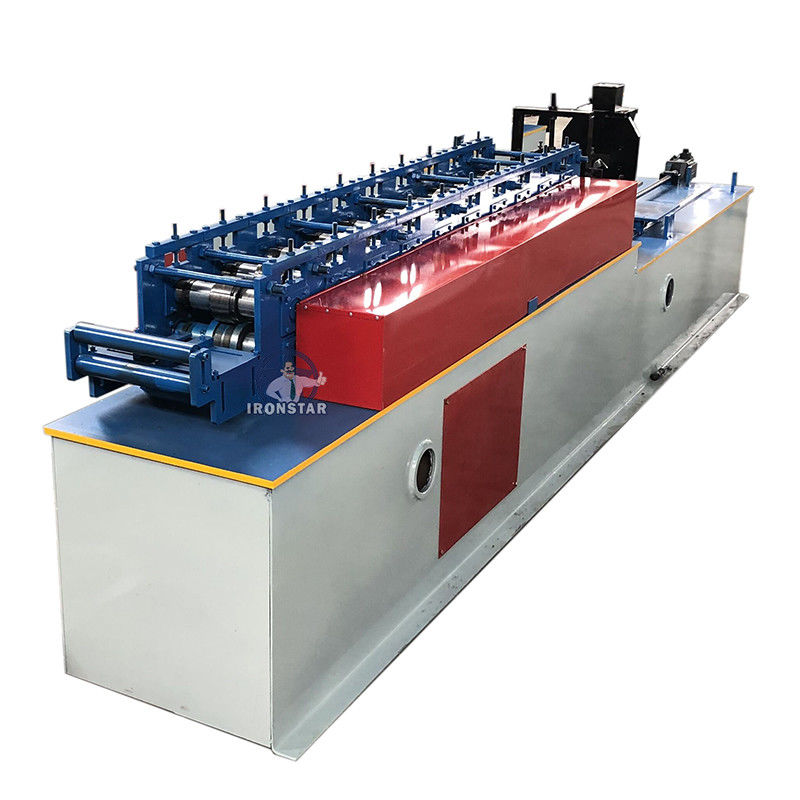

Customized Speed Ceiling And Drywall Light Steel Keel Drywall U Channel Stud And Track Roll Forming Machine For Egypt
U channel roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc
Customized is welcome, tell me your need size and thickness, we provide you satisfied machine
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 3 Tons | ||
|
3 |
Main body | Roller station | 10 rows |
| Diameter of shaft | 55 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | Steel plate welding | ||
| Frame thickness | 16 mm | ||
| Machine size | About 4.2*0.8*1 m | ||
| Machine weight | About 1.5 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 30-50 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 3 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
Emboss roller embossing spots on the product
It can custom emboss rollers as customer need' flower
Puncher mould located on the machine before cutter
It can punch logo as customer' need, Logo can be digital number or photo
Logo need punch on flat surface, common in different product, it local position not same
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil pump
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.

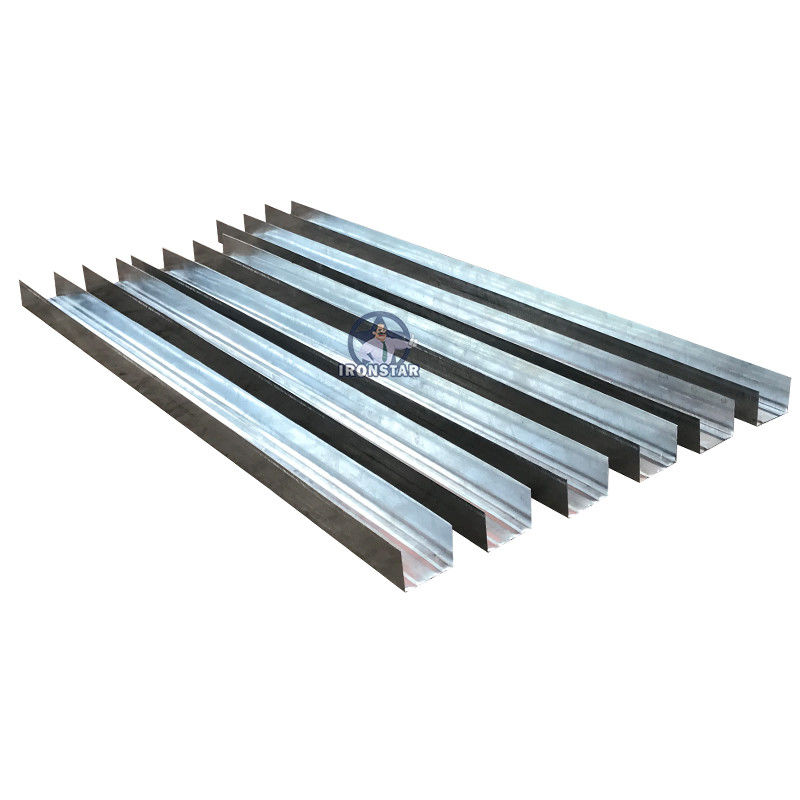

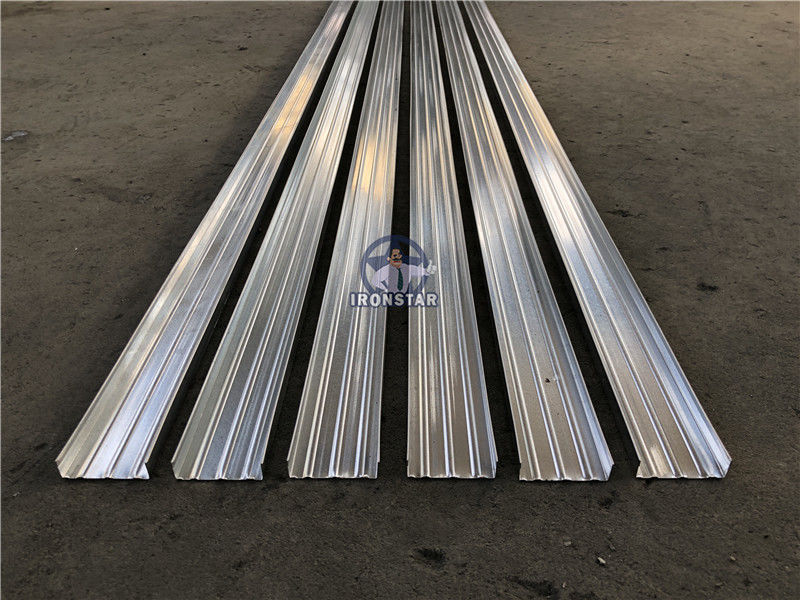

Gypsum U channels, also known as gypsum wall angle or gypsum board furring channel, are commonly used in construction and interior finishing applications. Here are some typical applications of gypsum U channels:
Drywall Installation: Gypsum U channels are widely used in drywall or gypsum board installations. They serve as support and framing components for attaching and securing gypsum boards to walls, ceilings, and partitions. The U channels are typically fastened to the structural framework, such as metal studs or wooden studs, providing a secure base for the gypsum boards.
Suspended Ceiling Systems: Gypsum U channels are an integral part of suspended ceiling systems. They are used to create a grid-like framework that supports the ceiling tiles or panels. The U channels are installed perpendicular to the main ceiling joists or structural members, providing a stable structure for suspending the ceiling system. This allows for easy access to utilities, such as electrical wires, plumbing, and HVAC components, hidden above the ceiling.
Partition Walls: Gypsum U channels are employed in partition wall construction. They are used as vertical studs or furring channels to create sturdy and stable partition walls. The U channels provide a framework for attaching gypsum boards or other wall materials, allowing for the division of interior spaces into separate rooms or areas.
Soundproofing and Acoustic Solutions: Gypsum U channels can be utilized in soundproofing and acoustic applications. By installing resilient channels or isolators onto the U channels, gypsum boards can be mounted with a decoupling effect, reducing the transmission of sound vibrations through walls or ceilings. This helps to improve sound insulation and create quieter environments in spaces such as recording studios, theaters, conference rooms, or residential units.
Fire-Rated Assemblies: Gypsum U channels are often part of fire-rated assemblies. These assemblies are designed to provide fire resistance and containment in buildings. Gypsum boards installed on U channels can contribute to the fire-rated properties of walls, ceilings, and partitions, helping to delay the spread of fire and protect occupants.
It's important to note that the specific applications and installation methods of gypsum U channels may vary depending on local building codes, project requirements, and construction practices. Consulting with professionals and following manufacturer guidelines and specifications is recommended for accurate and safe installation.
gypsum U channel making machine is a specialized equipment used for the production of gypsum U channels or gypsum wall angles. It is designed to efficiently roll form continuous strips of metal into the desired U-shaped profile used in gypsum board installations.
