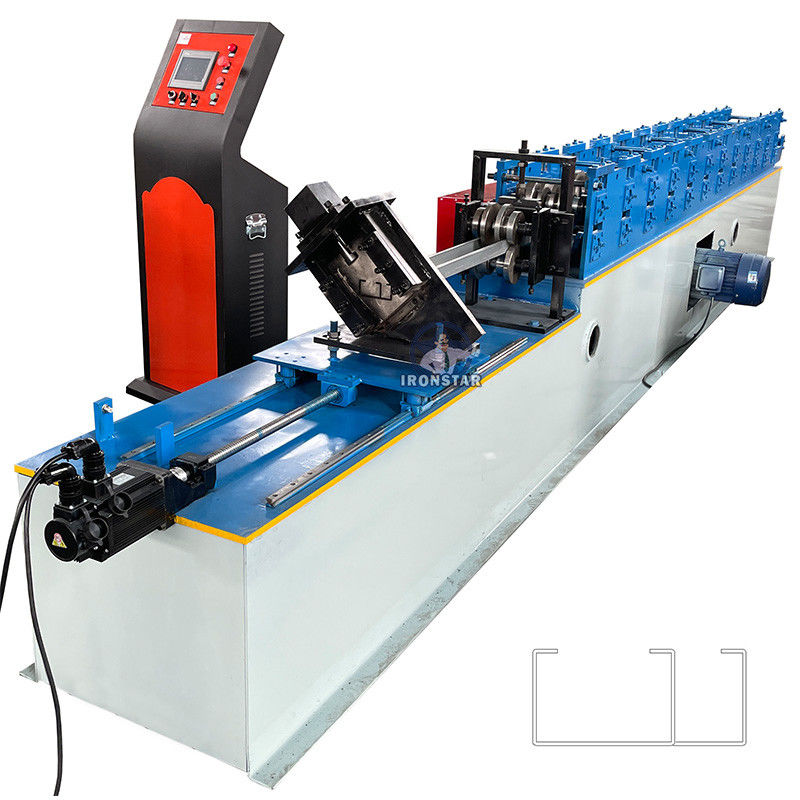

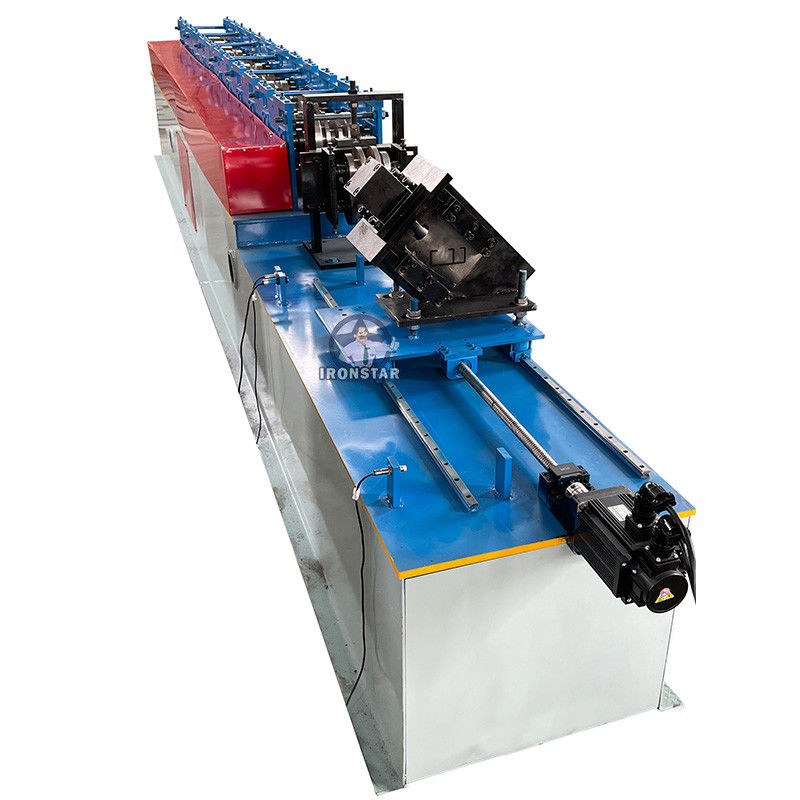

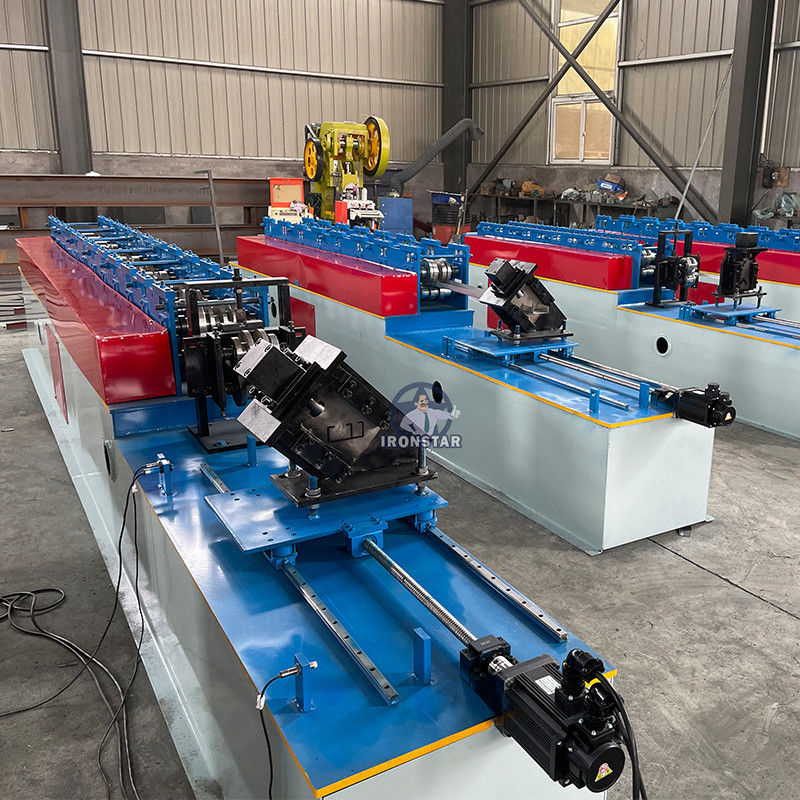

Customized High Speed Ceiling And Drywall 0.3-0.8mm Metal Sheet 60/90mm 2 In 1 C Channel Roll Forming Machine For Chile
C Channel roll forming machine is a specialized machine designed for the production of C shaped channels made from various materials, such as steel, aluminum, or other metals. C-channels, also known as C-sections or C-profiles, have a distinct shape resembling the letter "C" and are commonly used in construction, manufacturing, and other industries
C channel common thickness 0.85 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, this kind of machine mainly sell to Chile, it use for Ceiling, work with Angle bead machine, U channel machine, Omega profile machine and T grid machine
Customized is welcome, tell me your need size and thickness, we provide you satisfied machine
Work flow of C channel roll forming machine
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | Galvanized steel |
| Feeding width | As customer' drawing | ||
| Thickness | 0.85 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 3 Tons | ||
|
3 |
Main body | Roller station | 12 rows |
| Diameter of shaft | 55 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | Steel plate welding | ||
| Frame thickness | 16 mm | ||
| Machine size | About 5.5*0.8*1 m | ||
| Machine weight | About 1.8 tons | ||
| Machine color | As customer need | ||
| Operation | Hydraulic automatic | ||
| Working speed | Common speed 30-50 m/min | ||
| 4 | Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Hydraulic cutting | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Pump motor for cutter | 4 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Electric box | PLC control system, inventer |
| Screen | Touchable screen | ||
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan or SAJ | ||
| Language | Chinese and English or as customer' request | ||
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

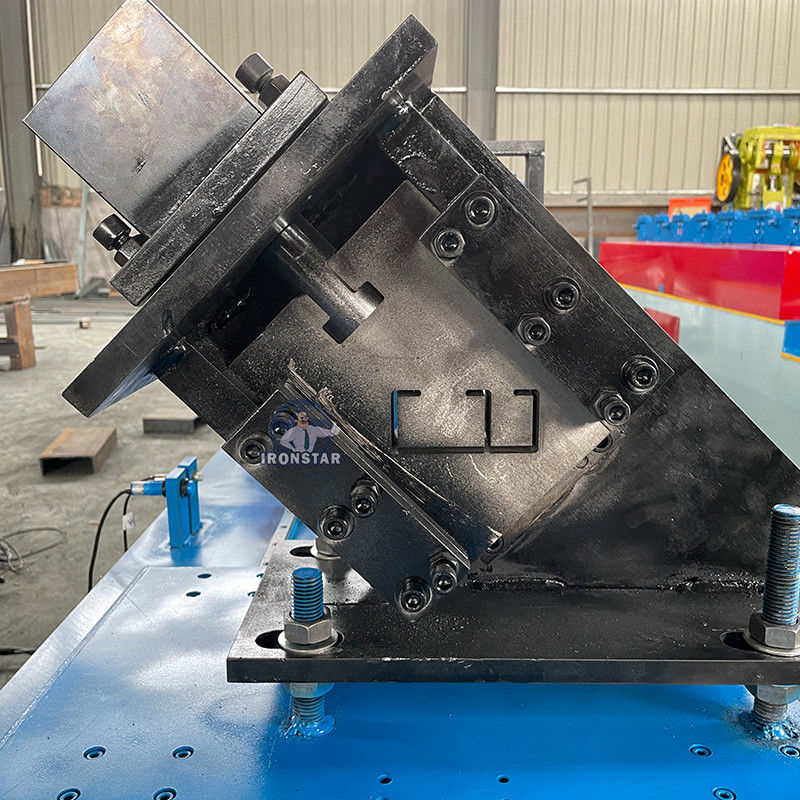

Machine cutter
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
Emboss roller embossing spots on the product
It can custom emboss rollers as customer need' flower
Puncher mould located on the machine before cutter
It can punch holes as customer' need, common customer choose H hole or Round hole
Hole need punch on flat surface, common in different product, it local position not same
Puncher mould located on the machine before cutter
It can punch logo as customer' need, Logo can be digital number or photo
Logo need punch on flat surface, common in different product, it local position not same
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty:
C stud roll forming machine is specifically designed for manufacturing C-shaped studs, also known as C-section studs or C-profile studs. These studs are commonly used in construction and building systems for framing applications, such as wall partitions, ceiling structures, and floor joists. The C stud roll forming machine plays a crucial role in efficiently producing high-quality C studs with consistent dimensions and features.
The application of C stud roll forming machines in the construction industry offers several advantages:
Framing Systems: C studs are widely used in both commercial and residential construction for framing interior walls and partitions. The roll-formed C studs provide structural support and serve as a framework for attaching various wall materials, such as drywall, cement board, or insulation.
Ceiling Assemblies: C studs are also utilized in suspended ceiling systems. They form the primary framework to which ceiling tiles or panels are attached, creating a visually appealing and functional ceiling structure.
Floor Joists: In some construction applications, C studs are used as floor joists to support subflooring materials. The roll-formed C studs provide strength and stability to the floor system, enabling the installation of various floor finishes, such as hardwood, laminate, or tile.
Utility Enclosures: C studs are employed in the construction of utility enclosures, such as electrical or plumbing chases. These enclosures house and protect utilities within walls, providing a convenient and concealed solution for routing cables, pipes, or ducts.
Commercial and Industrial Buildings: C studs are extensively used in commercial and industrial construction projects, including office buildings, warehouses, and manufacturing facilities. They offer versatility, ease of installation, and cost-effectiveness in creating interior partitions and framing systems.
The C stud roll forming machine allows for efficient and continuous production of C studs, ensuring consistent quality and precise dimensions. It enables manufacturers to meet the high demand for C studs in the construction industry and contribute to the rapid and efficient assembly of building systems.
