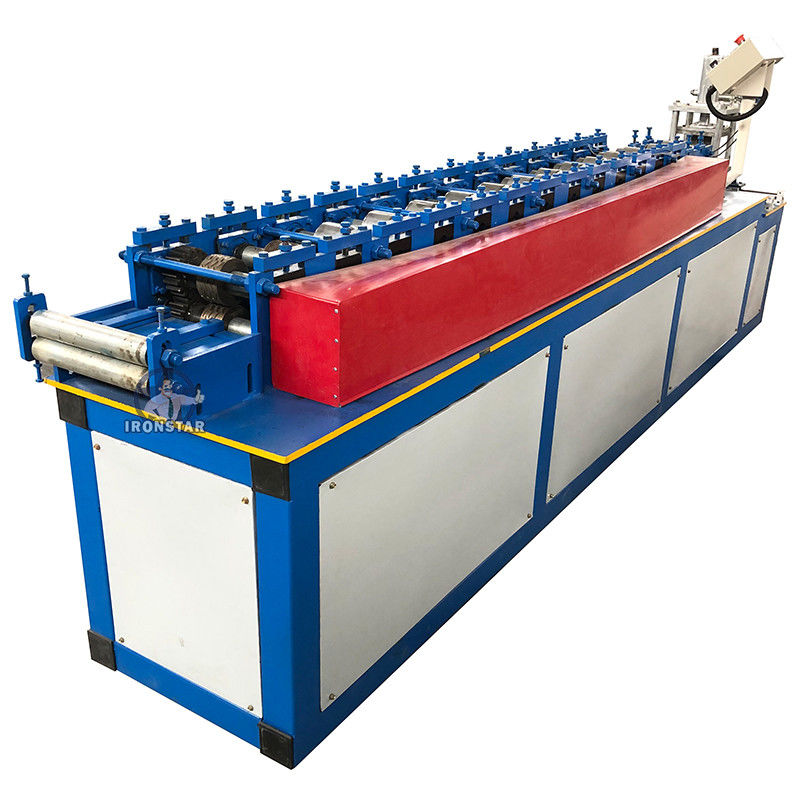

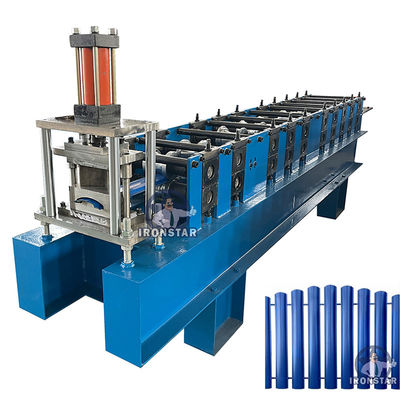

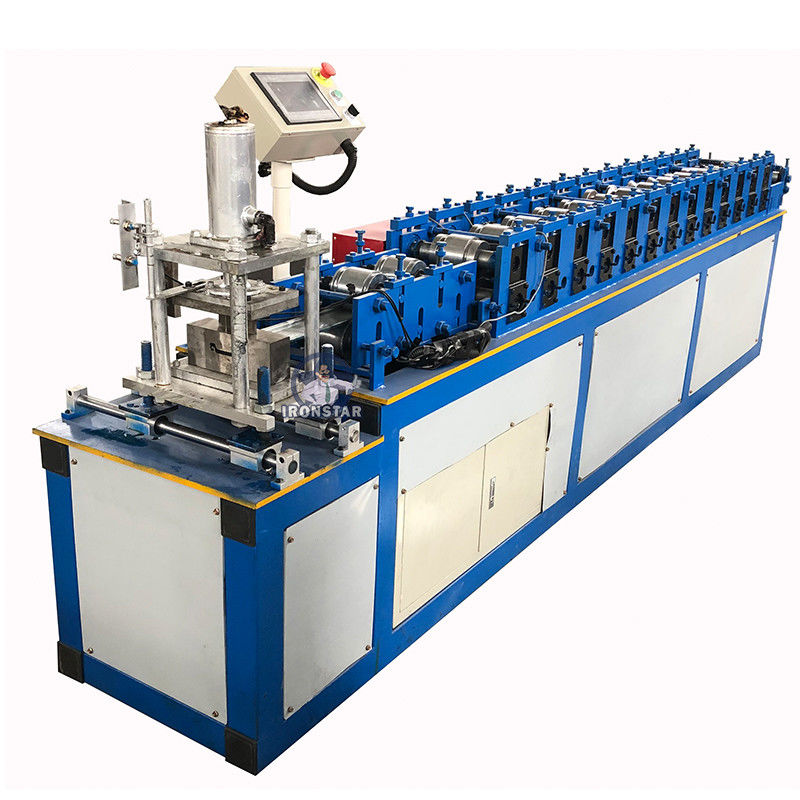

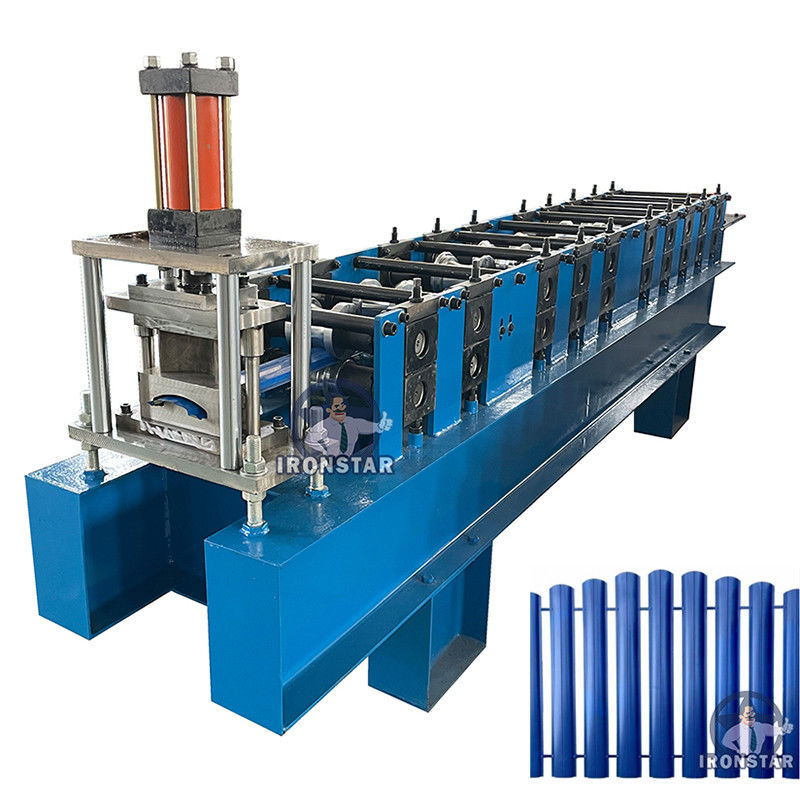

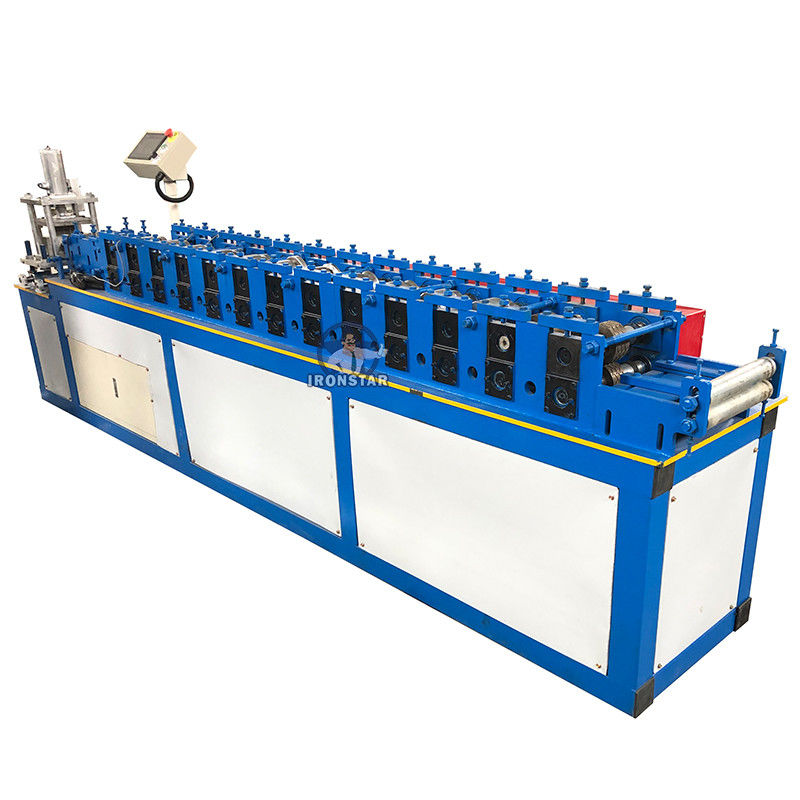

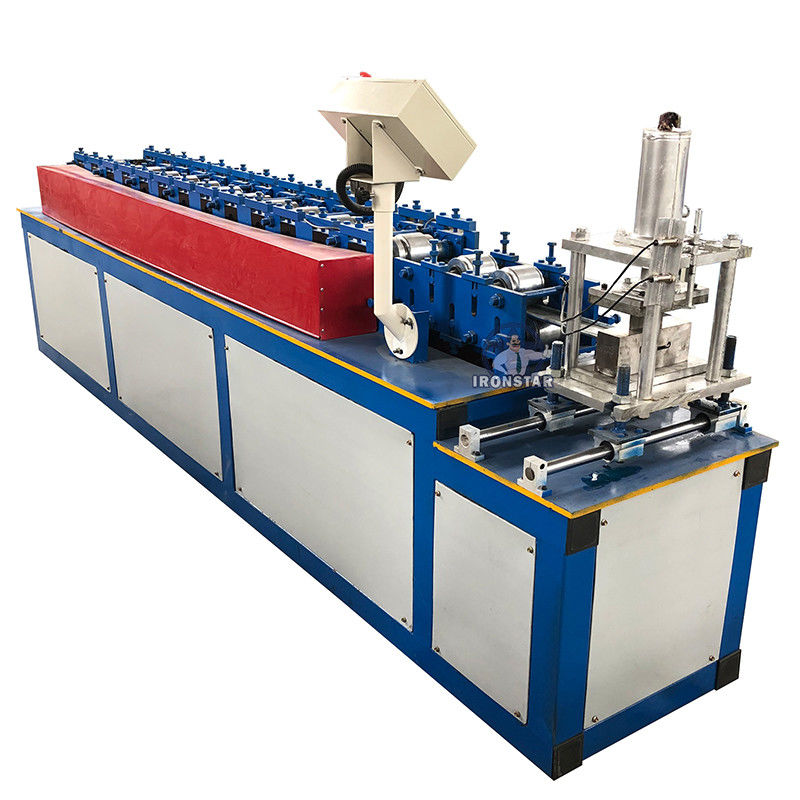

Automatic Punching Holes Metal Fence Roll Forming Machine For US
Description
Fence roll forming machine is a specialized machine used to manufacture various types of fences through the roll forming process. It is designed to efficiently produce high-quality fence panels with consistent dimensions and shapes.
Fence roll forming machine popular sell in many countries, common rolling thickness from 0.3-0.8 mm, material use PPGI material. We sell many such fence machines to America, Kyrgyzstan, Uzbekistan, Tajikistan, Ukraine, Azerbaijan, etc. Size can customize can your need size.

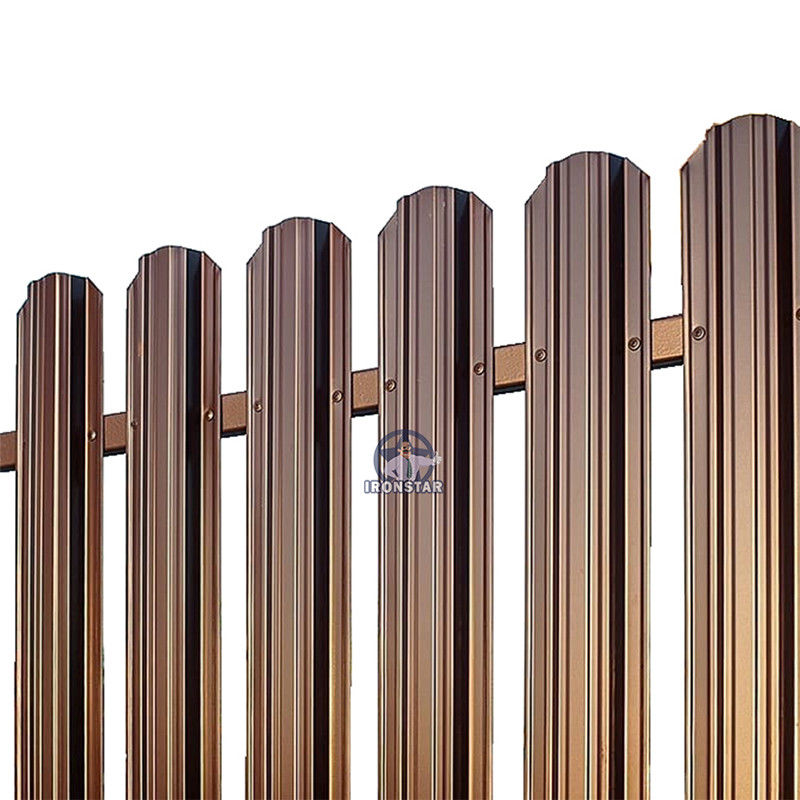

Our office has a stand with samples of finished sections of various metal picket fences. You can choose and immediately order any version of the fence you like. A picket fence section usually has standard dimensions. The most commonly used length is 2 m, width - is 1.25 m. But any width of the gap between the pickets is also possible at the customer's request.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product show
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
DETAL PLC control system
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press and screen touch operate, easy operate
Language: Chinese and English or as acustomer' need
Hydraulic oil into the hydraulic oil tank
Pump motor drives the cutter work
Motor Power: 3KW
Hydraulic oil: 46# Oil
add capacity: oil add 3/4 of box capacity
Oil pressure: 8-10 MPa
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 20 feet container to hold.
